AE50R, AE50RA
AE50RAB
Engine Manual
Doc. No. E1.01.0-E Rev. 6 10-March-2011 Page 18-12

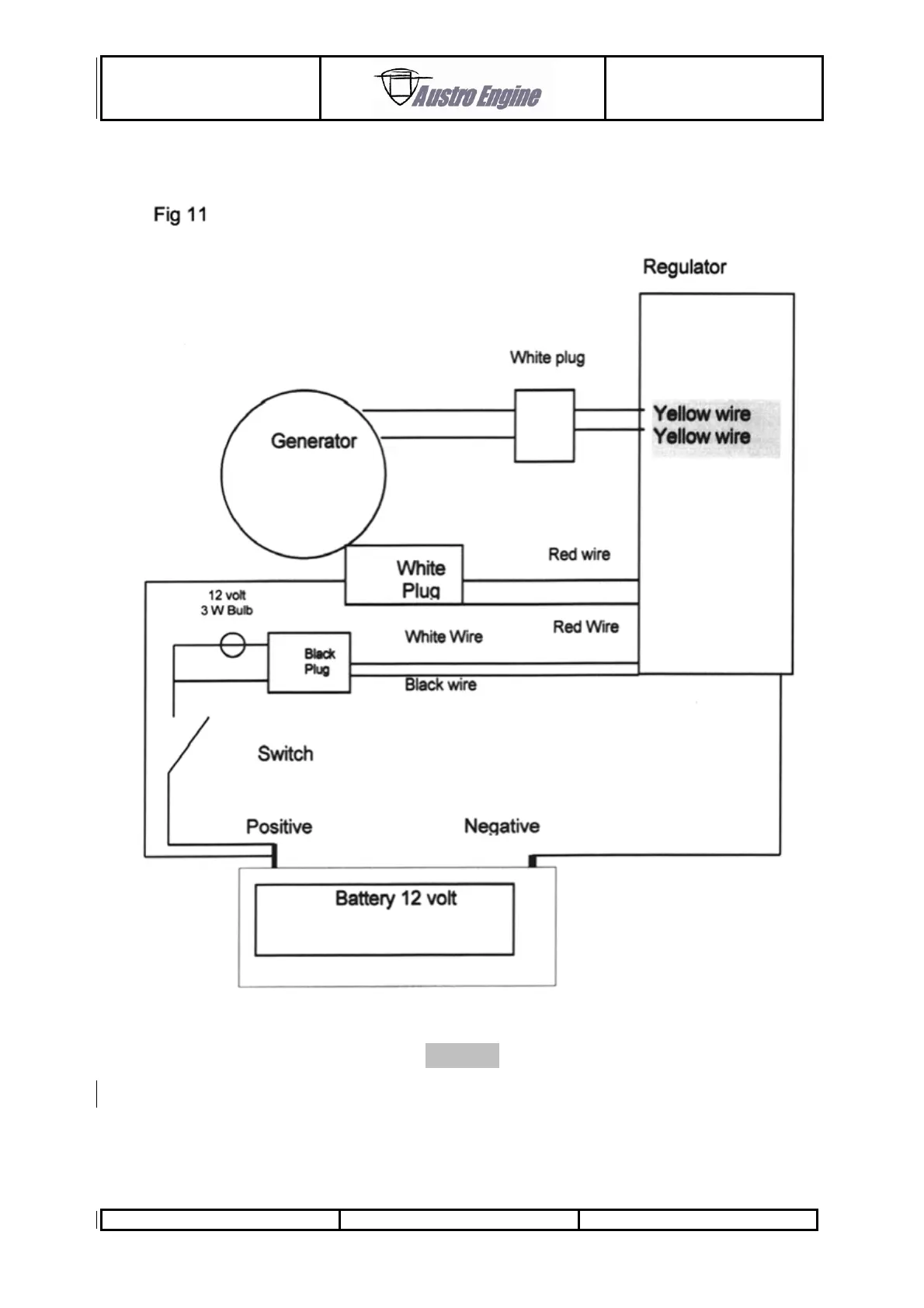

18.7.1 Voltage regulator wiring
NOTE !
Circuit diagram refers to Austro Engine GmbH (part number
E_R2 B 014) plug type CDI boxes. Coil wires at terminal C
ignition box 1 and coil wire B at ignition box 2 have no
connection.
