AUTEC ACrs13-G RGA User Manual

AUTEC - Air series
Technical data 3
LIRGAE00-03
2 Technical data
Power supply .......................................................................................... 45-240V (0.4A)
............................................................................................................... or 12-24V (1A)
Power supply protection fuse ......................................................... 1.6A T 250V (5x20mm)
Digital inputs voltage ........................................................................................... 10-60V
Antenna ............................................................................................. internal or dedicated
STOP contacts rated current .......................................................................... 4A (250V )
STOP contacts protection fuses ....................................................... 4A T 250V (5x20mm)
SAFETY contacts rated current ...................................................................... 4A (250V )
SAFETY contacts protection fuses ................................................... 4A T 250V (5x20mm)
Commands rated current ................................................................................ 6A (250V )
Housing material .......................................................................................... PA 6 (20%fg)
Protection degree ....................................................................................... IP65 (NEMA 4)
Dimensions ................................................................ 123x202x83mm (4.84x7.95x3.23In)
Weight ........................................................................................................... 1.2kg (2.7Lb)

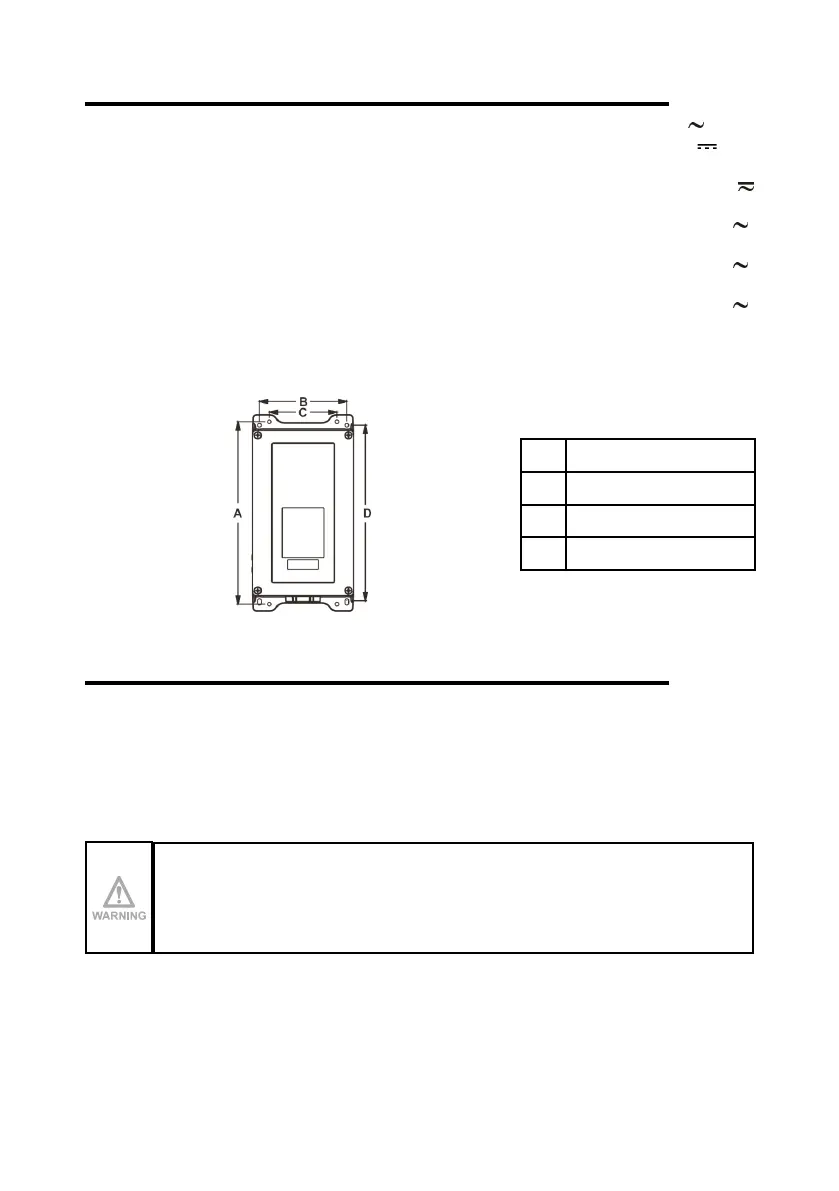

A 222 mm
B 106 mm
C 82 mm
D 213.5 mm
3 Technical data sheet
The technical data sheet contains the wiring diagram showing the connection between the
receiving unit and the machine. It also contains the transmitting unit con󰘰guration and shows
the matching between commands sent and machine functions/movements.
Each technical data sheet must be 󰘰lled in, checked and signed by the installer, who is
responsible for a correct wiring.
A technical data sheet must always be kept toghether with this manual (always keep a copy
of the technical data sheet when it is used for administrative purposes).
The wiring of the receiving unit outputs must always re󰄉ect the wiring
indicated in the technical data sheet.

AUTEC ACrs13-G RGA Specifications

General

Brand	AUTEC
Model	ACrs13-G RGA
Category	Control Unit
Language	English
