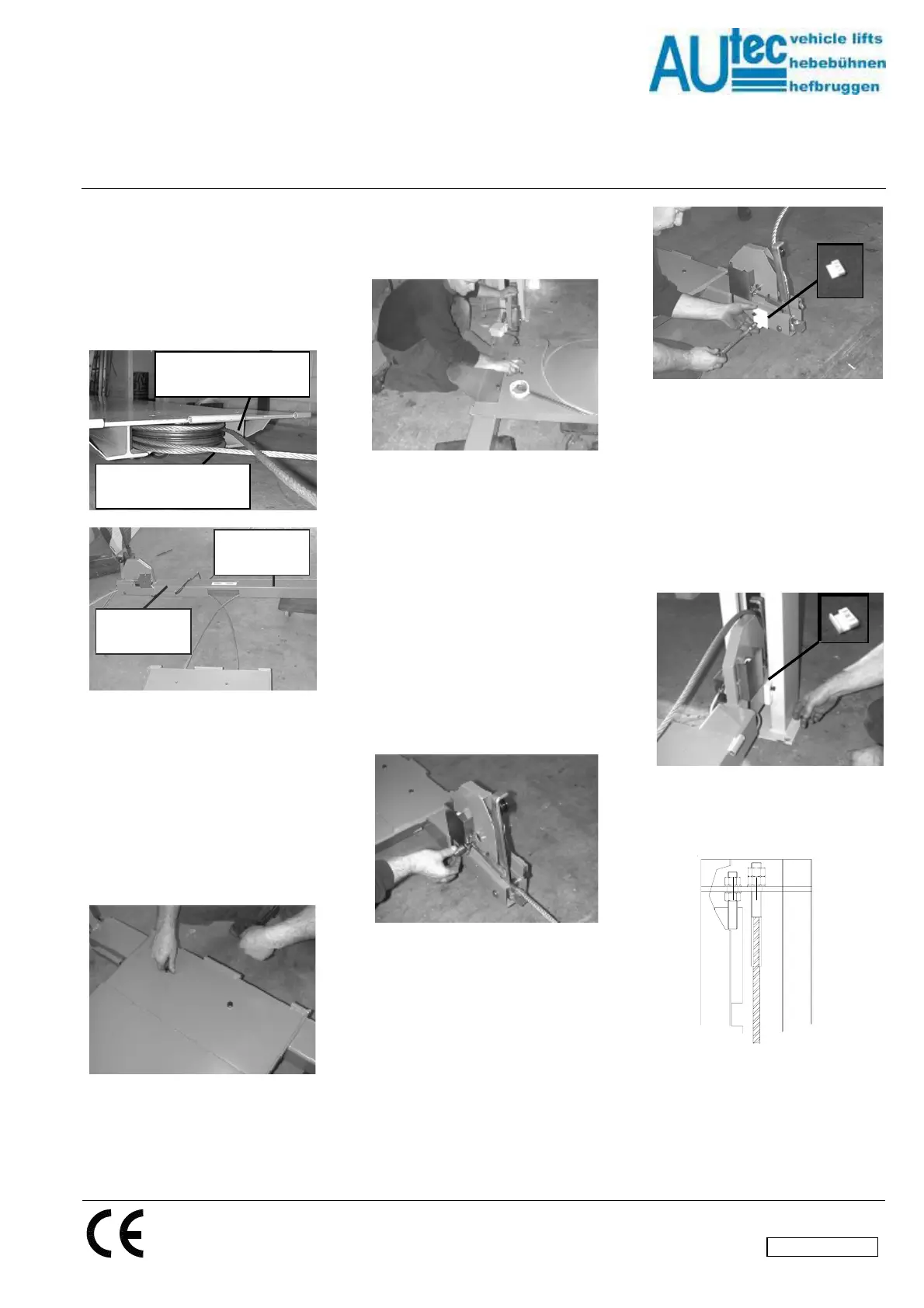

in the 2nd duct should seen from below
pass through the short section
of the
crossbeam. The cable in the 3rd duct
should seen from below pass through
the long section of the crossbeam
(Fig.9). Use for this purpose the string
supplied.
Through short part of the
crossbeam (2
e
groove)
Through long part of the
crossbeam (3
e
groove)
Fig.9
Short part
crossbeam
Long part
crossbeam
Fig.10
Lead 2 electricity cables from the rear
crossbeam
to the front crossbeam. In
doing so lead the cable through the
same passage as the air hose (over the
I-profile).
Secure the crossbeam to the driving
plates with bolts and
turn these hand-
tight (Fig.11).
Fig.11
Now lead the steel cables to the side of
the control unit in the same
way through
the crossbeam as to the non-control
side.
Secure now the protective device on the
fixed driving plate.
Fig.12
Align the riding plates and secure the
bolts.
Connect the air hose that runs through
the
driveway on both sides to the
locking cylinders.
Connect the air hose that emerges from
the crossbeam on the control side
to the
compressed air supply.
Now fit the runners in the crossbeams.
Take care
that the spring rings are fitted
to the bolts to secure the blocking plate
(Fig.13).
Fig.13
Fit the open guidance blocks to the
crossbeams. Take care
that the
assembly bolt is in the centre to allow
for later adjustment. (Fig. 14).
Fig.14
Connect the electrical wiring to the
contact box on the crossbeam.
Place the columns by sliding them
against the crossbeams.
Fit the closed guidance blocks on the
exteriors of the crossbeams (Fig.15).
Fig.15
Now secure the lifting cables in the
column
Fig.16
FITTING THE CONTROL UNIT
Fit the control unit to the column.
Connect the cabling to the column as
detailed in diagram Fig.23
