Dynamic Series
Part A: Description, warnings and instructions
Working
A - 20

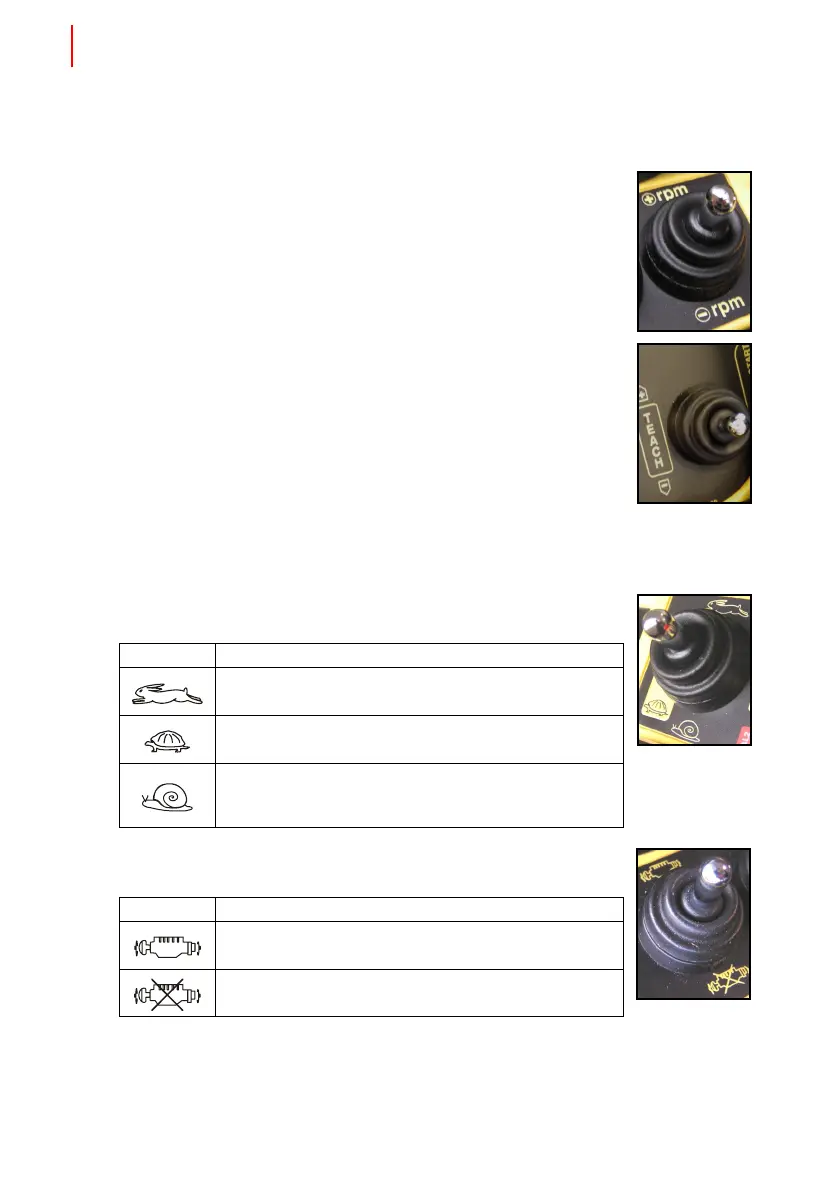

Some of the commands available on the transmitting unit may be those provided
below; in this case, symbols used are generally those given here:
RPM+/- (during normal operation)
This switch increases (rpm +) or decreases (rpm -) the engine
revolutions of the remote controlled machine.
TEACH (during REMOTE SETUP)
This switch is used to calibrate minimum and maximum values
of proportional outputs.
MOVEMENT SPEED SELECTOR
This switch is used to modify the movement speed. According
to the configuration:
- it sets two or three speed levels
- it increases and/or decreases speed.
These three symbols are used:
Symbol Meaning
This symbol indicates the typical machine's speed.
This symbol indicates a reduction in the machine's speed
(the reduction is set by the manufacturer).
This symbol, if present, indicates a further reduction in
the machine's speed (the reduction is set by the manu-
facturer).
ENGINE
This switch is used to switch on and off the engine of the remote
controlled machine.
Symbol Meaning
This symbol indicates that the engine is powered on.
This symbol indicates that the engine is switched off.
