Functional Description
The Bluetooth Diagnostic Interface device package, which includes the unit,
user manual, and a CD with driver program and update agent, comes along
with the MaxiSys
TM
/MaxiSys Mini
TM
tool kit. Please refer to the MaxiSys User
Manual for additional information.

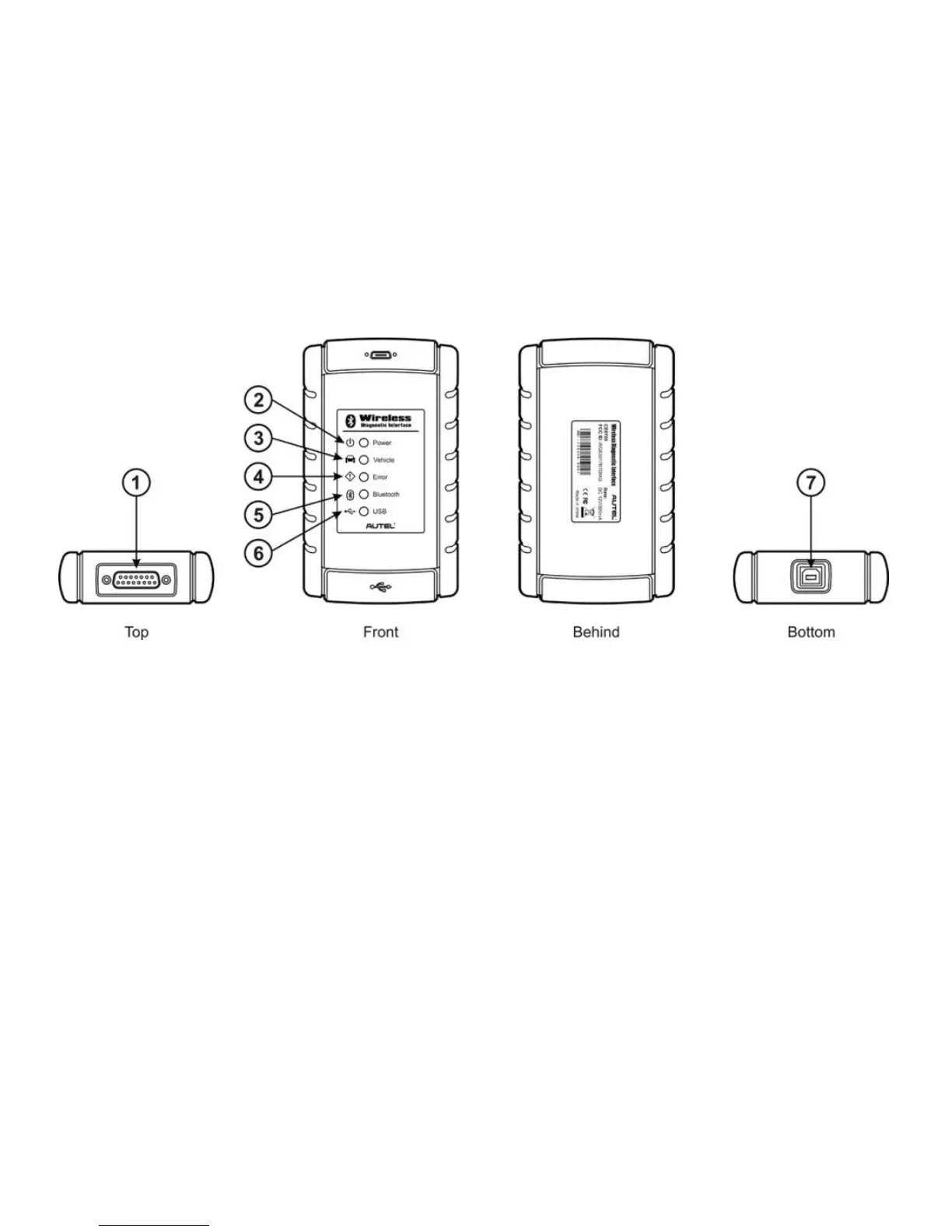

1. Vehicle Data Connector (DB15-Pin)
2. Power LED
3. Vehicle LED
4. Error LED
5. Bluetooth LED
6. USB LED
7. USB Port
Vehicle Data Connector
The vehicle connector connects the device to the vehicle’s DLC via a standard
DB15 – Pin OBD II cable.
