ENGLISH - 18
F-2

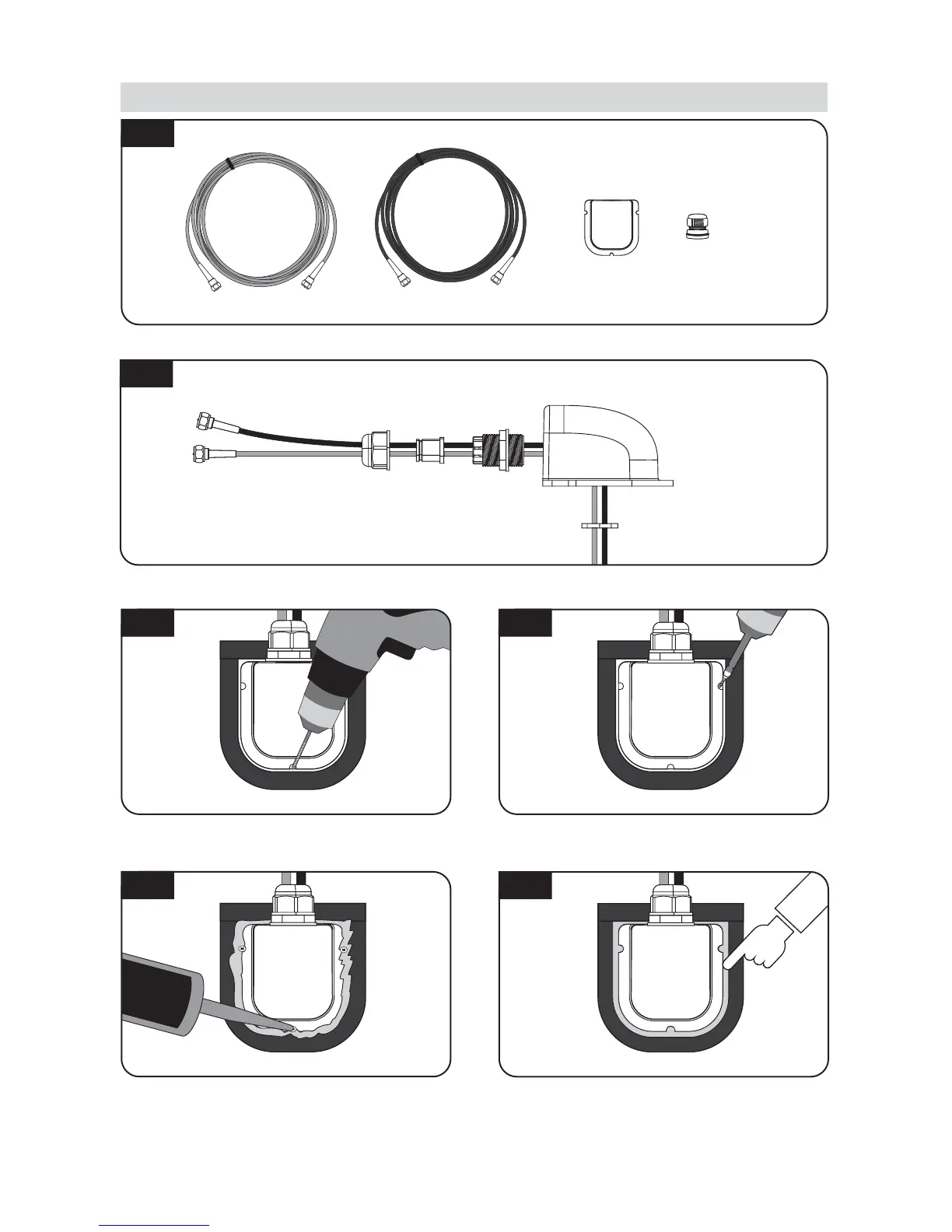

Controller cable, receiver cable, cable holder and gland are required
Place the assembled cable holder inside the tape
marking and drill three(3) of 2mm holes
Fix cable holder on the vehicle roof with
three(3) of M4 x 20 screws on drill holes made
F-4F-3
Apply silicone around cable holder and on the
top of screws for waterproof
Connect cables to the ports of the antenna ,
remove friction tape and tidy silicone before dry
F-6F-5
F-1
Set up required parts as above picture
F. Cable holder installation 2
