Pilot Operating Handbook
Cavalon
SECTION 6
WEIGHT AND BALANCE
AutoGyro_POH_Cavalon 915iS Revision 1.0 – Issue Date 08.MAY.2019 5-2

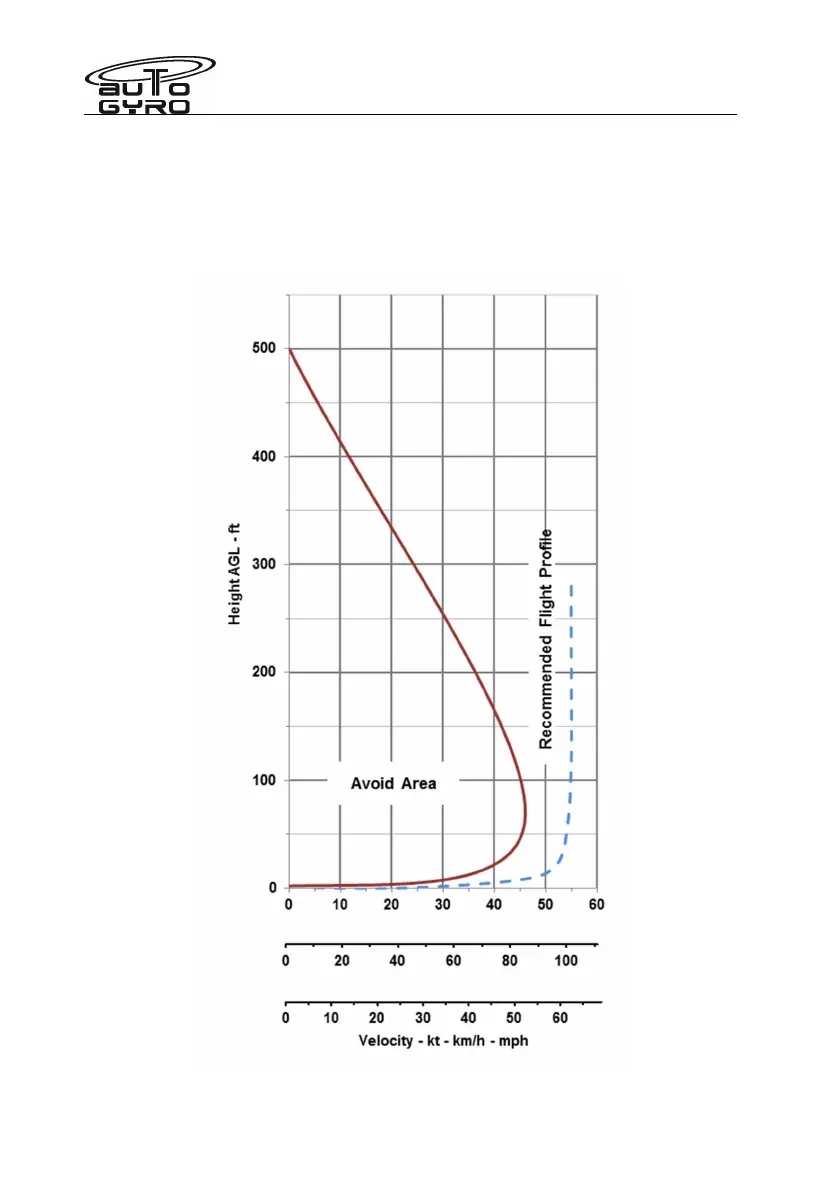

5.3 Height-Velocity Diagram
The H/V diagram indicates combinations of height and speed (avoid area left side of the red
graph) where a safe landing may not be possible in case of an engine failure. Therefore,
operation on the left side of the red line must be avoided.
Take-offs and landings should be conducted according to the recommended flight profile,
provided as blue dashed line.
