AUTOHELM Z219 - PCB Component Lists; Anemometer PCB, Components; Vane PCB, Components; Main PCB, Surface Mount Components, Component Side

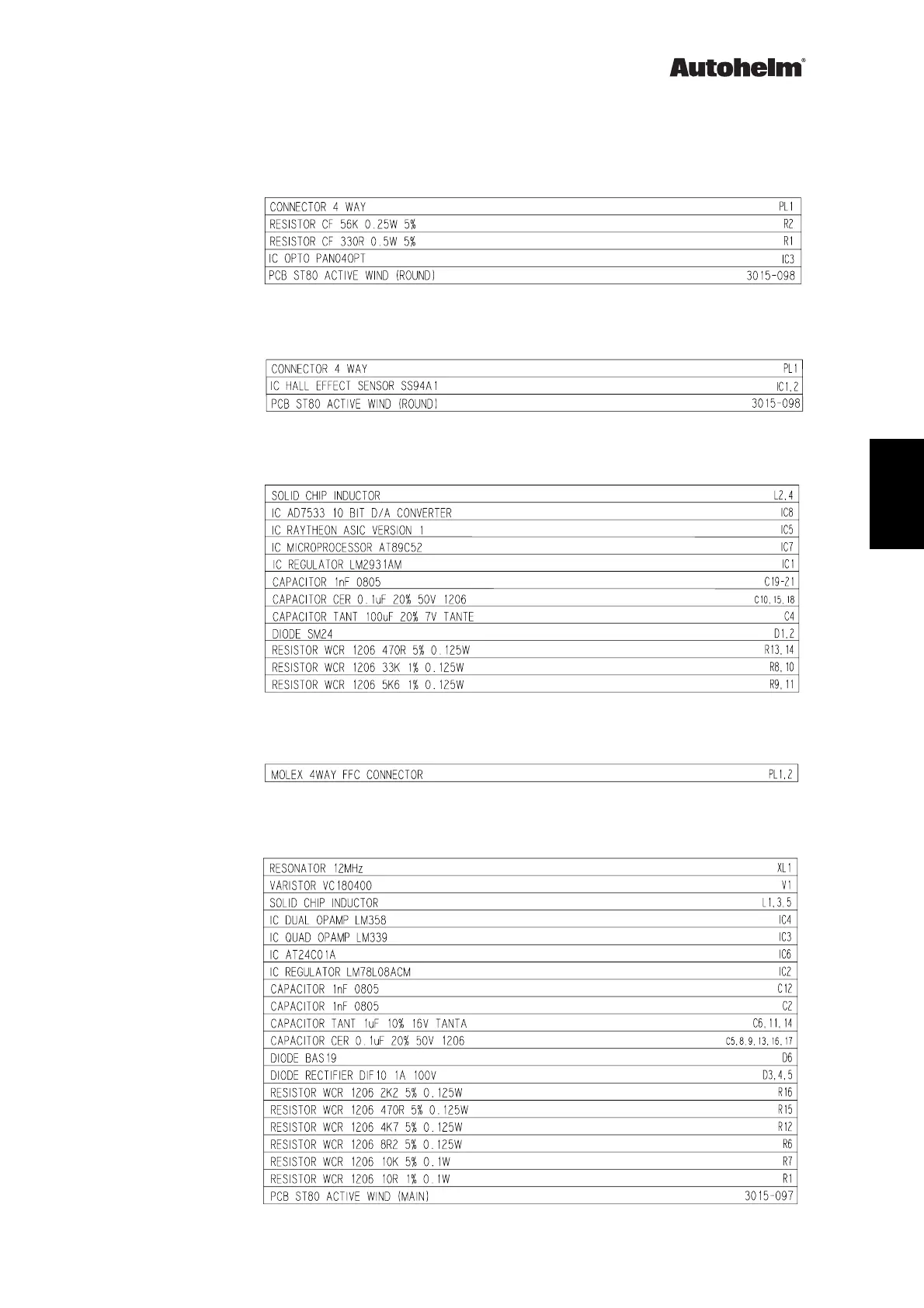

8.2 PCB Component Lists
Anemometer PCB, Components
D3955-1
Taken from Drawing No: 4288-009 Issue: E Date:07.02.96
Vane PCB, Components
D3956-1
Taken from Drawin
g
No: 4288-011 Issue: C Date:07.02.96
Main PCB, Surface Mount Components, component side
D3957-1
Taken from Drawin
g
No: 4288-007 Issue: L Date:10.09.96
Main PCB, Conventional Components, component side
D3958-1
Taken from Drawin
g
No: 4288-007 Issue: L Date:10.09.96
Main PCB, Surface Mount Components, underside
D3959-1
Taken from Drawin
g
No: 4288-007 Issue: L Date:10.09.96
ST80 Active Wind Transducer
ST80 Active Wind Service Procedures 83067-1 19
Z219
