5. Functional Test
5.1 Preliminary Inspection
Before testing, inspect the equipment for physical damage (cracked or
broken case, bent/corroded/burnt connector pins, etc.). Clean off any
grease, dirt or deposits in or on the equipment.
Check for signs of water ingress. Check for damage to the pod PCB, in
particular, overheating on the power supply input pins and PCB tracks.
5.2 Test Equipment
4
D2712-1
+
+
1352
1. Known good ST80 wind head
2. Daisychain cable
3. Power cable
4. 5A Fuse/circuit breaker
5. 12V 5A power supply
6. ST80 Active wind
transducer under test
6

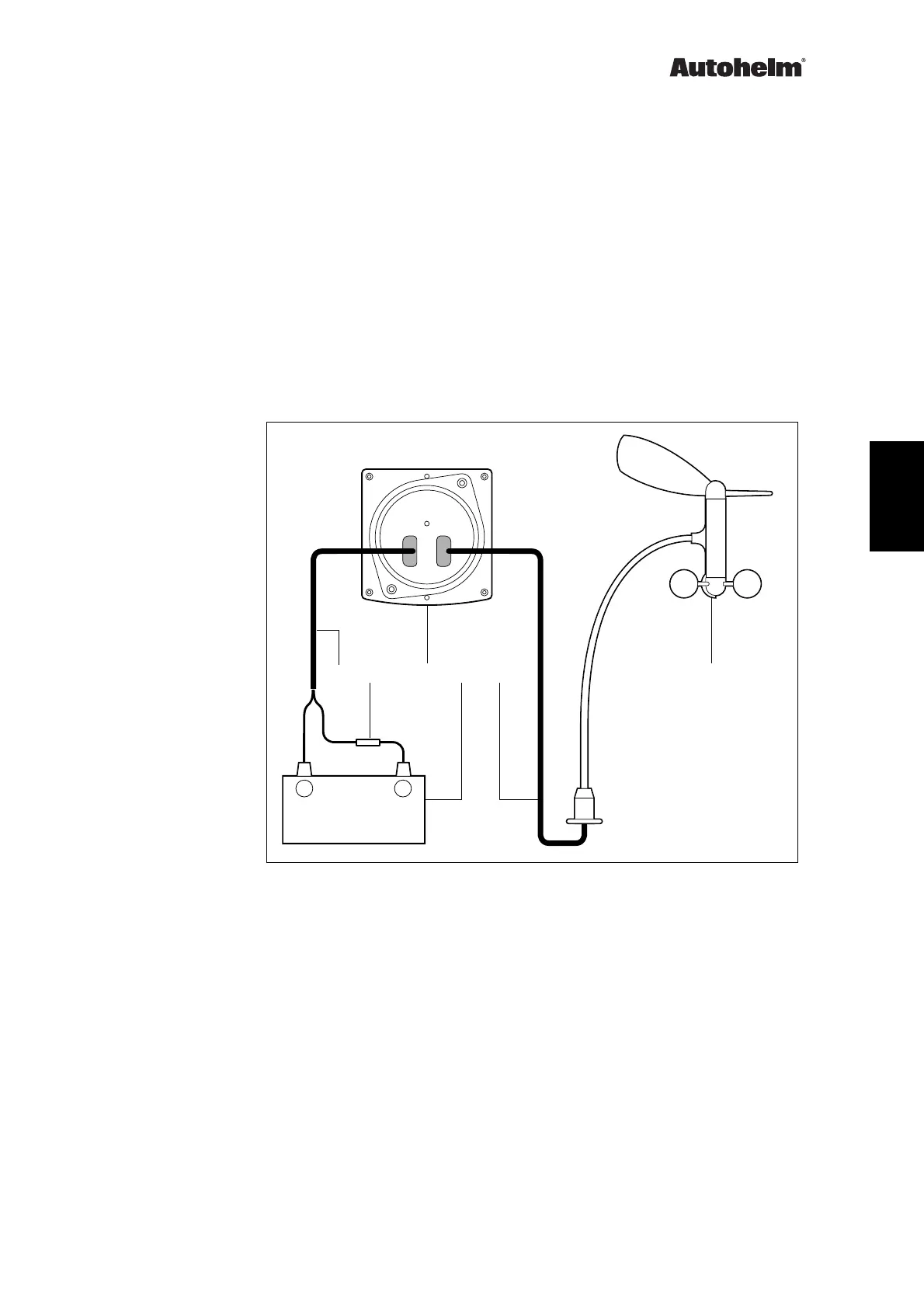

Figure 2 Test Equipment Connection
ST80 Active Wind Transducer
ST80 Active Wind Service Procedures 83067-1 9
