RAM™ 280-F Frozen Fry Dispenser
Copyright © 2011 Automated Equipment LLC All rights reserved.
6
Dispenser Assembly (Models prior to s/n 28FR0802B0249)
Note: Before assembling the Dispenser it is recommended that all parts be cleaned, sanitized,
dry, and handled in a sanitary manner. Refer to the Cleaning Procedures (
Page 12
) for more
information.

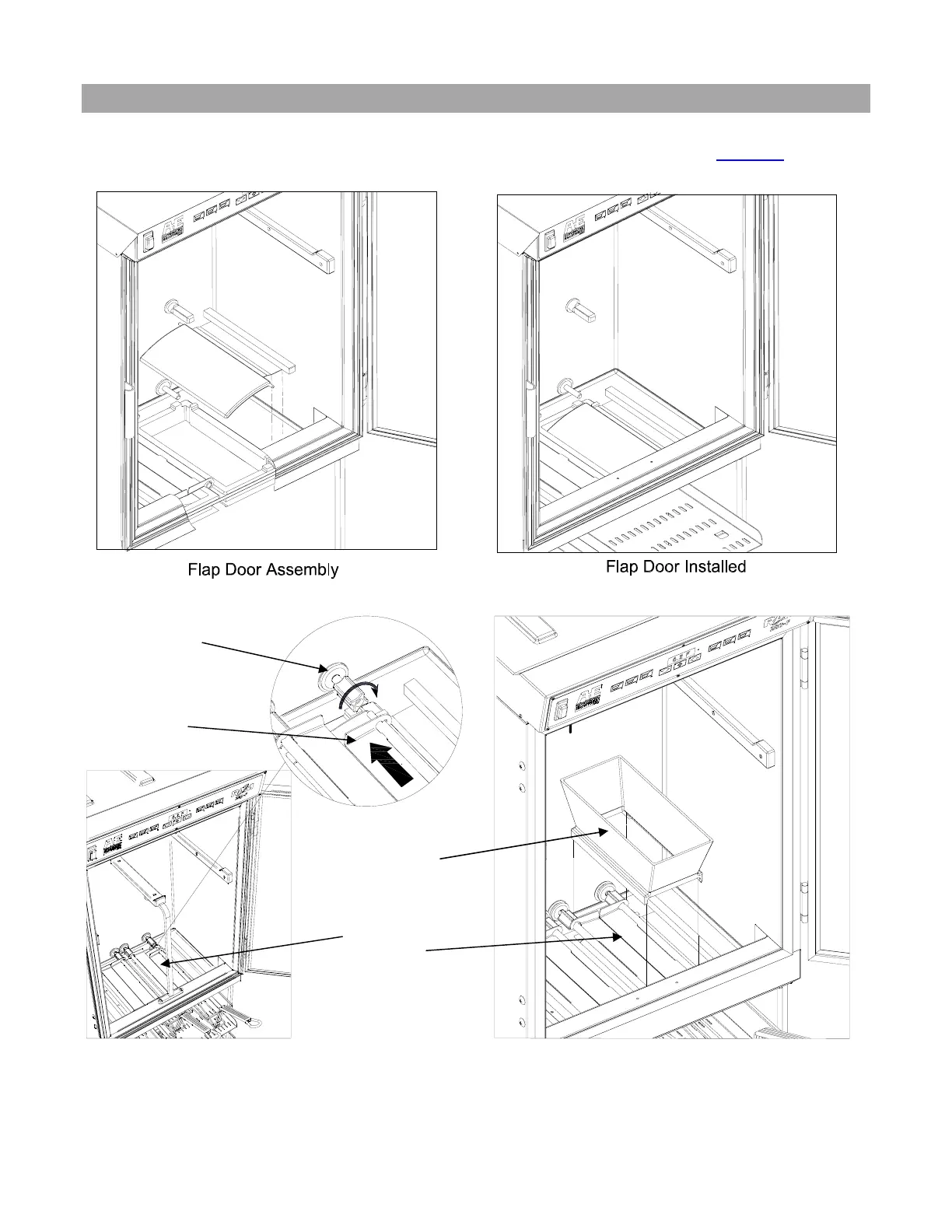

Open the cabinet door. Install the left and right flap door assemblies as shown above.
Accumulator Door Assembly Accumulator Housing Assembly
Install the left and right Accumulator Doors by first inserting the rear of the doors onto the Accumulator
Motor Shafts, then slide the Chucks forward and rotate the chucks clockwise until finger-tight. Install
the left and right Accumulator Housings over the Accumulator Doors.
Accumulator
Motor shaft
with Chuck
Accumulator
Door
Accumulator
Housing
Accumulator
Doors
