Automated Logic U141v+ - Job Start-Up; Job Start-Up for Webctrl; Job Start-Up for Supervision

Revised 8/14/02 • U141v+ 3 © 2002 Automated Logic Corporation
Protection
Metal oxide Varistor (power,
analog inputs, and output relay).
Transient voltage suppressor (analog
output). Zener and opto isolation
protection (communications).
Listed by
PAZX (UL 916).
Job Start-Up
WebCTRL and SuperVision require different
module drivers and Eikon software. The
appropriate module drivers, Eikon for
WebCTRL or Eikon 3.0a or later, and a sample
U-Line GFB can be downloaded from
Automated Logic Corporation’s web site
(http://www.automatedlogic.com). You can
also order a copy of Eikon for WebCTRL or
Eikon on CD through Order Administration.
Job Start-Up for WebCTRL
For a WebCTRL system, you need these items
to properly start up and support U-cards:
• UNI/16 with the DRV_UNI16 module
driver, or UNI/32 with the DRV_UNI32
module driver
• Eikon for WebCTRL
• U-Line Zone GFBs
Job Start-Up for SuperVision
For a SuperVision system, you need these
items to properly start up and support U-
cards:
• UNI/16 with the U1M module driver,
UNI/30 with the U3M module driver,
UNI/32 with the UNM module driver, or
UNI/59 with the U5M module driver
• Eikon 3.0a or later
• U-Line Zone GFBs
If you have InterOp Tools version 3.0, you
must install Eikon 3.0a or the InterOp Tools
Service Pack 1. There is no cost for Eikon
3.0a.

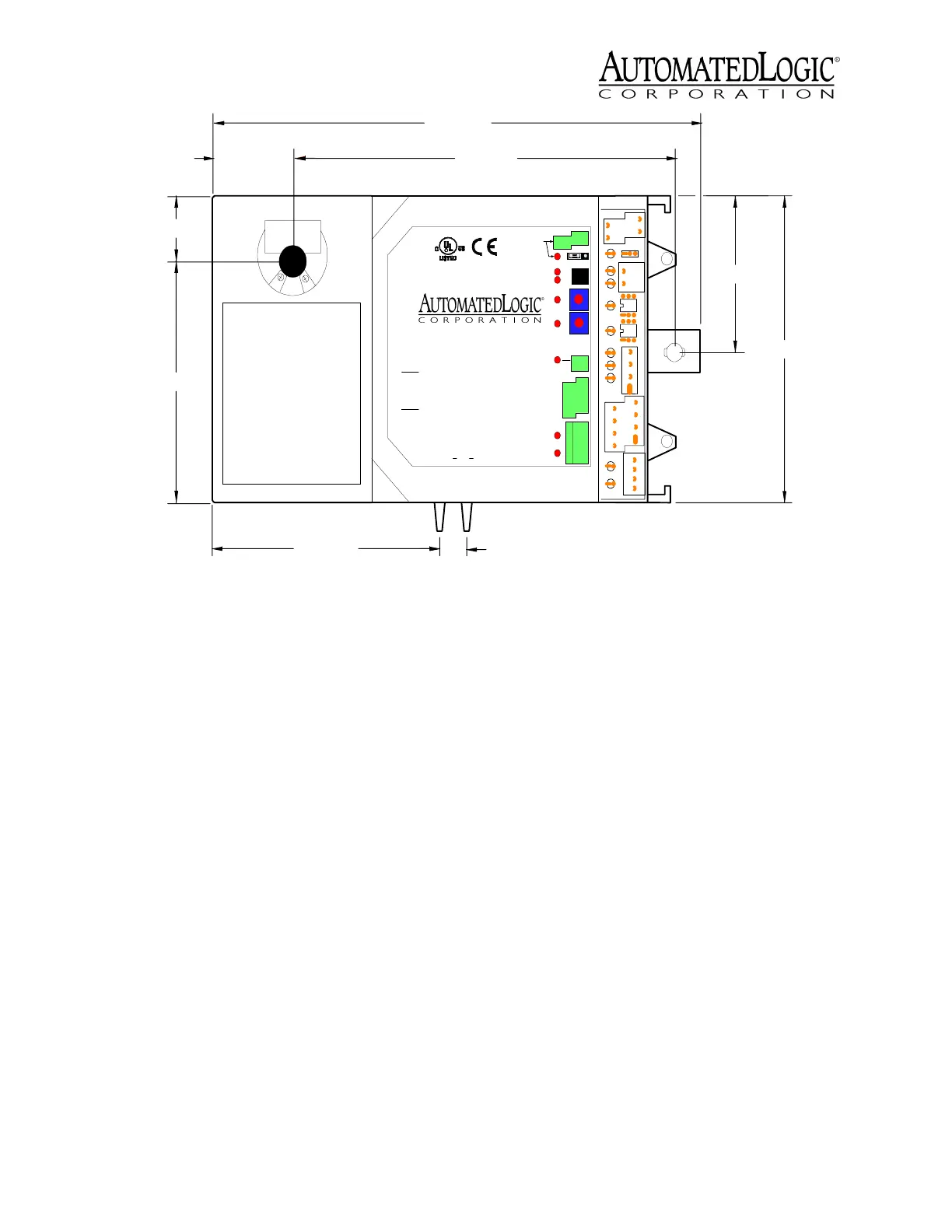

Figure 1. U141v+ Layout and Dimensions
24 Vac
Gnd
24 Vac
Gnd
On Off
O
n
e
s
T
e
n
s
Power
Rx
DO-1
Gnd
+10V
Gnd
AO-1
Gnd
IN-2
Gnd
IN-1
CCW
CW
Motor
Dir.
24 Vac
50-60 Hz
7VA
0.29A
Use Copper
Conductors
Only
Class 2
Management Equipment
TYPE: 003410
E143900
88FO
R
Enclosed Energy
24V Max, 1A Max
Output
Tx
Run
MS/TP
BACnet
TM
HiLo Flow
1
2
Error
Input: 5V Max
AO: 0-10 Vdc
5mA Max
LS5v
Sw
Temp
Gnd
L
o
g
i
S
t
a
t
Interconnec t the O utputs of
Different Class 2 Circuits.
To Reduce The Risk of Fire
or Electric S hock, Do Not
CAUTION:
to be mounted inside
if mounted outside.
Warranty voided
the b uilding envelope.
This product was designed
CAUTION:
R
U141v+
Unet -
Unet +
0
1
3
4
5
2
78
96
0
1
3
4
5
2
78
96
4.9" (12.4 cm)
2.4" (6.1 cm)
9.0" (22.9 cm)
7.1" (18 cm)1.45 [36.8]
1.0" (2.5 cm)
3.9" (9.9 cm)
4.2" (10.7 cm)
0.5" (1.3 cm)
