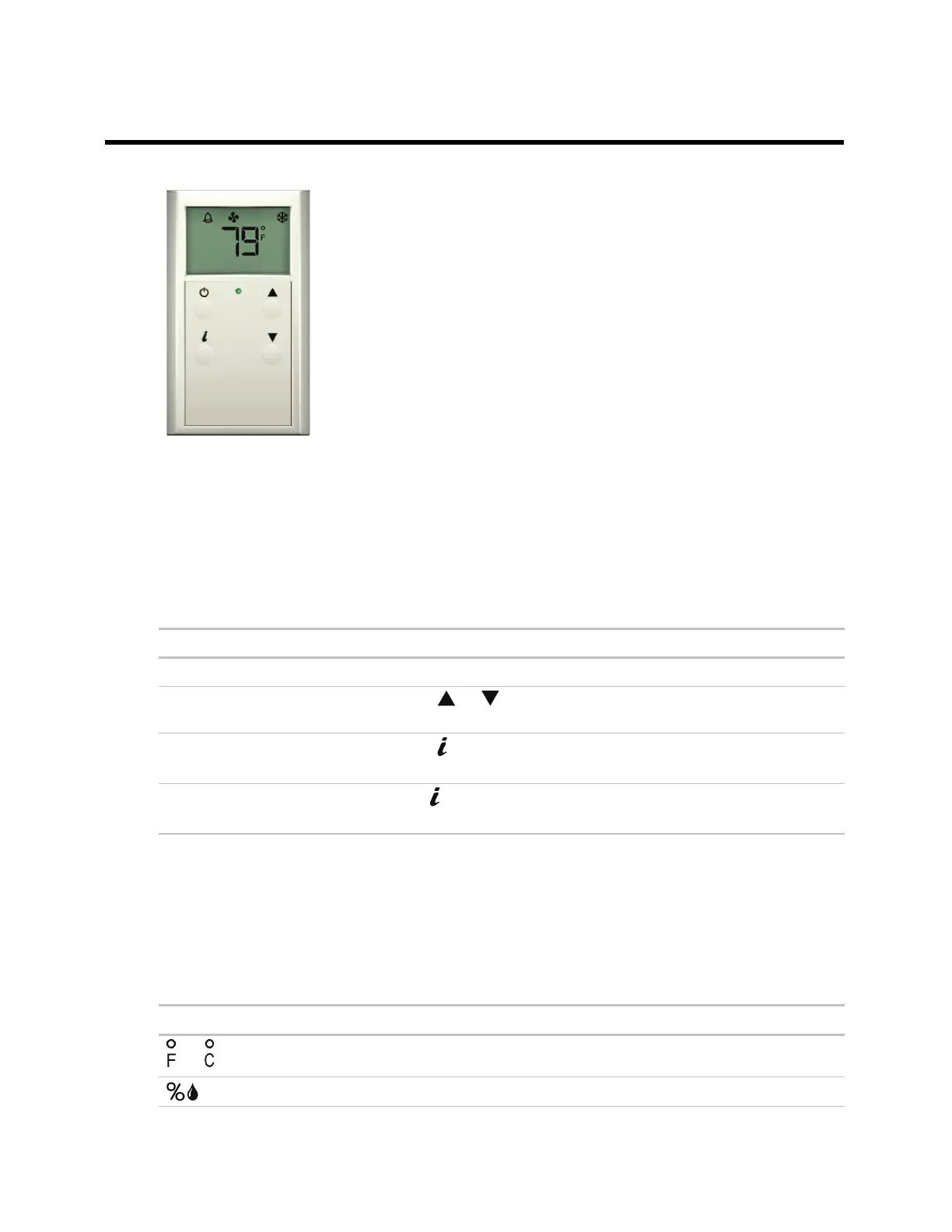

A ZS Pro lets you:
• View information in the display such as zone temperature,
setpoints, outside air temperature, and equipment status
• Make the zone warmer or cooler
• Override the schedule to put the zone in an occupied state
• Edit information if allowed by the control program
• Force the zone to an unoccupied state
• See that the zone is in an occupied state when the green LED is
lit
Navigating the sensor's screens
The control program determines what screens you see, what information is in each screen, and what
you can adjust. The type of sensor also determines what you see. For example, if the sensor reads
temperature, humidity, and CO
2
, the Home screen may cycle through the current values.
Home The sensor has had no user interaction for 5 seconds.
Setpoint adjustment
You press the
or button. See To make the zone warmer or cooler
(page 5).
Information
You press the
button. Tap the button to cycle through various
information.
Diagnostic
You hold the
button for 3 seconds. Tap the button to cycle through
various information to troubleshoot your system.
Reading the display
Depending on the control program and the type of sensor, you may see any of the following items in the
sensor's screens.
or
The temperature is Fahrenheit or Celsius.
The value shown is percent relative humidity.
ZS Sensors ALC Proprietary and Confidential © 2015 Automated Logic Corporation
Rev. 4/27/2015 All rights reserved
3
