p. 24/46
TLxx-MT-EN-04

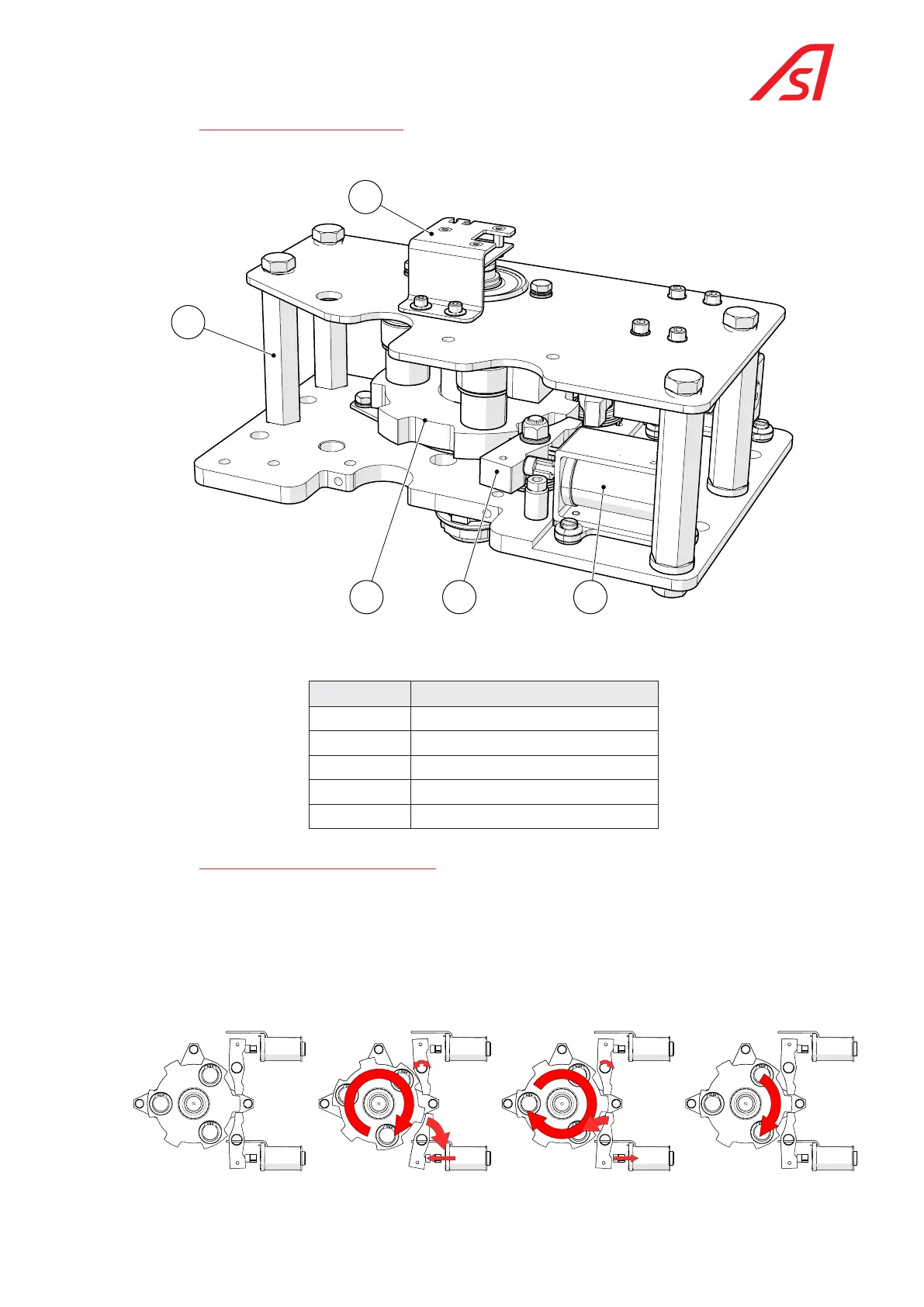

7.2.2. overvieW of the kinematicS
This is an overview of the mechanism, without options:
02
0503 04
01
Fig. 16 View of the kinematic assembly
Reference Description
01 Kinematic chassis
02 Angular sensor assembly
03 Motor tree assembly
04 Lock
05 Electromagnet
7.2.3. locking and unlocking principle
The main axis is integrated with the tray with cut-outs containing the 3 rollers. ( Fig. 17,below)
If the TriLane is in the controlled mode in both directions, both locks are actuated and make it impossible to rotate
in either direction.
Following a passage authorisation, one of the locks pivots on its axis, and rotation can be carried out in one
direction. Halfway through, the electromagnet retracts and the lock, which is fitted with a return spring, will return
to its locking position after a 120° rotation of the turret.
120°
Fig. 17 View of the locking/unlocking assembly
