C2-2040(HS)-GigE Camera Hardware Reference Manual Rev. 1.8 • 53

C2-2040(HS)-GigE Camera Interface

The GigE Interface

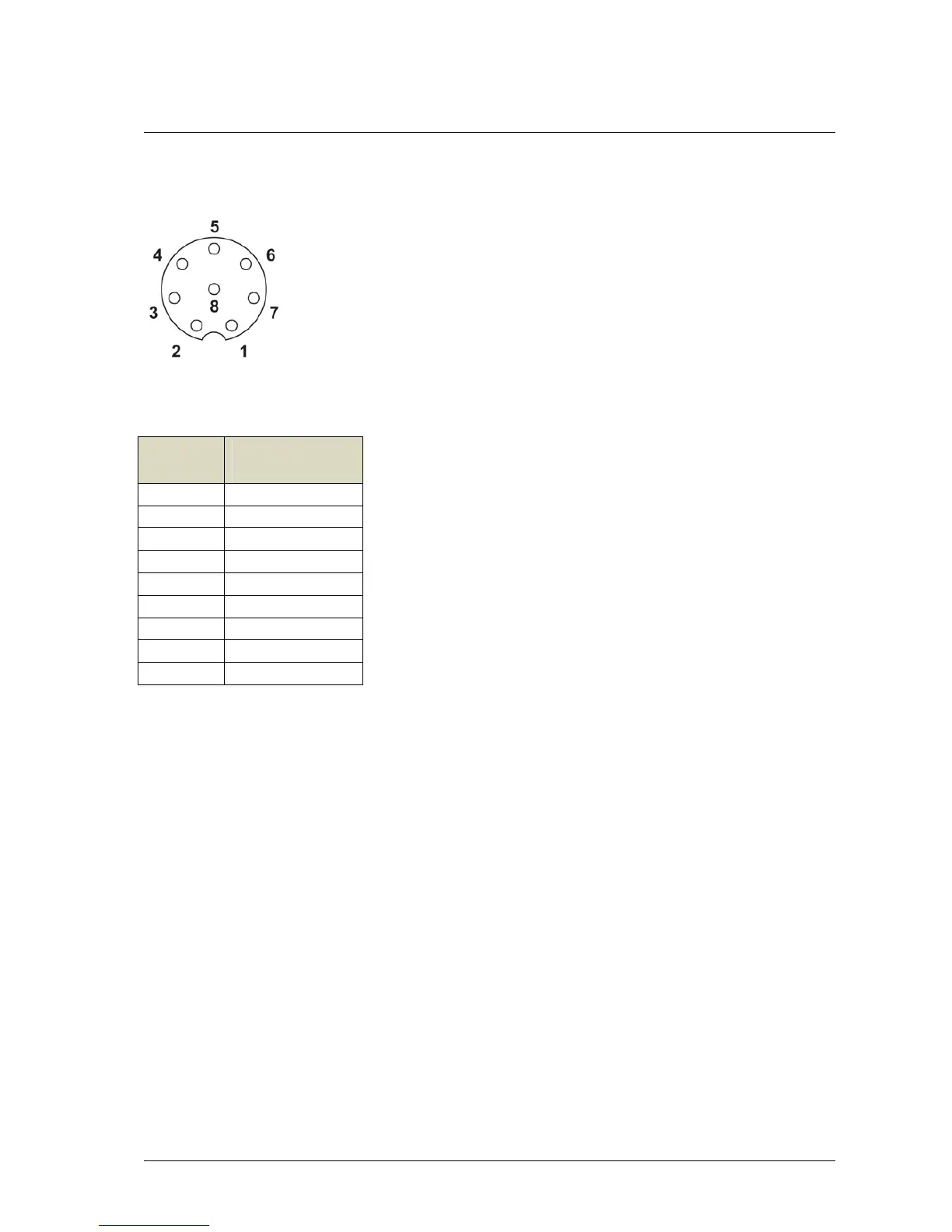

M12 GigE Female Connector Pin Assignment

Pin No. GigE Signal

Name

1 BI_DC-

2 BI_DD+

3 BI_DD-

4 BI_DA-

5 BI_DB+

6 BI_DA+

7 BI_DC+

8 BI_DB-

Shield Shield
