DL06 Micro PLC User Manual, 3rd Edition, Rev. E
5-32
Chapter 5: Standard RLL Instructions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
aaaX
aaaX
ENT
2
C
1
B
ENT
X1
Y2
OUT
Handheld Programmer KeystrokesDirectSOFT32
STR
$
SHFT
8
I
OUT
GX
ENT
2
C
1
B
ENT
X1
Y2
OUT
Handheld Programmer Keystrokes
DirectSOFT32
STRN
SP
SHFT
8
I
OUT
GX
aaaX
aaaX
Operand Data Type DL06 Range
aaa
Inputs X 0–777
DS Implied
HPP Used
DS Implied
HPP Used
DS Implied
HPP Used
DS Implied
HPP Used
DirectSOFT
DirectSOFT

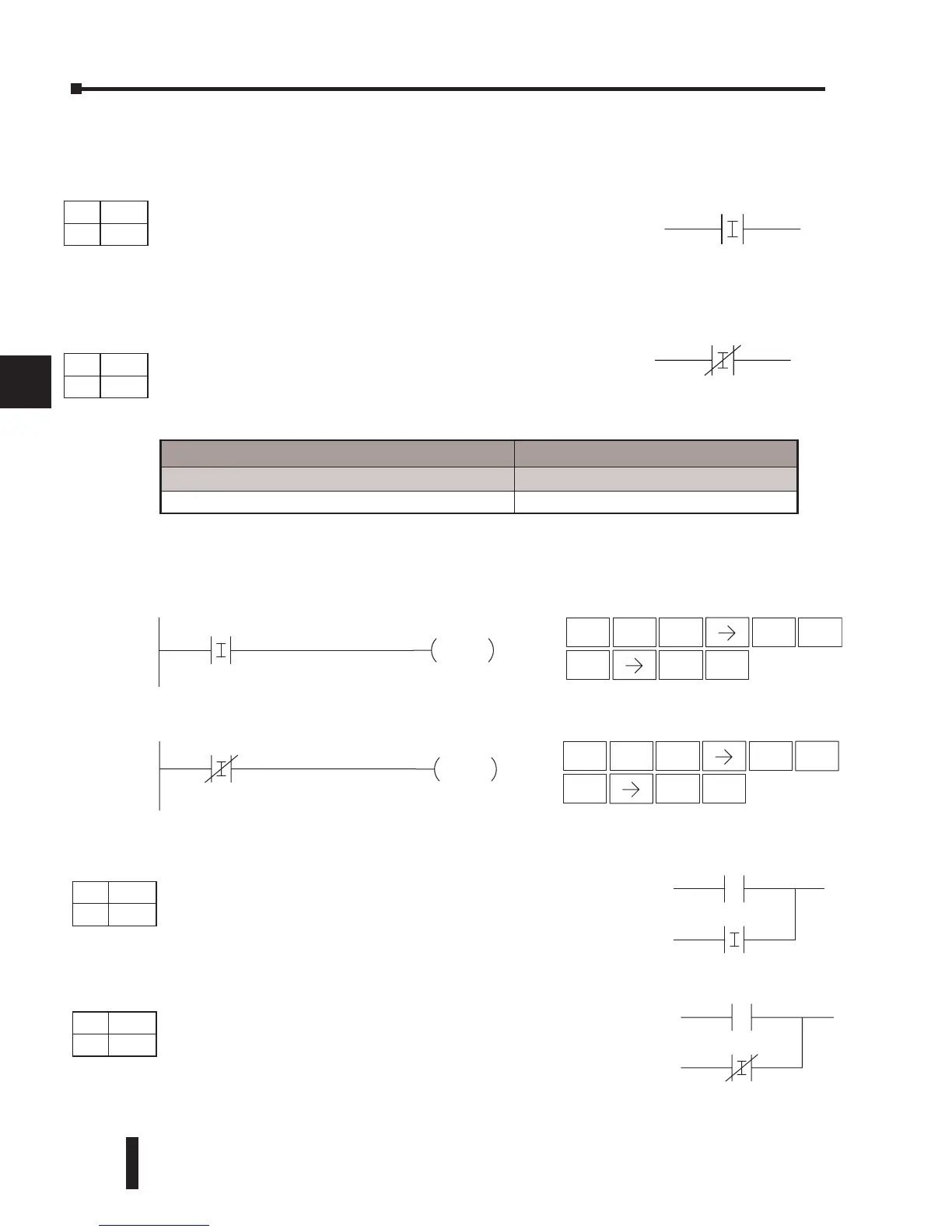

In the following example, when X1 is on, Y2 will energize.
In the following example, when X1 is off, Y2 will energize.
Immediate Instructions
Store Immediate (STRI)
The Store Immediate instruction begins a new rung or
additional branch in a rung. The status of the contact will be
the same as the status of the associated input point at the time
the instruction is executed. The image register is not updated.
Store Not Immediate (STRNI)
The Store Not Immediate instruction begins a new rung or
additional branch in a rung. The status of the contact will be
opposite the status of the associated input point at the time
the instruction is executed. The image register is not updated.
Or Immediate (ORI)
The Or Immediate connects two contacts in parallel. The
status of the contact will be the same as the status of the
associated input point at the time the instruction is executed.
The image register is not updated.
Or Not Immediate (ORNI)
The Or Not Immediate connects two contacts in parallel.
The status of the contact will be opposite the status of the
associated input point at the time the instruction is executed.
The image register is not updated.
