Quick Start
This example is not intended to tell you everything you need to know about programming
and starting up a complex control system. It is only intended to give you an opportunity
to demonstrate to yourself and others the basic steps necessary to power up the PLC and
confirm its operation. Please look for warnings and notes throughout this manual for
important information you will not want to overlook.
Step 1: Unpack the DL06 Equipment

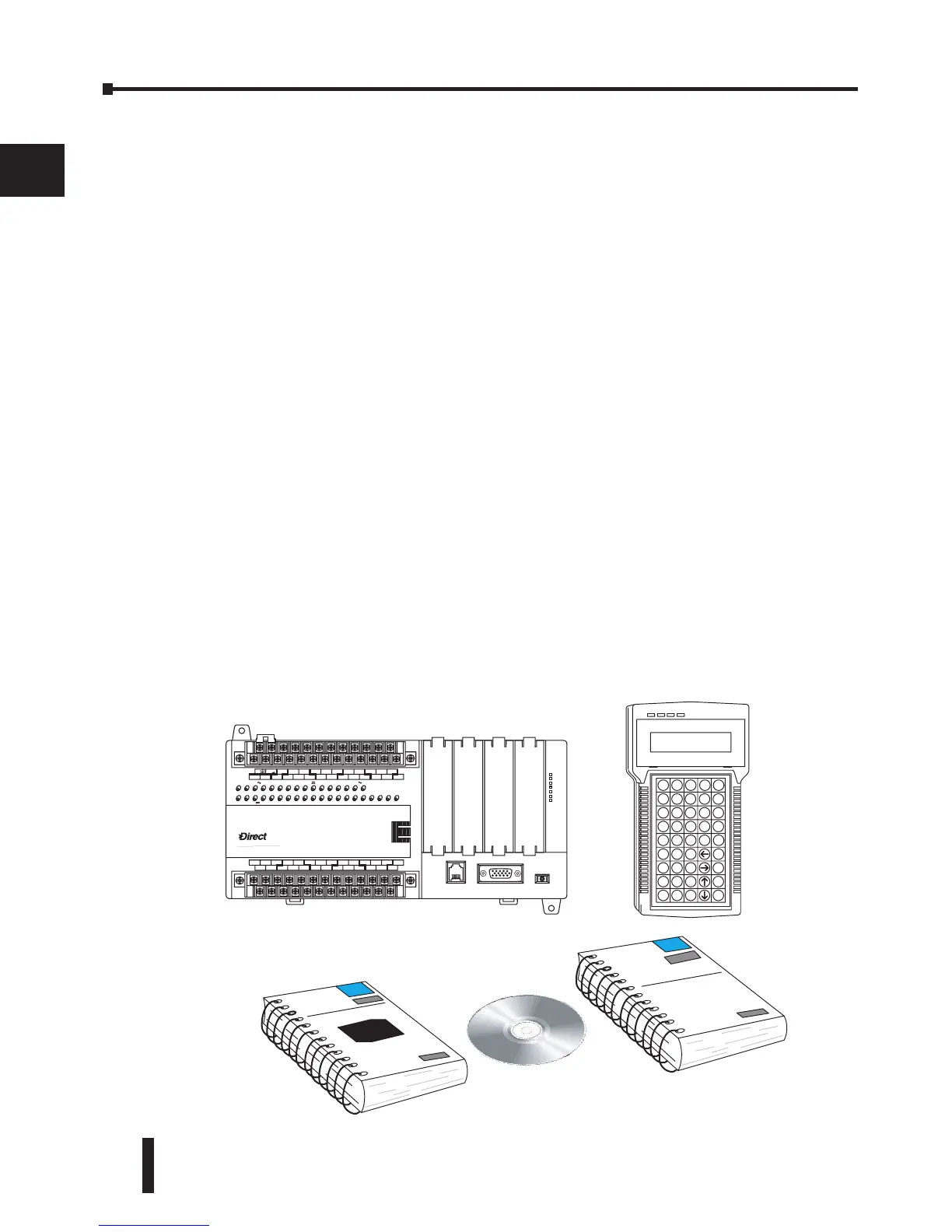

Unpack the DL06 and gather the parts necessary to build this demonstration system. The
recommended components are:
• DL06 Micro PLC
• AC power cord or DC power supply
• Toggle switches (see Step 2 on next page)
• Hook-up wire, 16-22 AWG
• DL06 User Manual (this manual)
• A small screwdriver, 5/8” flat or #1 Philips type
You will need at least one of the following programming options:
• DirectSOFT Programming Software V5.0 or later (PC-DSOFTx), DirectSOFT Programming
Software Manual (included with the software), and a programming cable (D2-DSCBL connects
the DL06 to a personal computer).
or
• D2-HPP Handheld Programmer, firmware version 2.0 or later, (comes with programming
cable). Please purchase Handheld Programmer Manual D2-HPP-M separately.
