DL06 Micro PLC User Manual, 3rd Edition, Rev. E
Chapter 1: Getting Started
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
1-7

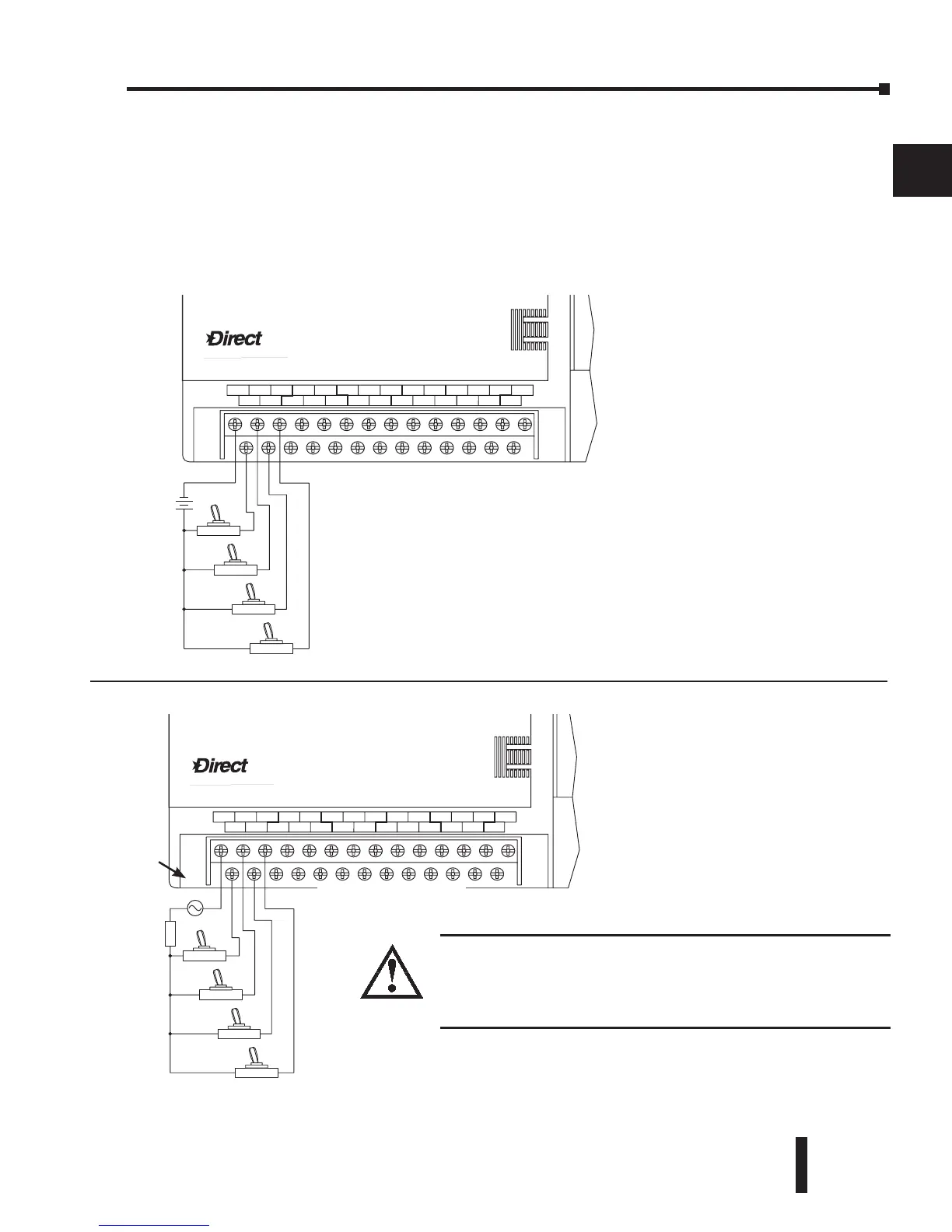

Step 2: Connect Switches to Input Terminals
To proceed with this quick-start exercise or to follow other examples in this manual, you
will need to connect one or more input switches as shown below. If you have DC inputs
on an AC-supply DL06, you can use the auxiliary 24VDC supply on the output terminal
block or other external 12-24VDC power supply. Be sure to follow the instructions in the
accompanying WARNING on this page.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
a
b
c
D
LOGIC
Koyo
06
fuse
C0 C4C2X1 X3 X4 X6 X11 X13 X14 X16 X21 X23 N.C.
C1 C3X2 X5 X7 X10 X12 X15 X17 X20 X22X0 N.C.
AC
(
N
)
24V
0V
+V
C1 C3Y0 Y15Y12Y10 Y17Y7Y5Y2
C0 C2 Y16Y14Y13Y11Y6Y4Y3Y1
LGG
AC
(
L
)
OUTPUT: Sinking Output 6 - 27V 1.0A
INPUT: 12 - 24V 3 - 15mA
Y
X
D0-06DD1
40VA50-60HzPWR: 100-240V
+24 VDC
+
-
LLLL
LLLLLLLL LLLL
0 12345671011121314151617202122 23
12 - 24 VDC
+
-
LOGI
C
Koyo
0
6
C0 C4C2X1 X3 X4 X6 X11 X13 X14 X16 X21X23 N.C.
C1 C3X2 X5 X7 X10X12 X15 X17 X20X22X0
N.C.
fuse
AC
(
N
)
24V
0V
N.C.
C1 C3Y0 Y15Y12Y10Y17Y7Y5Y2
C0 C2 Y16Y14Y13Y11Y6Y4Y3Y1
LG
G
AC
(
L
)
D0-06AA
40VA50-60HzPWR: 100-240VOUTPUT: 17-240V 50 - 60Hz0.5A
Y
X
7 - 15mAINPUT: 90 - 120V
01 23456710 11 12 13 14 15 16 17 20 21 22
23
fuse
WARNING: Remove power and unplug the DL06 when wiring
the switches. Use only UL-approved switches rated for at
least 250VAC, 1A for AC inputs. Firmly mount the switches
before using.
D0-06AA and D0-06AR
AC input only
D0-06DA, D0-06DD1,
D0-06DD2, D0-06DR,
D0-DD1-D, and D0-06DR1-D
DC Input
Toggle Switches
UL Listed
Toggle Switches
UL Listed
90 - 120 VAC
