Embedding date and/or time variables
The date and/or time can be embedded in
the displayed text by using the variables
listed in the table below. These variables
can be included in the LCD message field
of the LCD dialog. In the example, the time
variable (12 hour format) is embedded by
adding _time:12. This time format uses a
maximum of seven character spaces. The

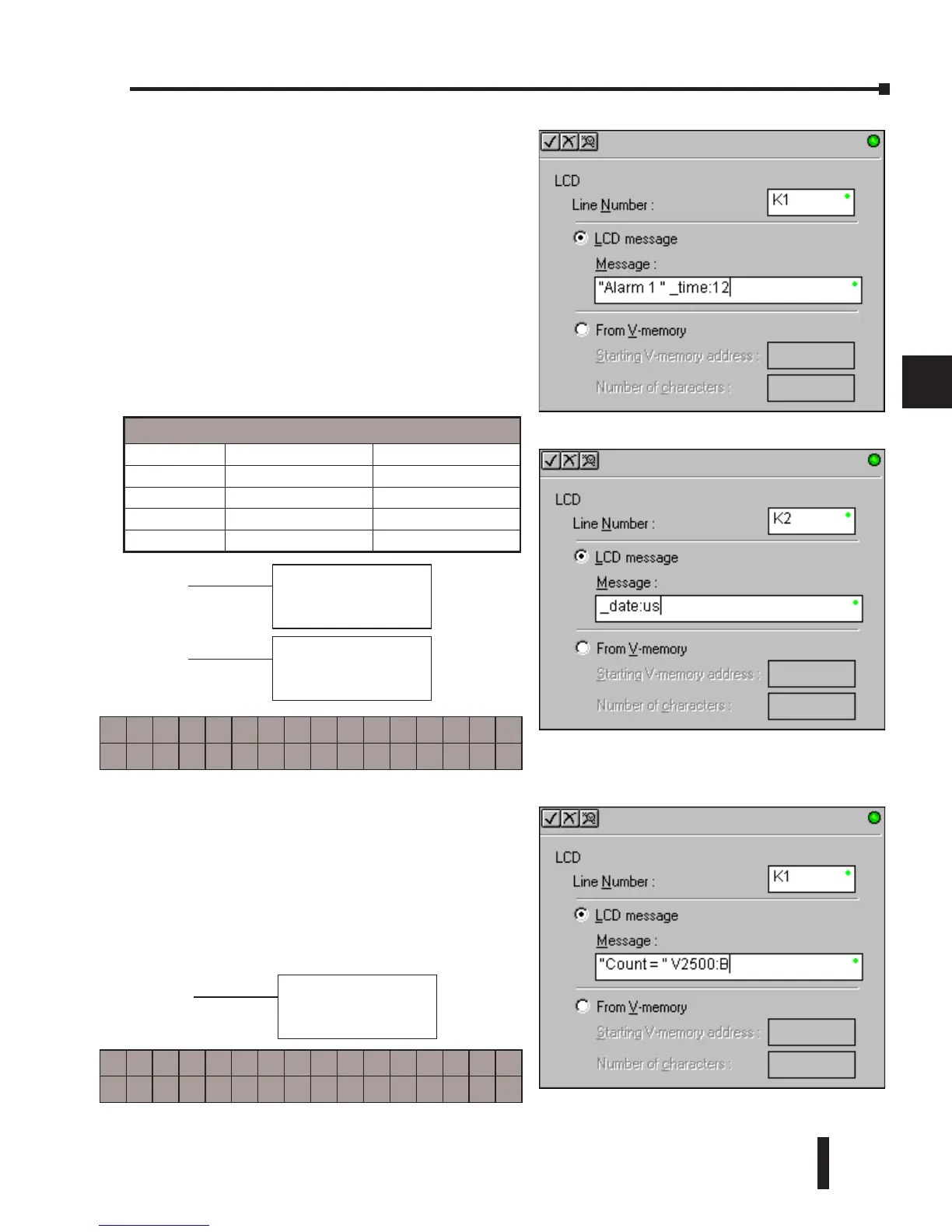

second dialog creates an instruction that
prints the date on the second line of the
display, when enabled.
A l a r m 1 1 1 : 2 1 P M
0 5 - 0 8 - 0 2
Date and Time Variables and Formats
_date:us US format MM/DD/YY
_date:e European format DD/MM/YY
_date:a Asian format YY/MM/DD
_time:12 12 hour format HH:MMAM/PM
_time:24 24 hour format HH:MM:SS
_date:us
"Alarm 1 "
LCD
Line Number:
K1
LCD
Line Number:
K2
_time:12
Embedding V-memory data
Any V-memory data can be displayed in
any one of six available data formats. An
example appears to the right. A list of data
formats and modifiers is on the next page.
Note that different data formats require
differing numbers of character positions
on the display.
"Count = " V2500:B
LCD
Line Number:
K1
C o u n t = 0 4 1 2
