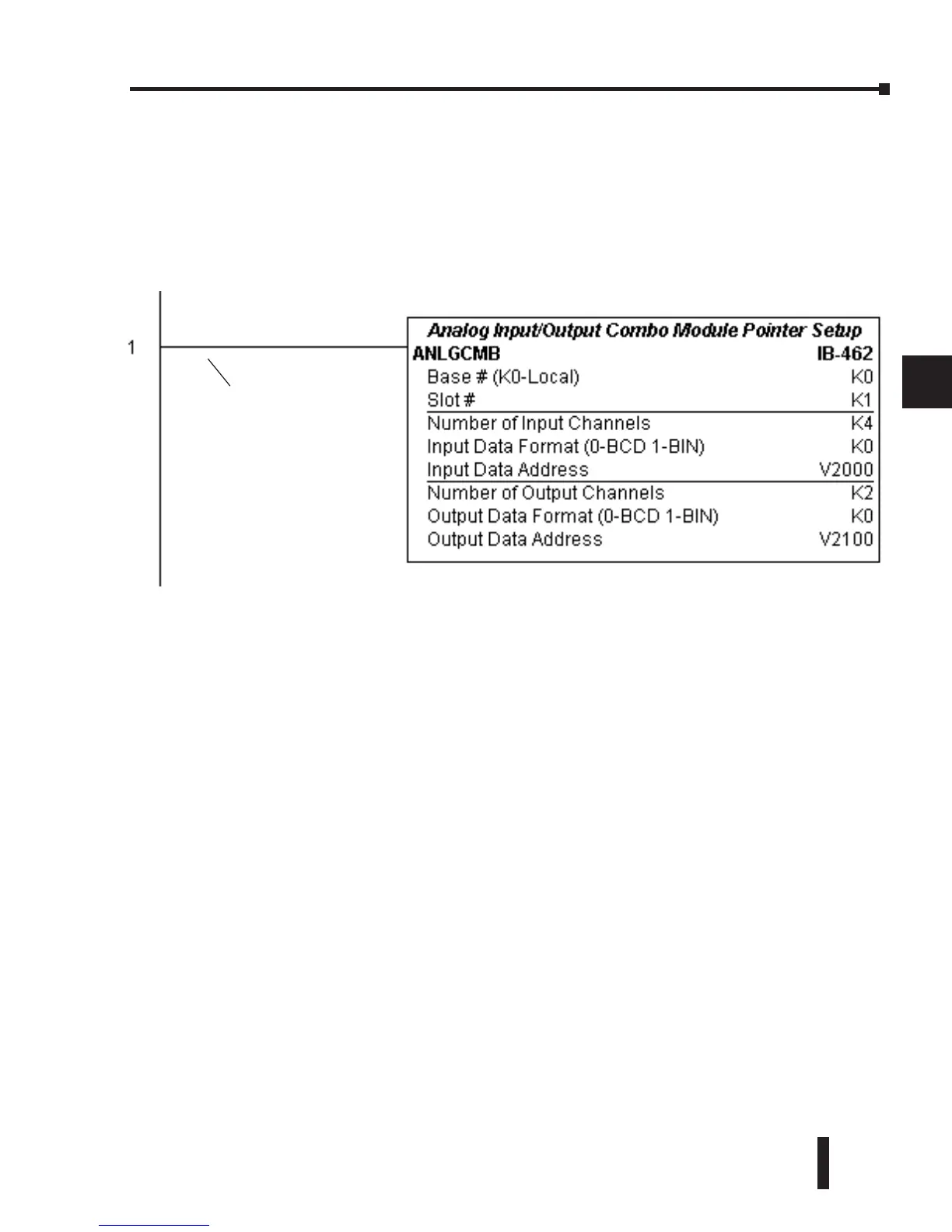

ANLGCMB Example
In the following example, the ANLGCMB instruction is used to setup the pointer method for
an analog I/O combination module that is installed in option slot 2. Four input channels are
enabled and the analog data will be written to V2000 - V2003 in BCD format. Two output
channels are enabled and the analog values will be read from V2100 - V2101 in BCD format.
Permissive contacts or input
logic cannot be used with this
instruction.
To Next Page
