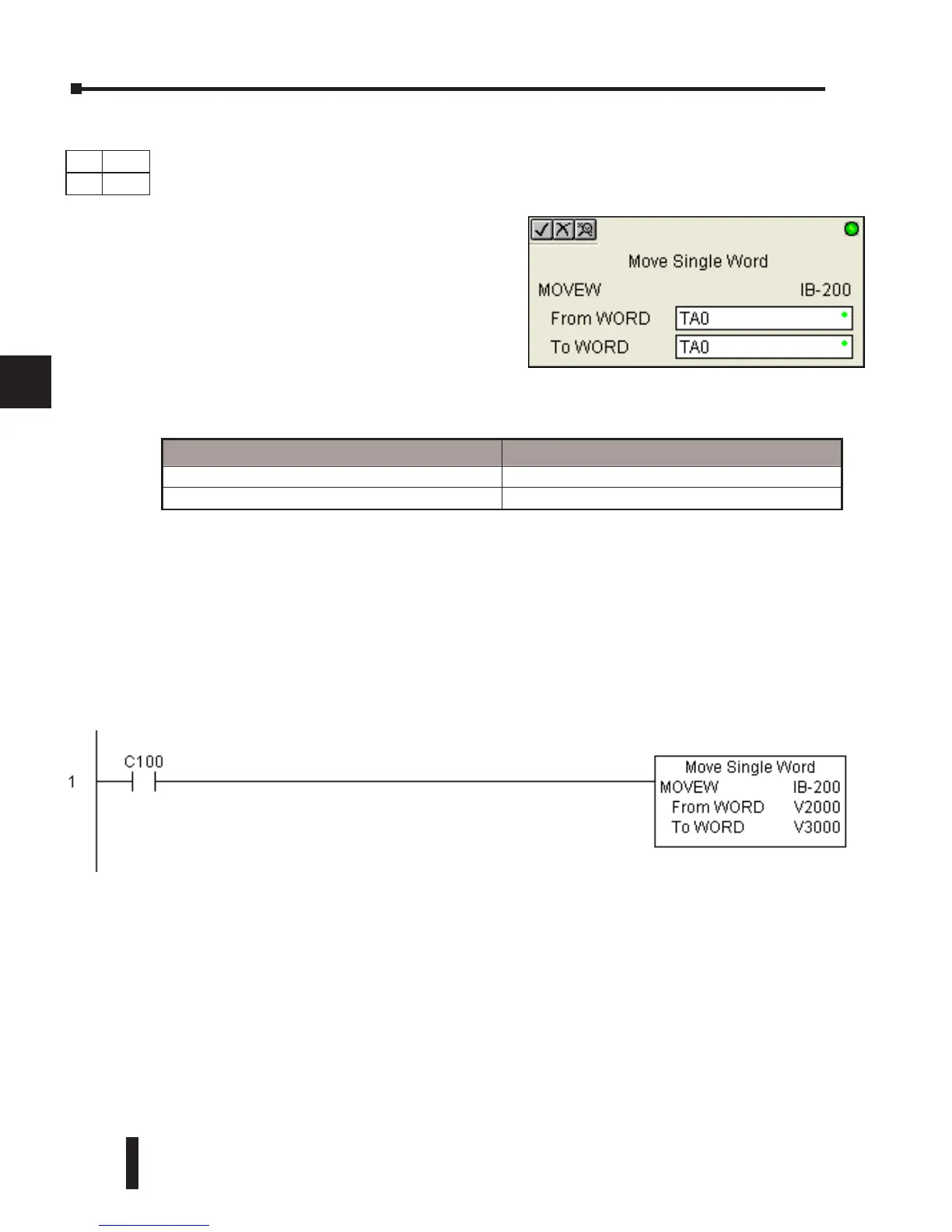

Move Single Word (MOVEW) (IB-200)
Move Single Word moves (copies) a word to a memory location directly or indirectly via a
pointer, either as a HEX constant, from a memory location, or indirectly through a pointer
MOVEW Parameters
• From WORD: specifies the word that will be
moved to another location
• To WORD: specifies the location where the
“From WORD” will be move to
MOVEW Example
In the following example, the MOVEW instruction is used to move 16-bits of data from
V2000 to V3000 when C100 turns on.
Parameter DL06 Range
From WORD V,P,K K0-FFFF; See DL06 V-memory map - Data Words
To WORD V,P See DL06 V-memory map - Data Words
DS Used
HPP
N/A
