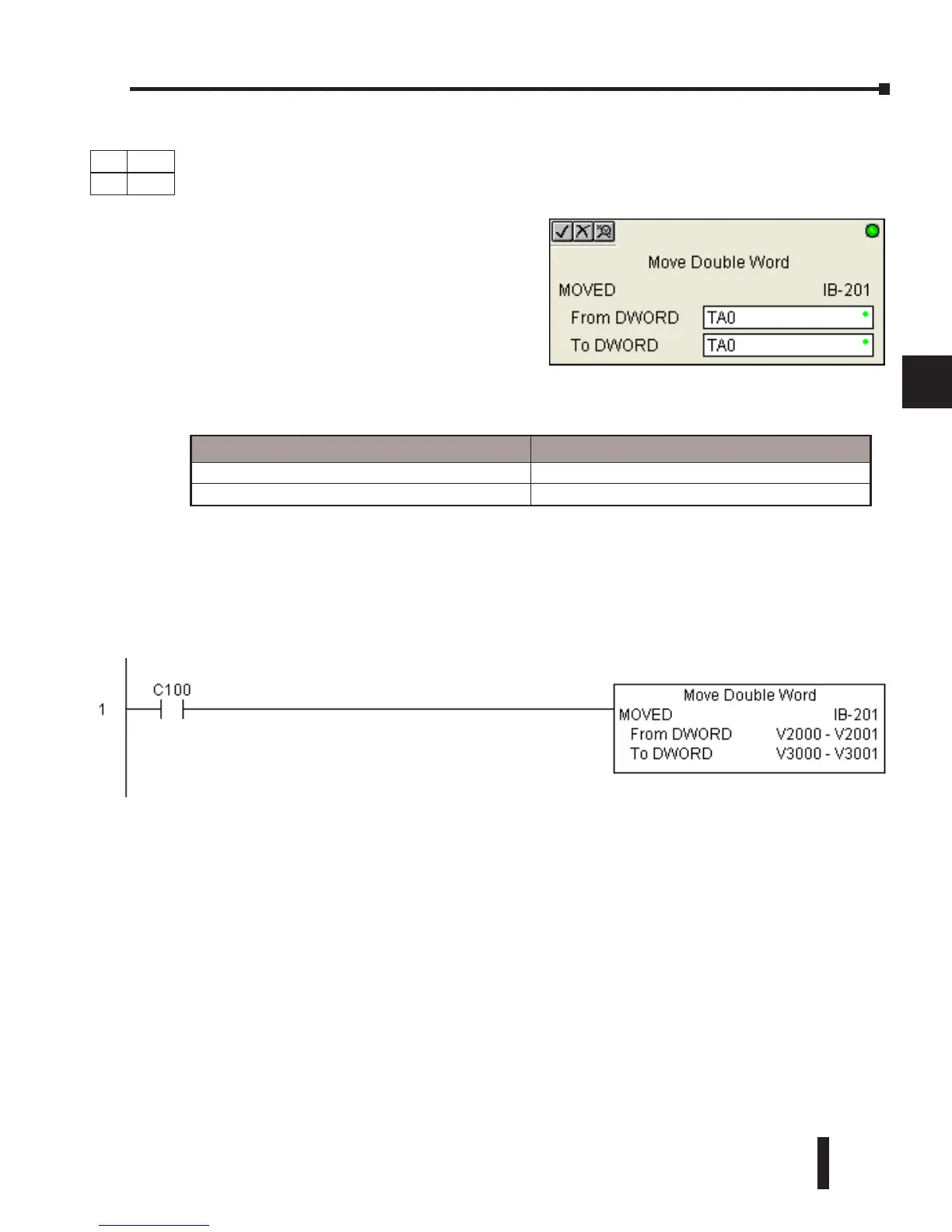

Move Double Word (MOVED) (IB-201)
Move Double Word moves (copies) a double word to two consecutive memory locations
directly or indirectly via a pointer, either as a double HEX constant, from a double memory
location, or indirectly through a pointer to a double memory location.
MOVED Parameters
• From DWORD: specifies the double word that
will be moved to another location
• To DWORD: specifies the location where the
“From DWORD” will be move to
MOVED Example
In the following example, the MOVED instruction is used to move 32-bits of data from V2000
and V2001 to V3000 and V3001 when C100 turns on.
Parameter DL06 Range
From DWORD V,P,K K0-FFFFFFFF; See DL06 V-memory map - Data Words
To DWORD V,P See DL06 V-memory map - Data Words
DS Used
HPP
N/A
