Chapter 5: Standard RLL Instructions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
MATHBIN Example

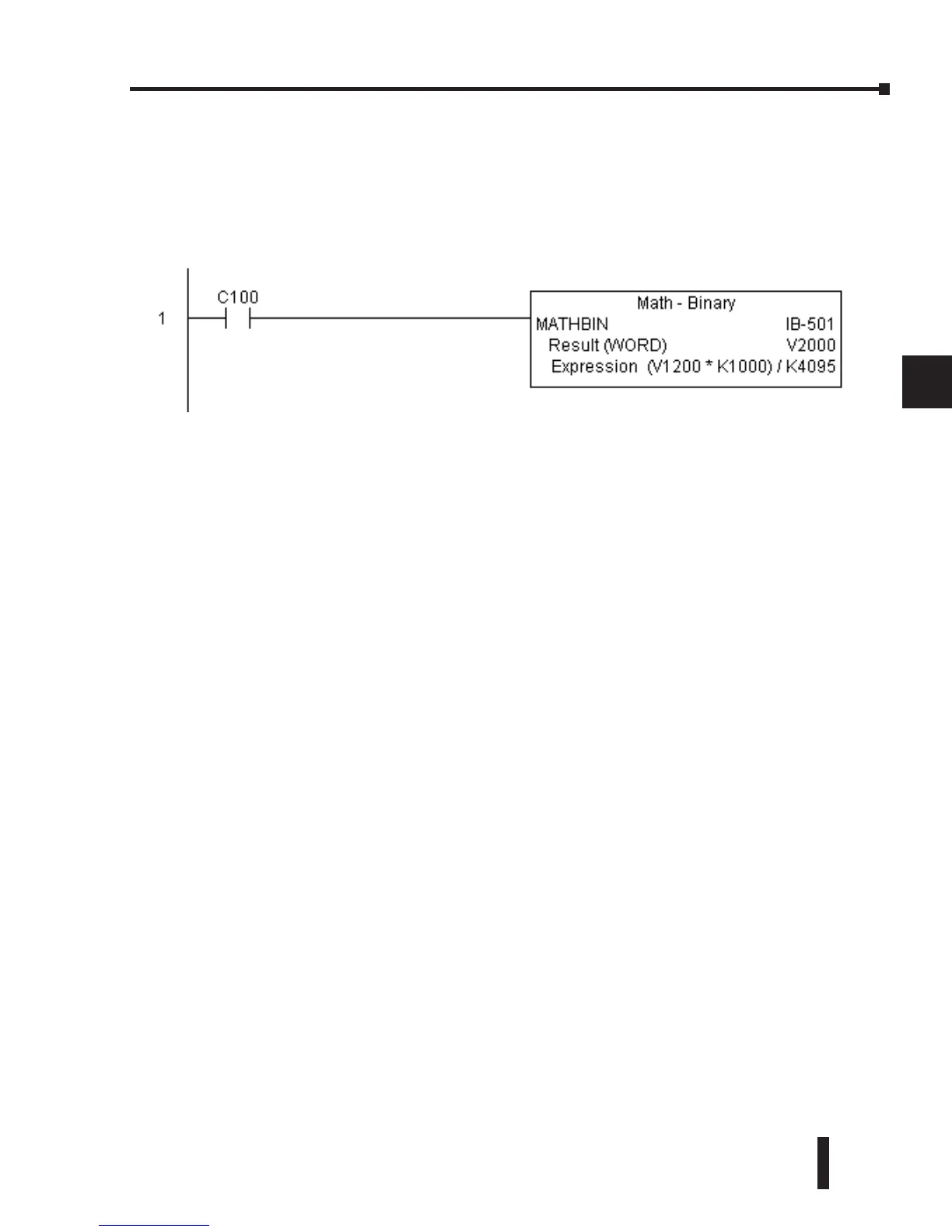

In the following example, the MATHBIN instruction is used to calculate the math expression
which multiplies the Binary value in V1200 by 1000 then divides by 4095 and loads the
resulting value in V2000 when C100 turns on.
