Real to BCD with Implied Decimal Point and Rounding (RTOBCD) (IB-561)
Real to BCD with Implied Decimal Point and Rounding converts the absolute value of the
given Real number to a 4 digit BCD number, compensating for an implied number of decimal
points (K0-K4) and performs rounding.
RTOBCD Parameters
• Value (DWORD Real): specifies the Real Dword location or number that will be converted and
rounded to a BCD number with decimal points
• Number of Decimal Points: specifies the number of implied decimal points in the Result WORD
• Result (WORD BCD): specifies the location where the rounded/implied decimal points BCD value
will be placed
RTOBCD Example

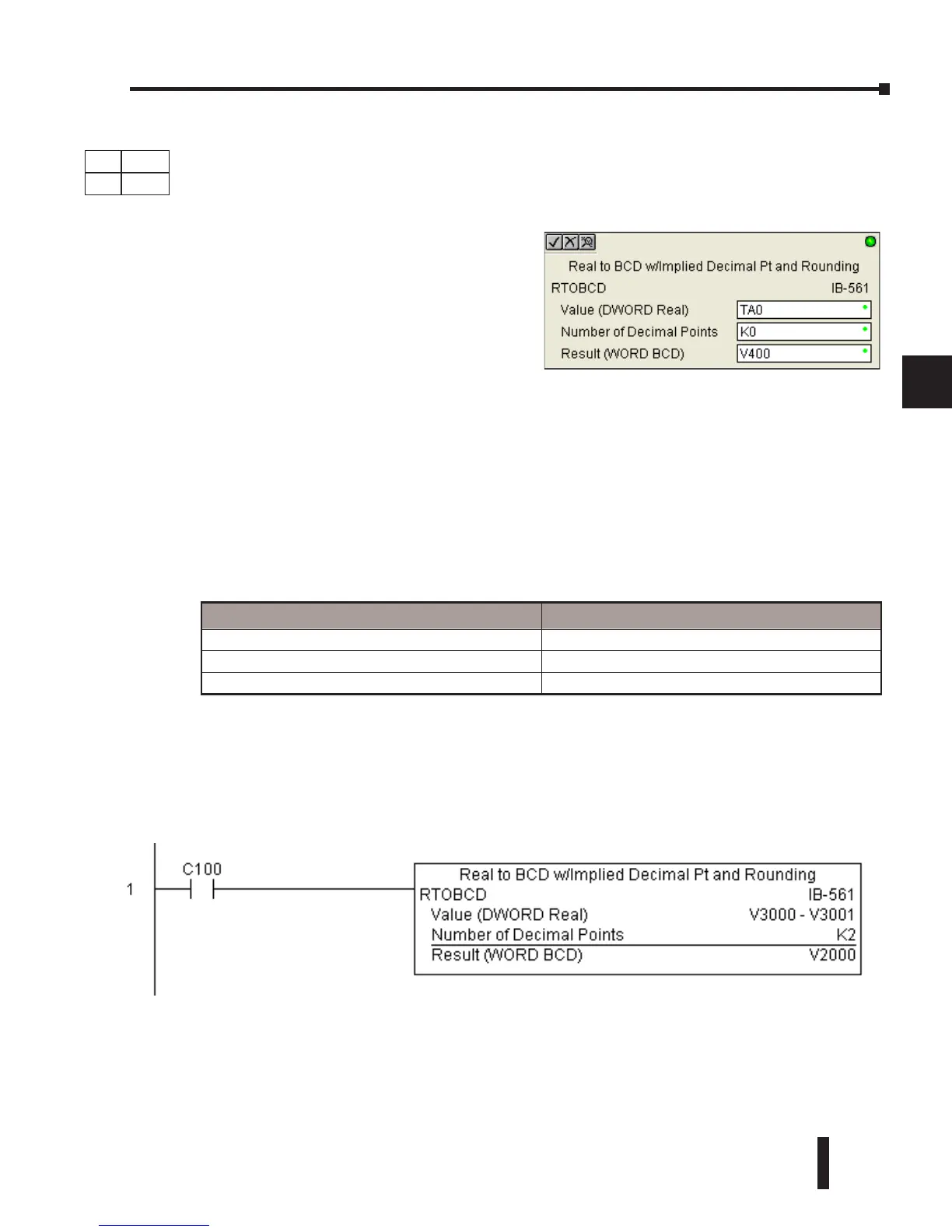

In the following example, the RTOBCD instruction is used to convert the 32-bit REAL
(floating point) data format in V3000 and V3001 to the 4-digit BCD data format and stored
in V2000 when C100 turns on.
K2 in the Number of Decimal Points implies the data will have two implied decimal points.
Parameter DL06 Range
Value (DWORD Real) V,P,R R ; See DL06 V-memory map - Data Words
Number of Decimal Points K K0-4
Result (WORD BCD) V See DL06 V-memory map - Data Words
DS Used
HPP
N/A
For example, RTOBCD R56.74 with an
implied number of decimal points equal to
K1, would yield 567 BCD. If the implied
number of decimal points was 0, then the
function would yield 57 BCD (note that it
rounded up).
If the Real number is negative, the Result will
equal its positive, absolute value.
