Square BCD (SQUARE) (IB-523)
Square BCD squares the given 4-digit WORD BCD number and writes it in as an 8-digit
DWORD BCD result.
SQUARE Parameters
• Value (WORD BCD): specifies the BCD Word
or constant that will be squared
• Result (DWORD BCD): specifies the location
where the squared DWORD BCD value will be
placed

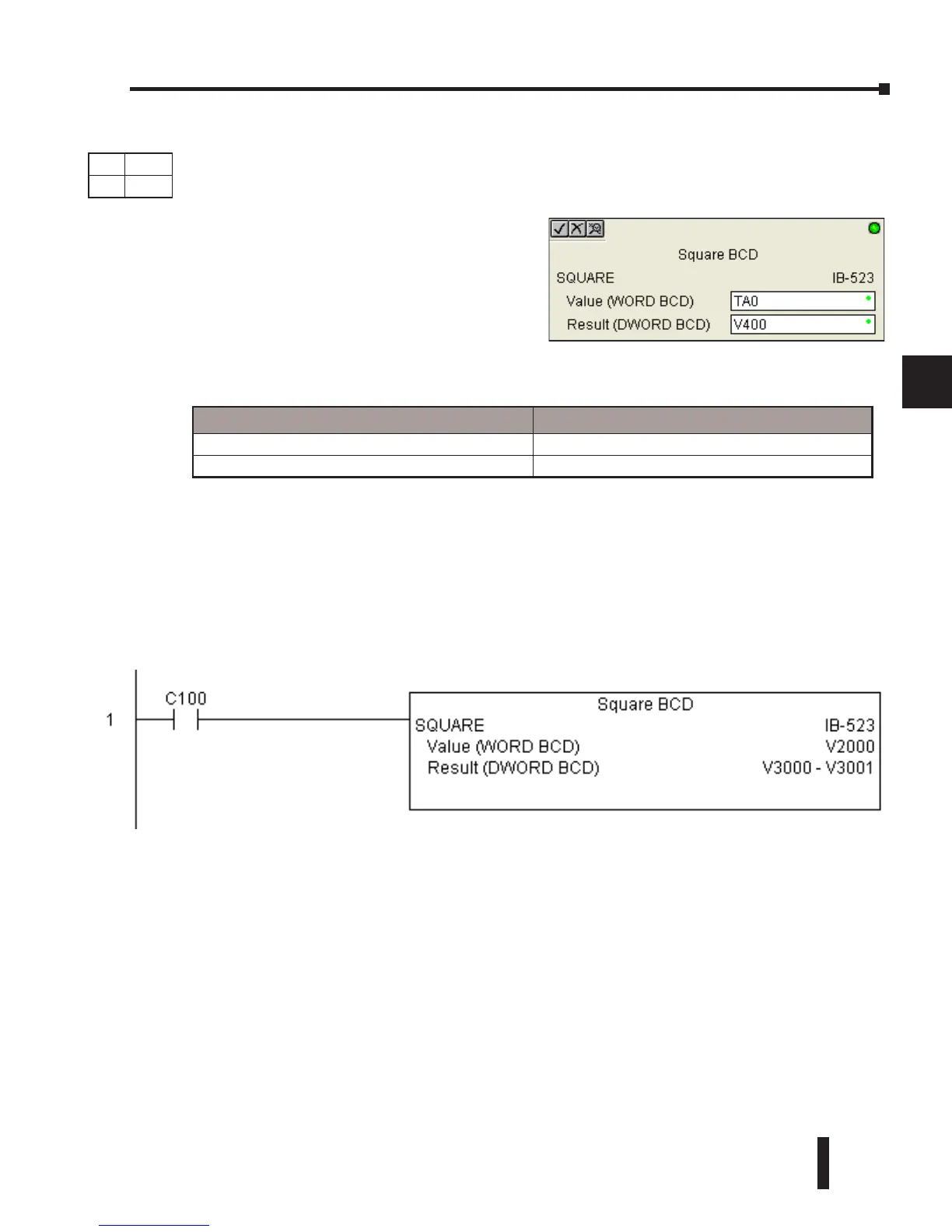

SQUARE Example
In the following example, the SQUARE instruction is used to square the 4-digit BCD value in
V2000 and store the 8-digit double word BCD result in V3000 and V3001 when C100 turns
on.
Parameter DL06 Range
Value (WORD BCD) V,P,K K0-9999 ; See DL06 V-memory map - Data Words
Result (DWORD BCD) V See DL06 V-memory map - Data Words
DS Used
HPP
N/A
