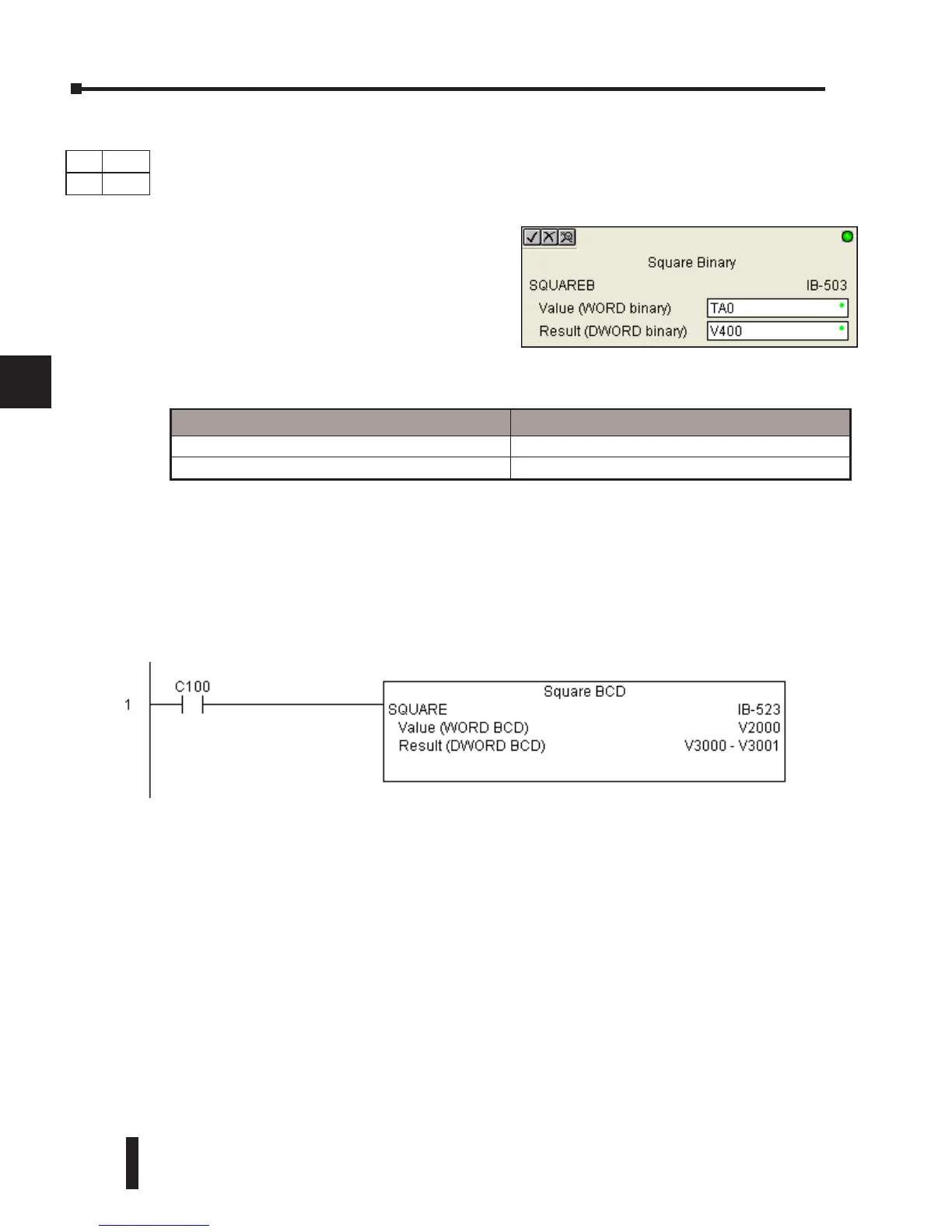

Square Binary (SQUAREB) (IB-503)
Square Binary squares the given 16-bit WORD Binary number and writes it as a 32-bit
DWORD Binary result.
SQUAREB Example
In the following example, the SQUAREB instruction is used to square the single word Binary
value in V2000 and store the 8-digit double word Binary result in V3000 and V3001 when
C100 turns on.
Parameter DL06 Range
Value (WORD Binary) V,P,K K0-65535; See DL06 V-memory map - Data Words
Result (DWORD Binary) V See DL06 V-memory map - Data Words
DS Used
HPP
N/A
SQUAREB Parameters
• Value (WORD Binary): specifies the binary
Word or constant that will be squared
• Result (DWORD Binary): specifies the
location where the squared DWORD binary
value will be placed
To Next Page
