Square Real (SQUARER) (IB-543)
Square Real squares the given REAL DWORD number and writes it to a REAL DWORD
result.
SQUARER Example

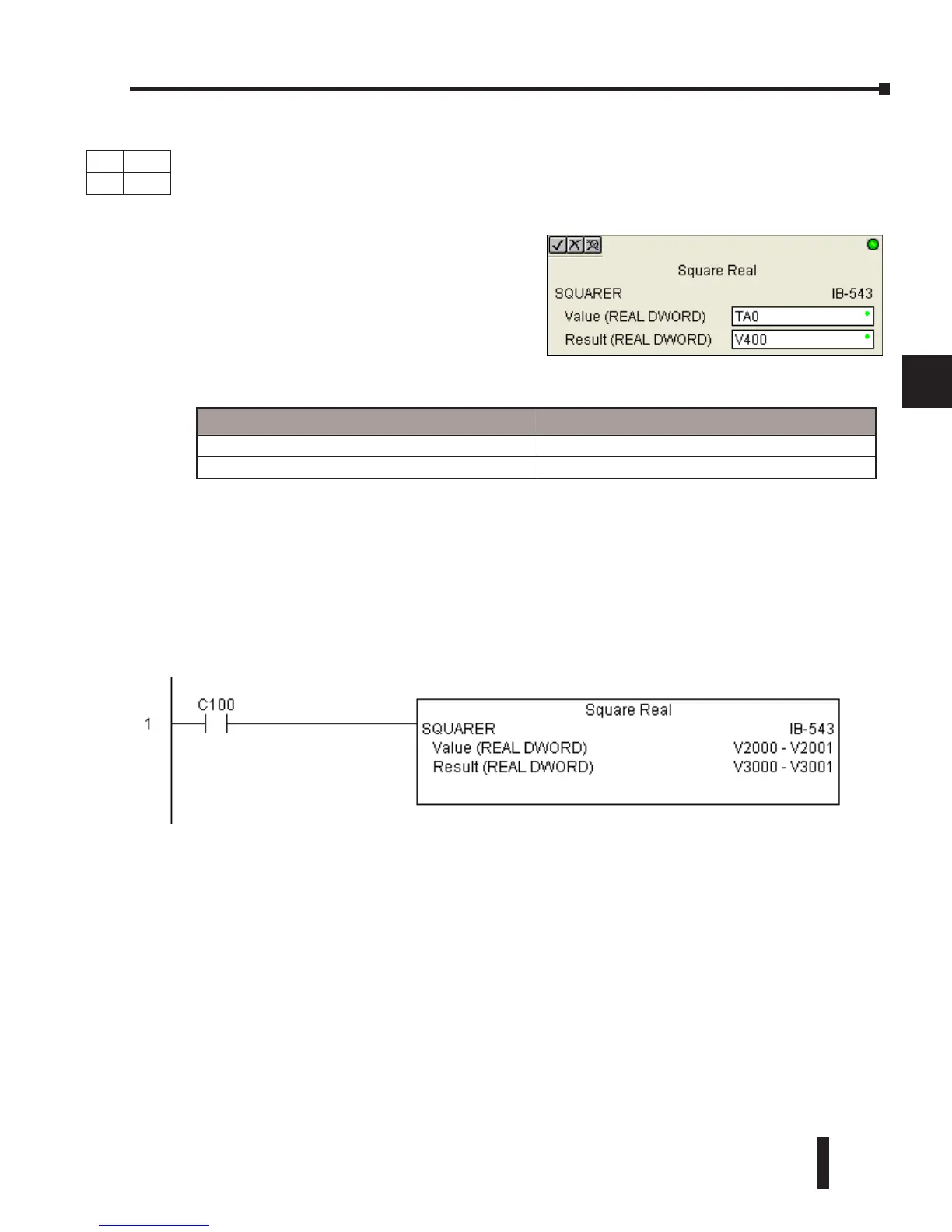

In the following example, the SQUARER instruction is used to square the 32-bit floating point
REAL value in V2000 and V2001 and store the REAL value result in V3000 and V3001 when
C100 turns on.
Parameter DL06 Range
Value (REAL DWORD) V,P,R R ; See DL06 V-memory map - Data Words
Result (REAL DWORD) V See DL06 V-memory map - Data Words
DS Used
HPP
N/A
SQUARER Parameters
• Value (REAL DWORD): specifies the Real
DWORD location or number that will be
squared
• Result (REAL DWORD): specifies the location
where the squared Real DWORD value will be
placed
