Automationdirect.com DL06 - Page 63

DL06 Micro PLC User Manual, 3rd Edition, Rev. E
Chapter 2: Installation, Wiring, and Specifications
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
2-20
Relay Output Wiring Methods
The D0–06AR and the D0–06DR models feature relay outputs. Relays are best for the
following applications:
• Loads that require higher currents than the solid-state DL06 outputs can deliver
• Cost-sensitive applications
• Some output channels need isolation from other outputs (such as when some loads require AC
while others require DC)
Some applications in which NOT to use relays:
• Loads that require currents under 10mA
• Loads which must be switched at high speed and duty cycle
This section presents various ways to wire relay outputs to the loads. The relay output DL06s
have sixteen normally-open SPST relays available. They are organized with four relays per

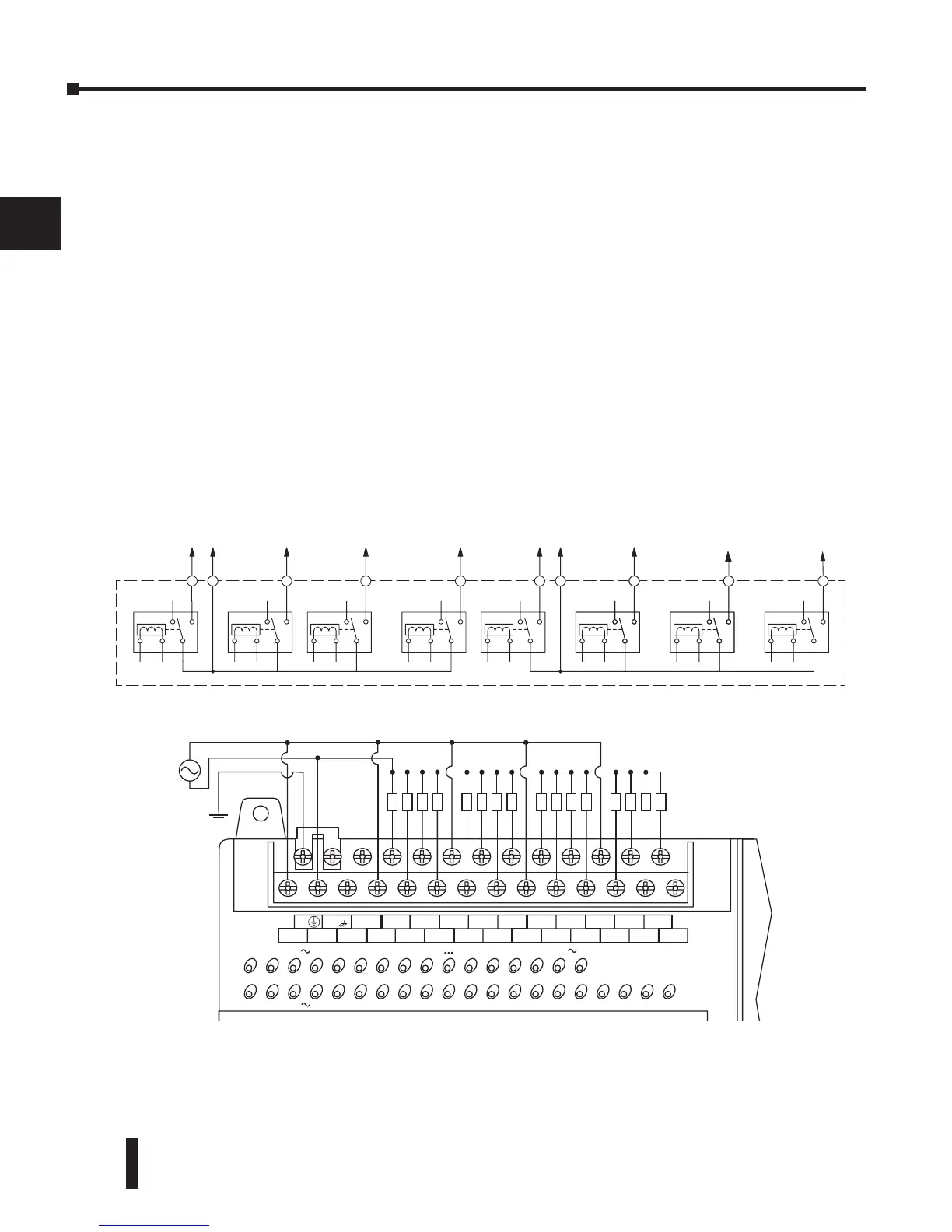

common. The figure below shows the relays and the internal wiring of the PLC. Note that each
group is isolated from the other group of outputs.
In the circuit below, all loads use the same AC power supply which powers the DL06 PLC. In
this example, all commons are connected together.
In the circuit on the following page, loads for Y0 – Y3 use the same AC power supply which
powers the DL06 PLC. Loads for Y4 – Y7 use a separate DC supply. In this example, the
commons are separated according to which supply powers the associated load.
Y0
Common
Y1 Y2 Y3 Y4
Common
Y5
Y6
Y7
LOGIC
Koyo
06
AC
Supply
LLLL
C0 C4C2X1 X3 X4 X6 X11 X13 X14 X16 X21 X23 N.C.
C1 C3X2 X5 X7 X10 X12 X15 X17 X20 X22X0 N.C.
LLLLLLLL LLLL
AC
(
N
)
24V
0V
N.C.
C1 C3Y0 Y15Y12Y10 Y17Y7Y5Y2
C0 C2 Y16Y14Y13Y11Y6Y4Y3Y1
LGG
AC
(
L
)
D0-06AR
40VA50-60HzPWR: 100-240V2.0AOUTPUT: 6-240V 50 - 60Hz 2.0A, 6 - 27V
Y
X
7 - 15mAINPUT: 90 - 120V
0 12345671011121314151617202122 23
