DL06 Micro PLC User Manual, 3rd Edition, Rev. E
3-5
Chapter 3: CPU Specifications and Operation
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

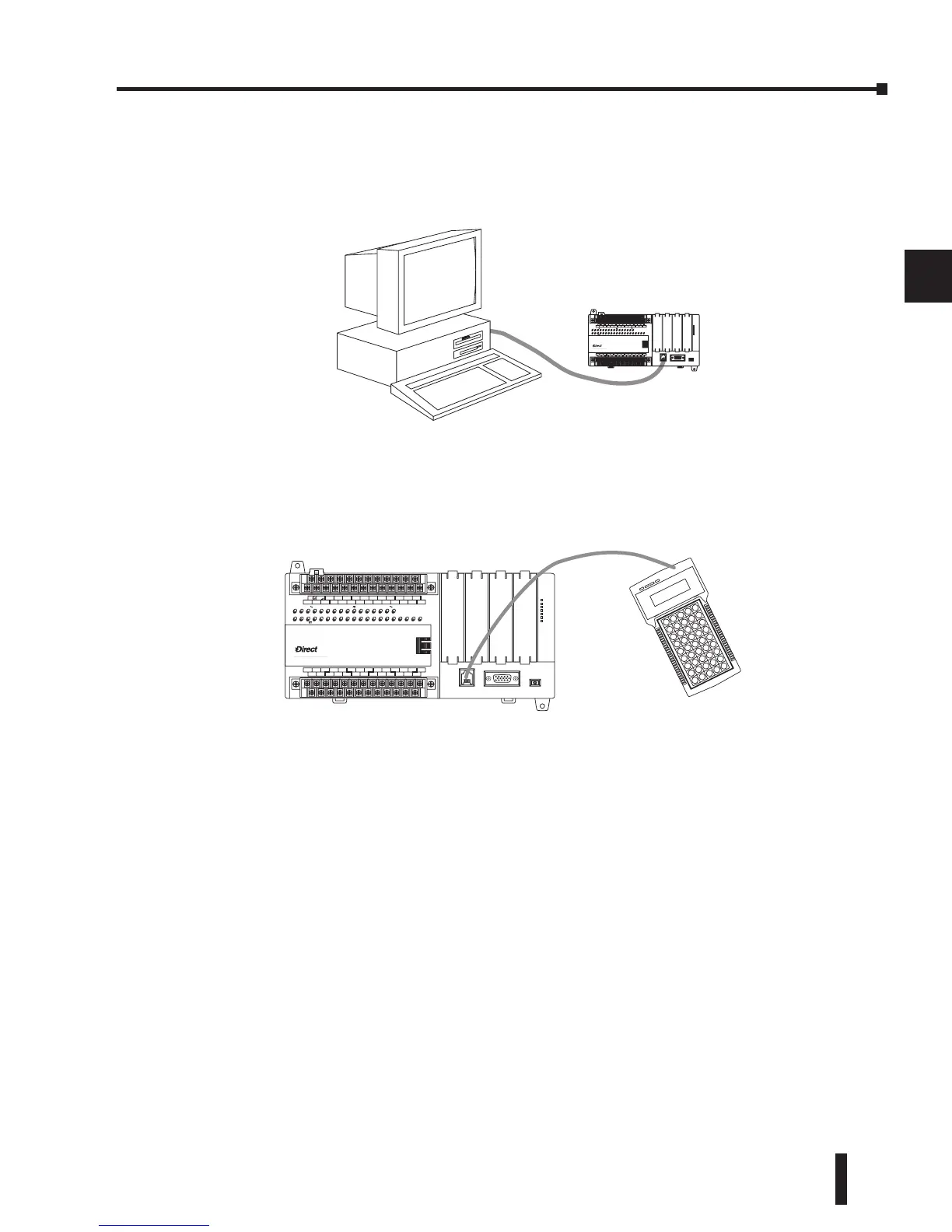

Connecting the Programming Devices
If you’re using a Personal Computer with the DirectSOFT programming package, you can
connect the computer to either of the DL06’s serial ports. For an engineering office environment
(typical during program development), this is the preferred method of programming.
The Handheld programmer D2-HPP is connected to the CPU with a handheld programmer
cable. This device is ideal for maintaining existing installations or making small program
changes. The handheld programmer is shipped with a cable, which is approximately 6.5 feet
(200 cm) long.
CPU Setup Information
Even if you have years of experience using PLCs, there are a few things you need to do before
you can start entering programs. This section includes some basic things, such as changing the
CPU mode, but it also includes some things that you may never have to use. Here’s a brief list
of the items that are discussed:
• Using Auxiliary Functions
• Clearing the program (and other memory areas)
• How to initialize system memory
• Setting retentive memory ranges
The following paragraphs provide the setup information necessary to get the CPU ready for
programming. They include setup instructions for either type of programming device you
are using. The D2–HPP Handheld Programmer Manual provides the Handheld keystrokes
required to perform all of these operations. The DirectSOFT Manual provides a description of
the menus and keystrokes required to perform the setup procedures via DirectSOFT.
For replacement
cable, use part no.
DV–1000CBL
LOGI
C
Koyo
0
6
C0 C4C2X1 X3 X4 X6 X11X13 X14X16 X21X23 N.C.
C1 C3X2 X5 X7 X10X12 X15X17 X20X22X0
N.C.
AC
(
N
)
24V
0V
N.C.
C1 C3Y0 Y15Y12Y10Y17Y7Y5Y2
C0 C2 Y16Y14Y13Y11Y6Y4Y3Y1
LG
G
AC
(
L
)
D0-06DR
2.0AOUTPUT: 6-240V50 - 60Hz2.0A, 6 - 27V
INPUT: 12 - 24V 3 - 15mA
Y
X
40VA50-60HzPWR: 100-240V
01 2345 6710 11 12 13 14 15 16 17 20 21 22
23
PORT1PORT2
TERM
RUN STOP
PWR
RUN
CPU
TX1
RX1
TX2
RX2
Use cable part no.
D2–DSCBL
LOGI
C
Ko
yo
0
6
C0 C4C2X1 X3 X4 X6 X11X13 X14X16 X21X23 N.C.
C1 C3X2 X5 X7 X10X12 X15X17 X20X22X0
N.C.
AC
(
N
)
24V
0V
N.C.
C1 C3Y0 Y15Y12Y10Y17Y7Y5Y2
C0 C2 Y16Y14Y13Y11Y6Y4Y3Y1
LG
G
AC
(
L
)
D0-06DR
2.0AOUTPUT: 6-240V 50 - 60Hz 2.0A, 6 - 27V
INPUT: 12 - 24V3 - 15mA
Y
X
40VA50-60HzPWR: 100-240V
0123456710 11 12 13 14 15 16 17 20 21 22
23
PORT1PORT2
TERM
RUN STOP
PWR
RUN
CPU
TX1
RX1
TX2
RX2
