4.2.2 Lower bar

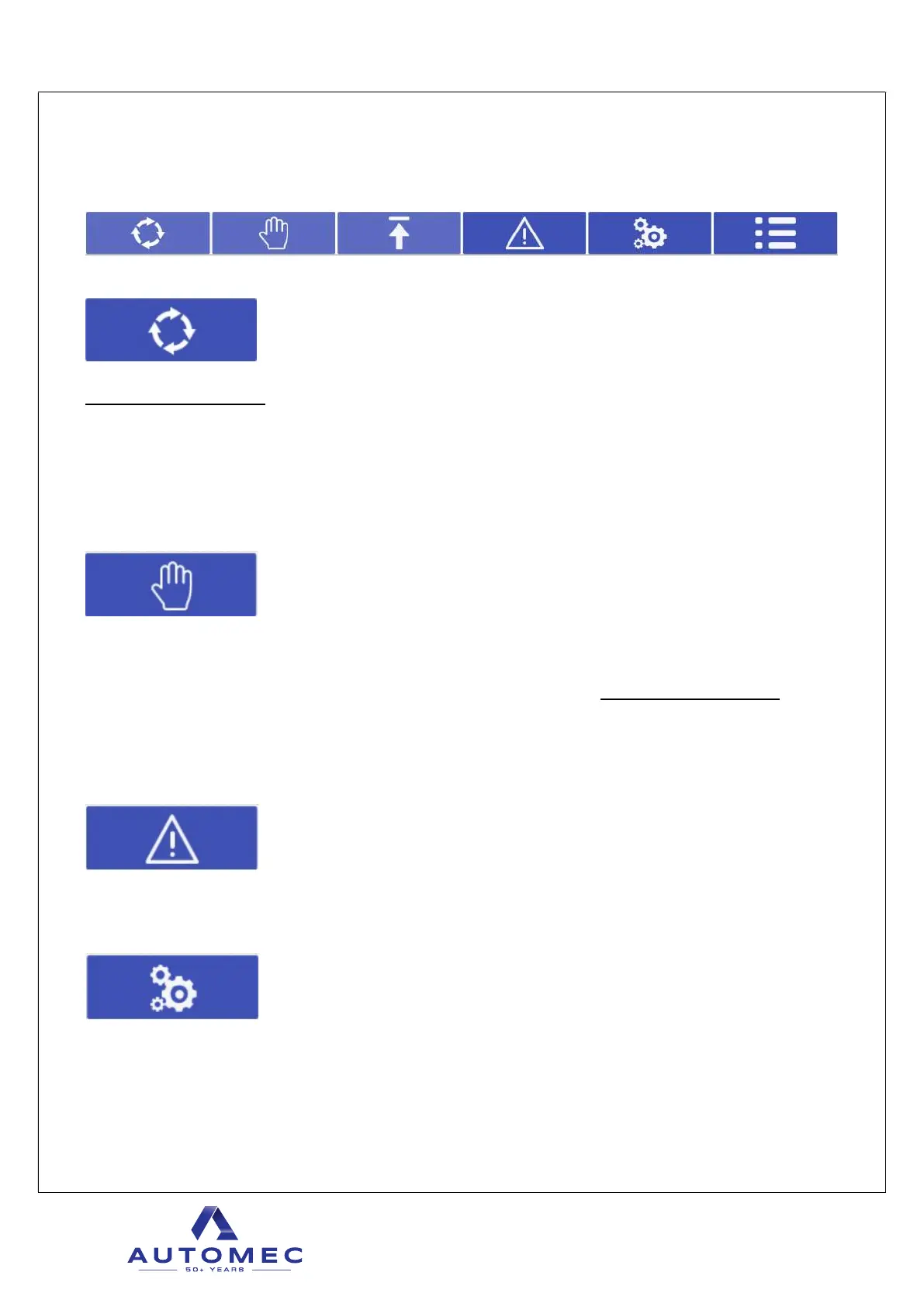

Lower bar is visible on each page.
Button above enables auto mode. Light/dark color in button indicates if auto mode is active and
servo motors are ON.
Half light / half dark color indicates semi-auto mode.
Possible causes for this button being inactive:
-machine is not referenced
-machine has an alarm
Button above enables manual mode. In manual mode page machine can be referenced, axes
can be jogged and certain service operations can be done.
Light/dark color in button indicates if manual mode is active and servo motors are ON.
Possible causes for this button being inactive:
-machine has an alarm
Blinking alarm indicates there is active alarm. With this button alarm page can be switched and
cause of alarm can be seen.
Settings.
To Next Page
