Page 04 KKCTE02T-A/0-20131221
6.Lock Key Setting
Lock Key function is used for avoiding key mis-pressing.
L.OFF (LOCK OFF): Cancel Lock Key function.
LOC.1(LOCK LEVEL1): Lock RST Key
LOC.2(LOCK LEVEL2): Lock and and Key.
LOCK.3(LOCK LEVEL3): Lock RST and and and Key.
(1)
Batch counting under counting mode
When counting alarm output times reaching to the preset batch value , batch alarm output .
(2)
Batch counting under timing mode
When timing alarm output reaches to the preset batch value , batch alarm output .
Under FLK output mode , when the batch counting value is increasing , preset time of Toff and Ton will pass .
Batch output function
If batch output is ON , it will keep status till batch reset signal comes .
If batch output is ON , the meter power off and power on again , batch output should keep
ON
status till external reset signal comes.
When using batch control output , up counting time interval will be more than 10ms
times
ON
2.
Running mode
BA MD
Batch preset value modify status
For Example:Pulse number is a number of pulse generated by rotary encoder, L is the measured length, Prescale value is
equal to L divides P.
Modify batch preset vaule
.
MD
If batch preset value is set as 0 , batch output is on OFF status .
In batch setting satus , if there is no any operation in 60S , the meter will come back to measure status automatically .
BA
Under running status , press key to enter batch preset value modify status.
The method of modifying batch output preset value is the same as setting counting value , press
key to select the data need to be modified and
make it flickering . Press key to modify the value , press to complete the setting and return to measuring status.
When entering batch preset value modifying mode , the above line LED display the present batch counting value.
When batch preset value is beyong batch counting value , change the batch preset value equal to or smaller than the batch counting value , batch
output will make action.
旋转编码器
刀具
滚轮
电机
计数器和旋转编码器控制长度
π×滚轮的直径( D )
系数值 = ------------------------
编码器旋转一周的脉冲个数
电机控制系统
计数器
π×Diameter of the roller( D )
Prescale Value = ---------------------------------
Pulse number per 1 revolution of the encoder
Set 0.069 of prescale value at perscale value ste mode.
3.1416×22
= ------------------
1000
= 0.069mm/pulse

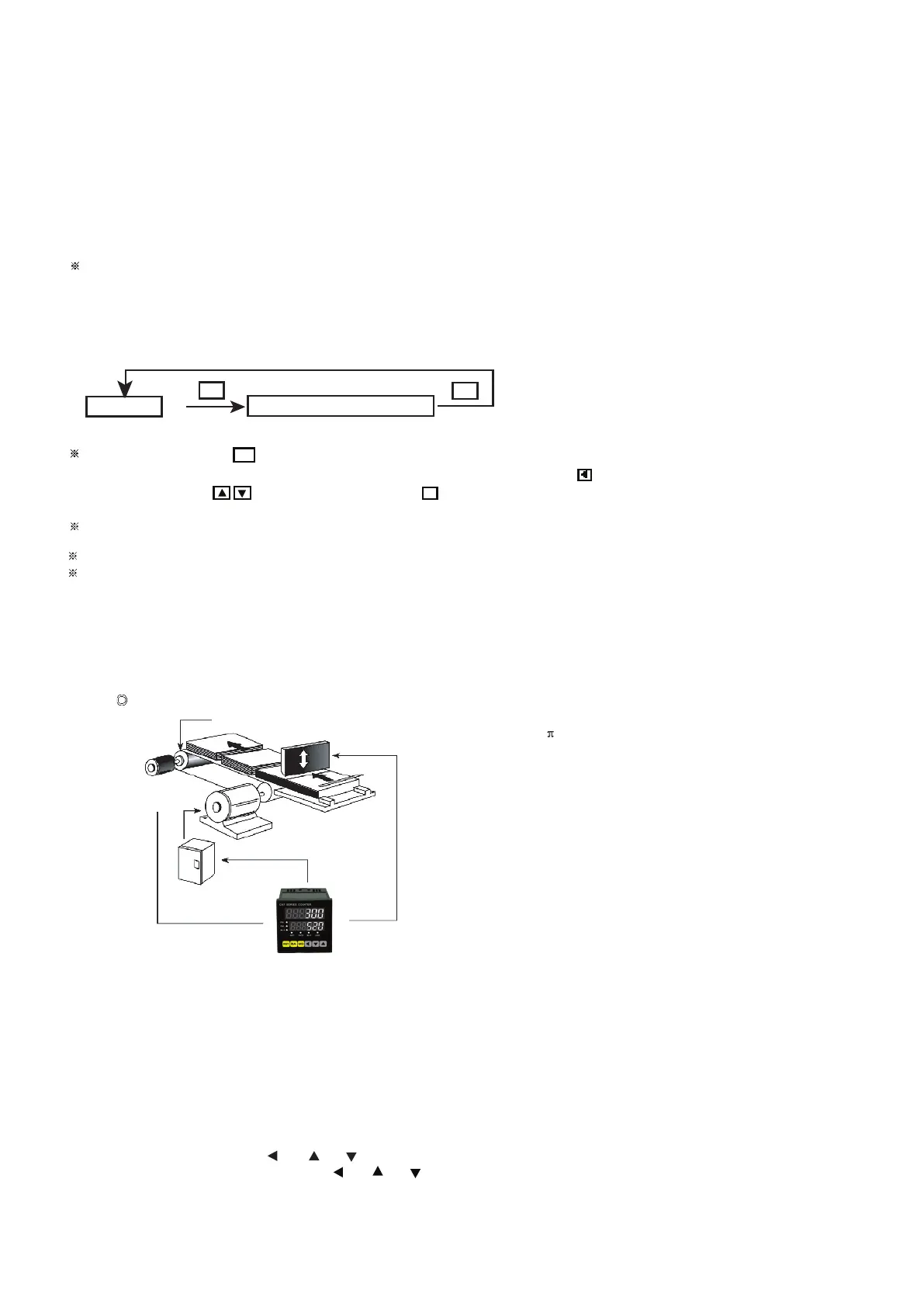

To use counter and rotary to control length
Rotary encoder
Motor
Motor controlling system
Roller
Cutter
Counter
The diameter of the wheel which connects the rotary coder is 22mm,
The pulses number per 1 revolution of encoder is 1000 pcs.
