Autonics CX6S-2P4 User Manual

J-8
CX Series
●
Improved visibility with LCD display
●
Input method: voltage input (PNP)/no-voltage input (NPN) selectable model (by parameter setting),
Free voltage input model
●
Setting range of one-shot output time: 0.01 sec to 99.99 sec by 0.01 sec unit
●
Mounting space saving with compact design (back length: 64.5mm)
[Counter]
●
Setting range of prescale value: 0.00001 to 99999.9
●
Various input/output mode (input: 11 types, output: 11 types)
●
Start point (counting value reset) setting
●
TOTAL counter display mode
: Displays the present value and the integrated value
simultaneously.
[Timer]
●
Various output mode (15 types)
●
Wide time setting range: 0.001 sec to 99999.9 hour
●
'0' time setting function
For the detail information, please refer to user manual, and be sure to follow cautions written in the technical descriptions (catalog,
homepage).
Visit our homepage (www.autonics.com) to download manuals.
Features

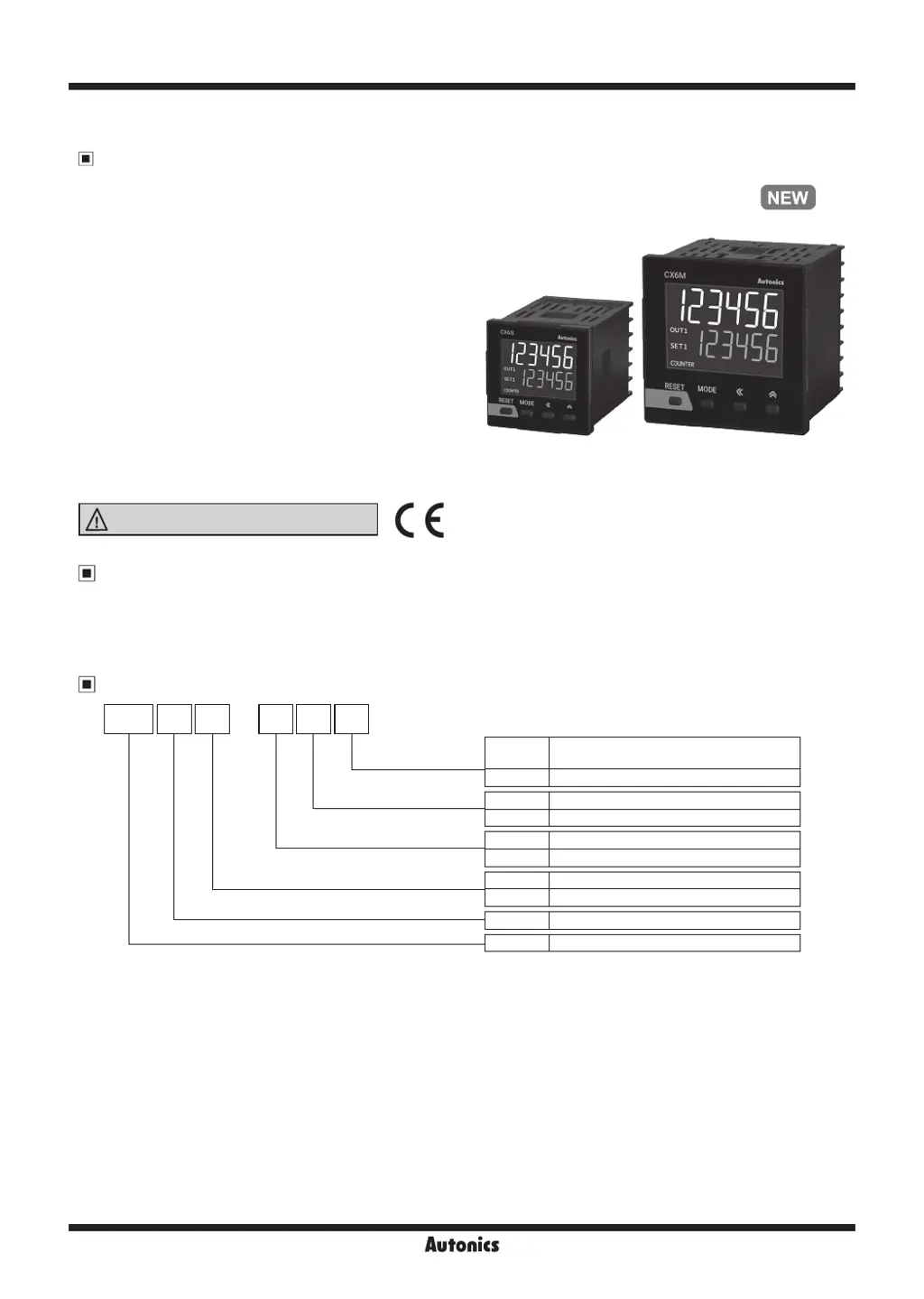

DIN W48×H48mm, W72×H72mm LCD Display Counter/Timer
Ordering Information
Manual
Please read “Safety Considerations” in operation
manual before using.
Item
Display digit
Size
Output
Power supply
Signal input method
CX 1P 4
F
6 S -
No mark
Voltage input (PNP)/no-voltage input (NPN)
selectable type
F
Free voltage input
2
24VAC 50/60Hz, 24-48VDC
4
100-240VAC 50/60Hz
1P
1-stage setting
2P
2-stage setting
S
DIN W48×H48mm
M
DIN W72×H72mm
6
999999 (6-digit)
CX
LCD Display counter/Timer

Autonics CX6S-2P4 Specifications

General

Model	CX6S-2P4
Type	Digital Timer
Output Type	Relay
Mounting	Panel Mount
Terminal Type	Screw Terminal
Operation mode	On-delay, Flicker, Interval, One-shot
Power Consumption	3W
Time Range	0.1 sec to 9999 hrs
Contact Output	SPDT
Contact Rating	5A 250V AC / 5A 30V DC
Ambient Temperature	-10°C ~ 55°C
Ambient Humidity	35 to 85% RH
Dimensions	48 x 48 mm

Summary

Features

Electrical Connections

CX6S Series Input Connections

Wiring details for CX6S series voltage and no-voltage input types.

CX6S Series Free Voltage Input

Wiring details for CX6S series free voltage input models.

CX6M Series Electrical Connections

CX6M Series Voltage Input Connections

Wiring details for CX6M series voltage input models.

CX6M Series Free Voltage Input

Wiring details for CX6M series free voltage input models.

Dimensions and Mounting

CX6S Series Dimensions and Cut-out

CX6M Series Dimensions and Cut-out

Unit Description

Input Connection Details

No-voltage Input (NPN) Connections

Details NPN input connection methods including solid-state and contact inputs.

Voltage Input (PNP) Connections

Details PNP input connection methods including solid-state and contact inputs.

Counter Operations and Functions

Counter Mode Operation

Changing Setting Values (SV)

Counter Settings and Modes

Function Setting Mode

Counter Reset Operation

Counter Output Modes and Conditions

Standard Output Modes

Counter Prescale Function

Counter Start Point Function

Timer Mode Operation

Changing Timer Setting Values (SV)

Timer Function Setting Mode

Timer '0' Time Setting

Zero Time Setting Operation by Mode

Details how to set zero time for various timer output modes.

Important Usage Cautions
