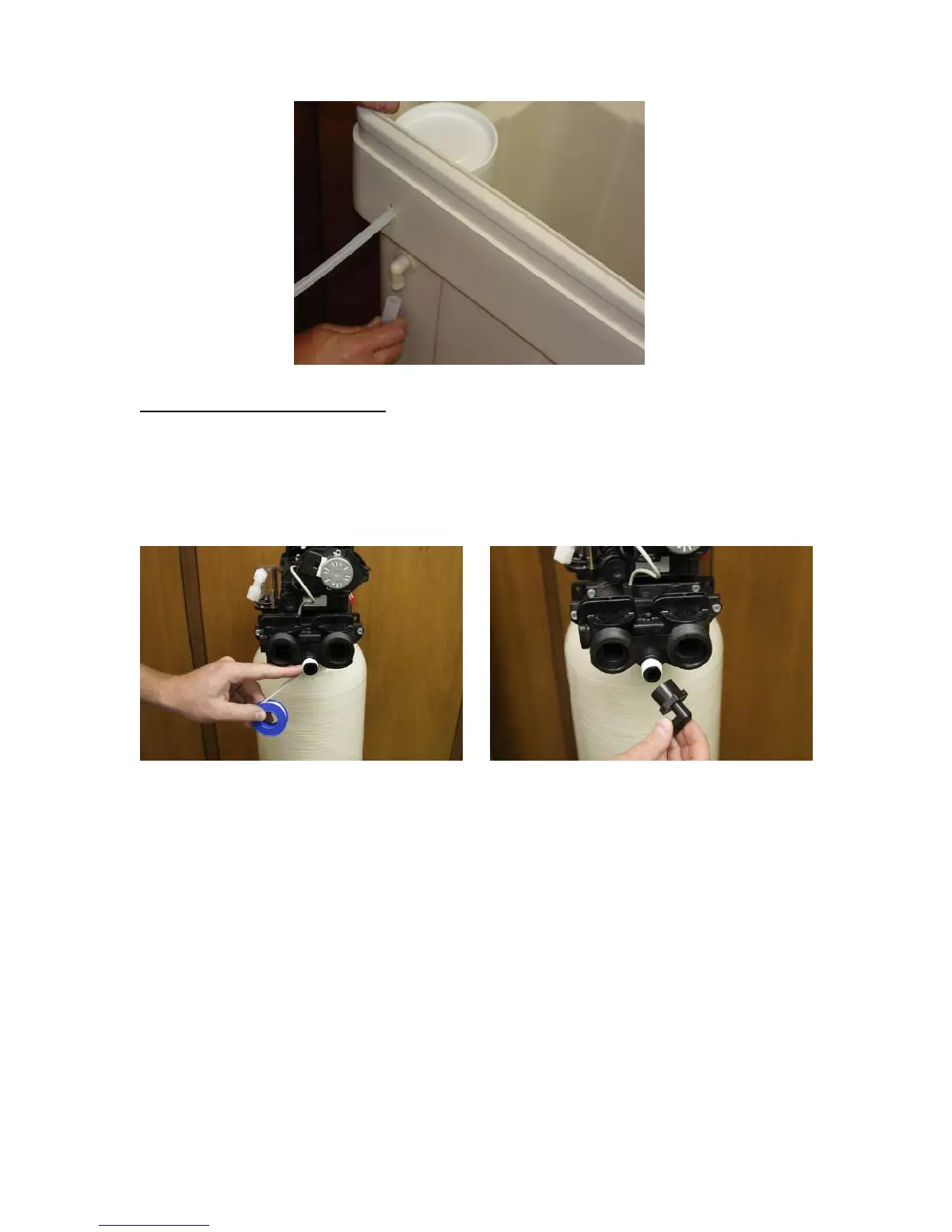

FIGURE 28
Making the Drain Connection:
• Locate the drain port on the bypass, and apply Teflon tape as shown in figure 29
below.
• Locate the included drain barb elbow and assemble the fitting as shown in figure
30 below.
FIGURE 29 FIGURE 30
• Next, assemble your ½” I.D. drain line to the drain barb as shown in Figure 31 on
the following page. Be sure to use rigid wall ½” I.D. tubing that will not flatten
• Wrap electrical tape over the drain tubing to prevent a tubing split, and clamp the
tubing securely into place with the included blue clamp as shown in Figure 32 on
the following page.
