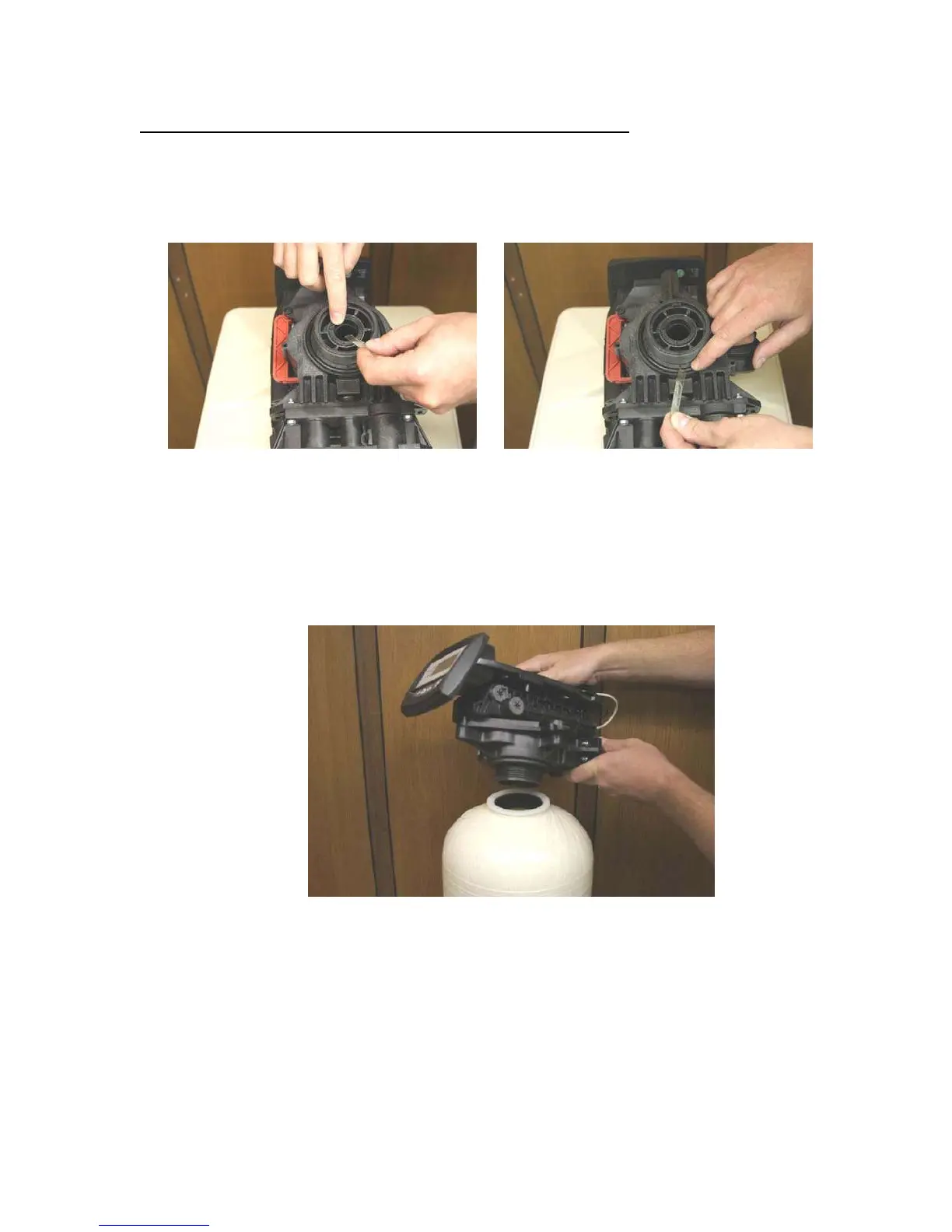

Installing the Autotrol LOGIX 255-760 Meter Control Valve:
• Using the included silicone lubricant packet, lubricate the inner and outer o-
rings on the bottom of the Autotrol LOGIX 255-760 Meter Valve as shown in
Figures 5 & 6 below.
FIGURE 5 FIGURE 6
• Next, place the Autotrol LOGIX 255-760 Meter Valve onto the top of the
tank, being sure that the riser tube fits into the central o-ring on the valve, as
shown in figure 7 below. Hand tighten the valve to the tank snugly by hand
only. NOTE: Do not use Teflon tape or pipe dope on the valve or tank
threads.
FIGURE 7
• Locate the plumbing adaptors and bypass valve assembly that was shipped
with your system as shown in figure 8 on the following page.
• Using the included silicone lubricant packet, lubricate the three o-rings
included and assemble them to the back of the valve as shown in figure 9 on
the following page.
• Finally, push the bypass valve snugly to the back of the Autotrol LOGIX 255-
760 valve as shown in Figure 10 on the following page. Use the screws and
nuts to secure the bypass valve as shown in figure 11 on the following page.
© 1999-2007 QualityWaterForLess.com - 4 - info@qualitywaterforless.com
