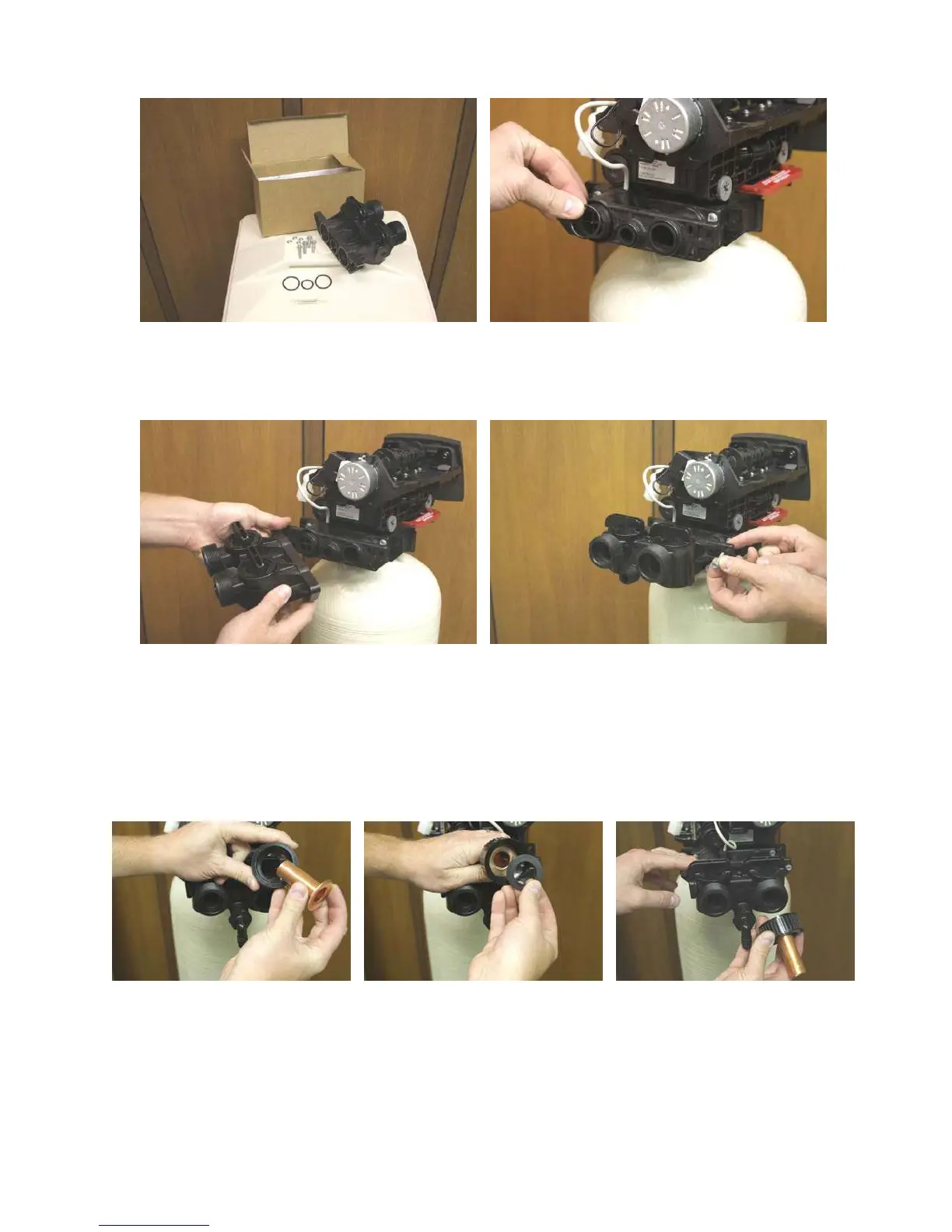

FIGURE 8 FIGURE 9
FIGURE 10 FIGURE 11
• Locate the two plumbing adaptors supplied with your system. Insert the plumbing
adapter through the universal nut as shown in figure 12 below.
• Next push down the gasket over the adaptor flange as shown in figure 13 below.
• Secure each plumbing adaptor onto the bypass as shown in figure 14.
FIGURE 12 FIGURE 13 FIGURE 14
NOTE: If using copper connections, first prefabricate and sweat a 12” tube section
onto each adaptor and cool BEFORE assembly to the bypass. This allows you avoid
overheating the nut and bypass during future plumbing.
