Making the Brine Tank Connection:
• Locate the included sight glass air check and brine fitting for the Autotrol LOGIX
255-760 Valve. The sight glass air check will look like a clear plastic vial with
two screws, a rubber ball, and an o-ring.
• First, lay the rubber ball onto the brine port of your valve as shown in figure 15.
• Lubricate and assemble the o-ring over the port flange as shown in figure 16.
• Use Teflon tape on the sight glass air check as shown in figure 17.
• Assemble the brine fitting onto the sight glass air check as shown in figure 18,
being careful not to over tighten.
• Finally, use the two included screws to assemble the sight glass air check to the
valve as shown in figure 19.

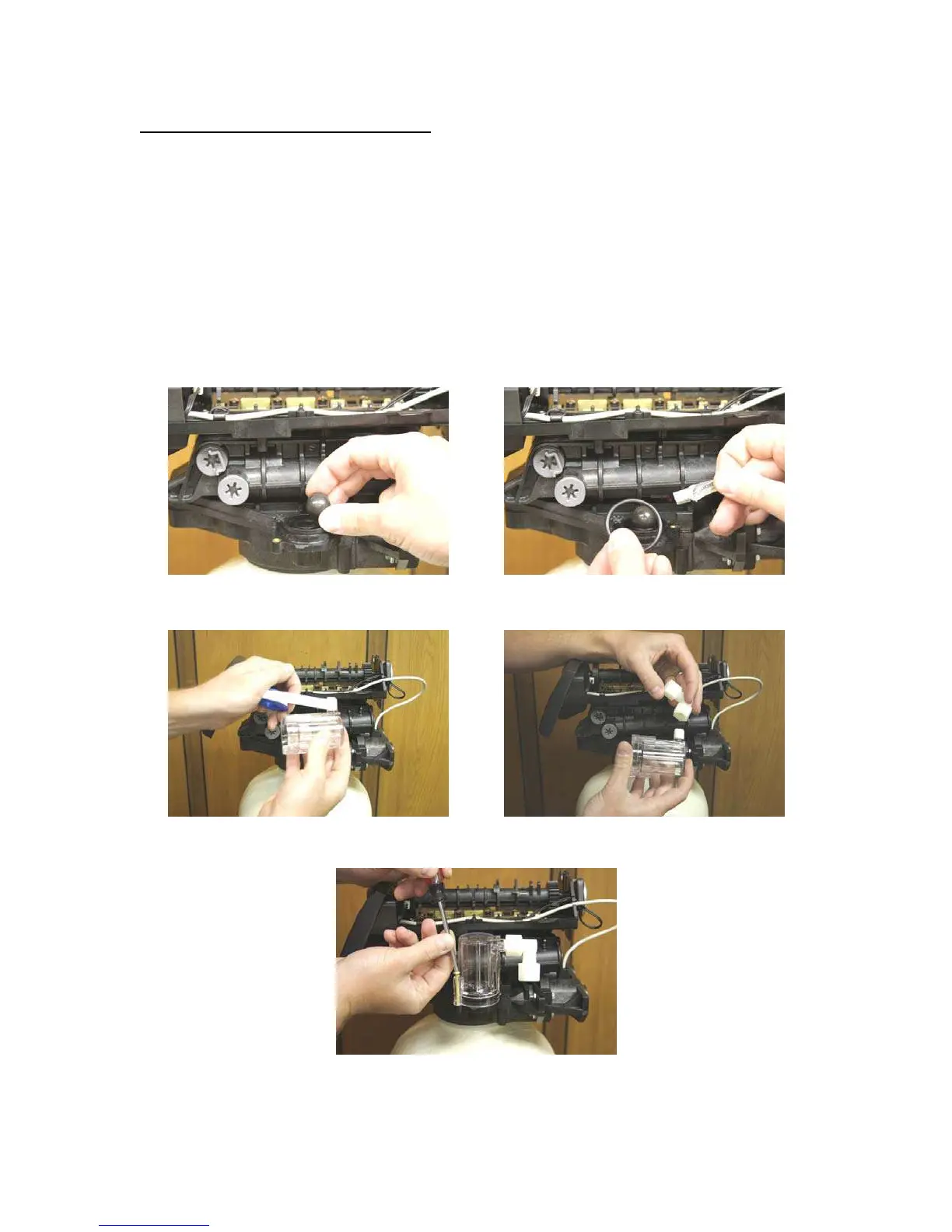

FIGURE 15 FIGURE 16
FIGURE 17 FIGURE 18
FIGURE 19
