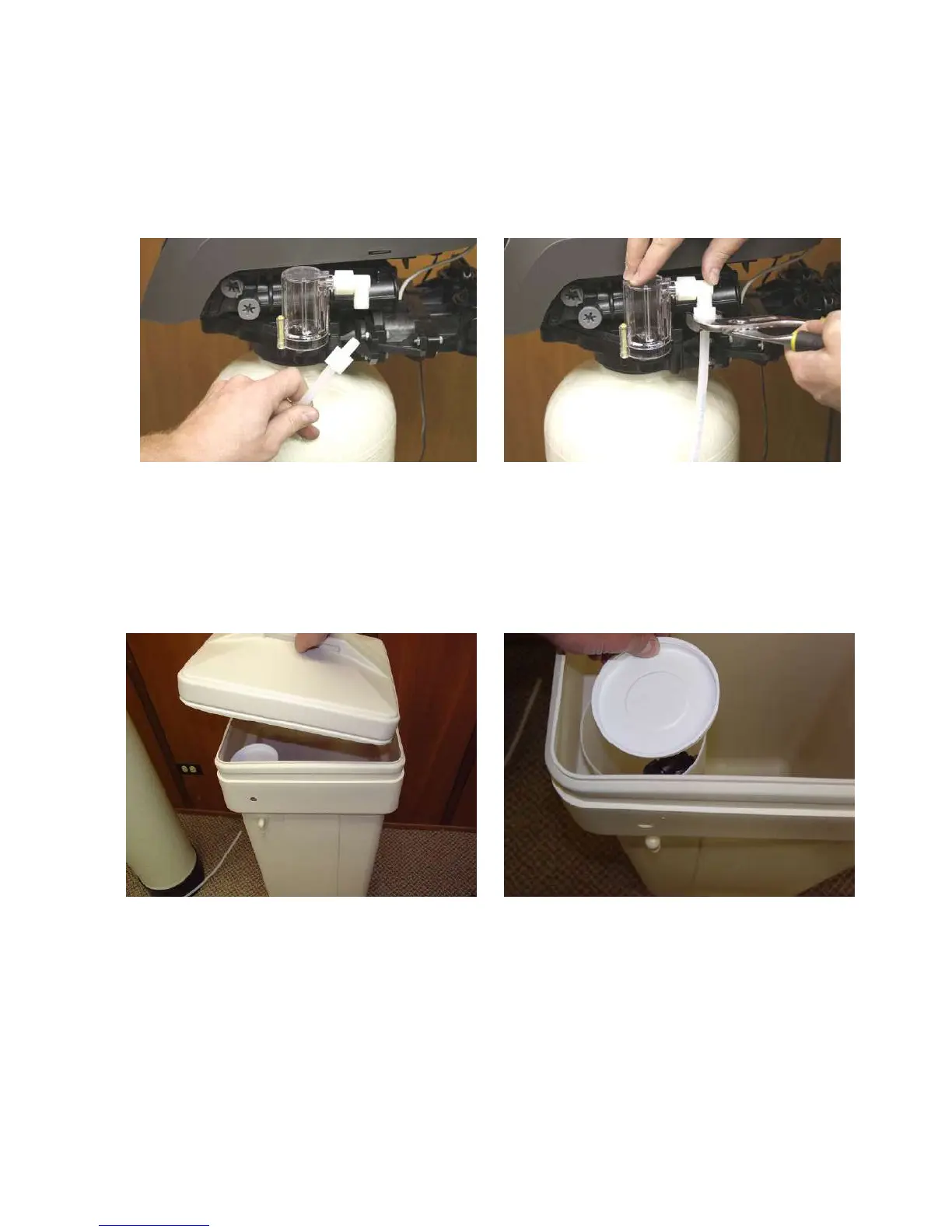

• Locate the included section of included Brine Tubing. Loosen the compression
nut on the brine fitting, and assemble the brine tubing to the brine fitting as shown
in figure 20.
• Finger-tighten the nut and use a wrench to turn the fitting ½ turn more until snug
as shown in figure 21 below. Please use care not to overtighten.
FIGURE 20 FIGURE 21
• Locate the included brine tank, and remove the brine tank cover shown in Figure
22.
• Next, locate the brine well, and remove the cap as shown in Figure 23.
FIGURE 22 FIGURE 23
• Pull the 2310 brine float assembly out of the brine well and disassemble the
retaining nut as shown in Figure 24 on the following page.
• Next, assemble the 2310 brine float assembly to the brine well through the pre-
drilled hole and hand-tighten as shown in figure 25 on the following page.
© 1999-2007 QualityWaterForLess.com - 8 - info@qualitywaterforless.com
