66
④

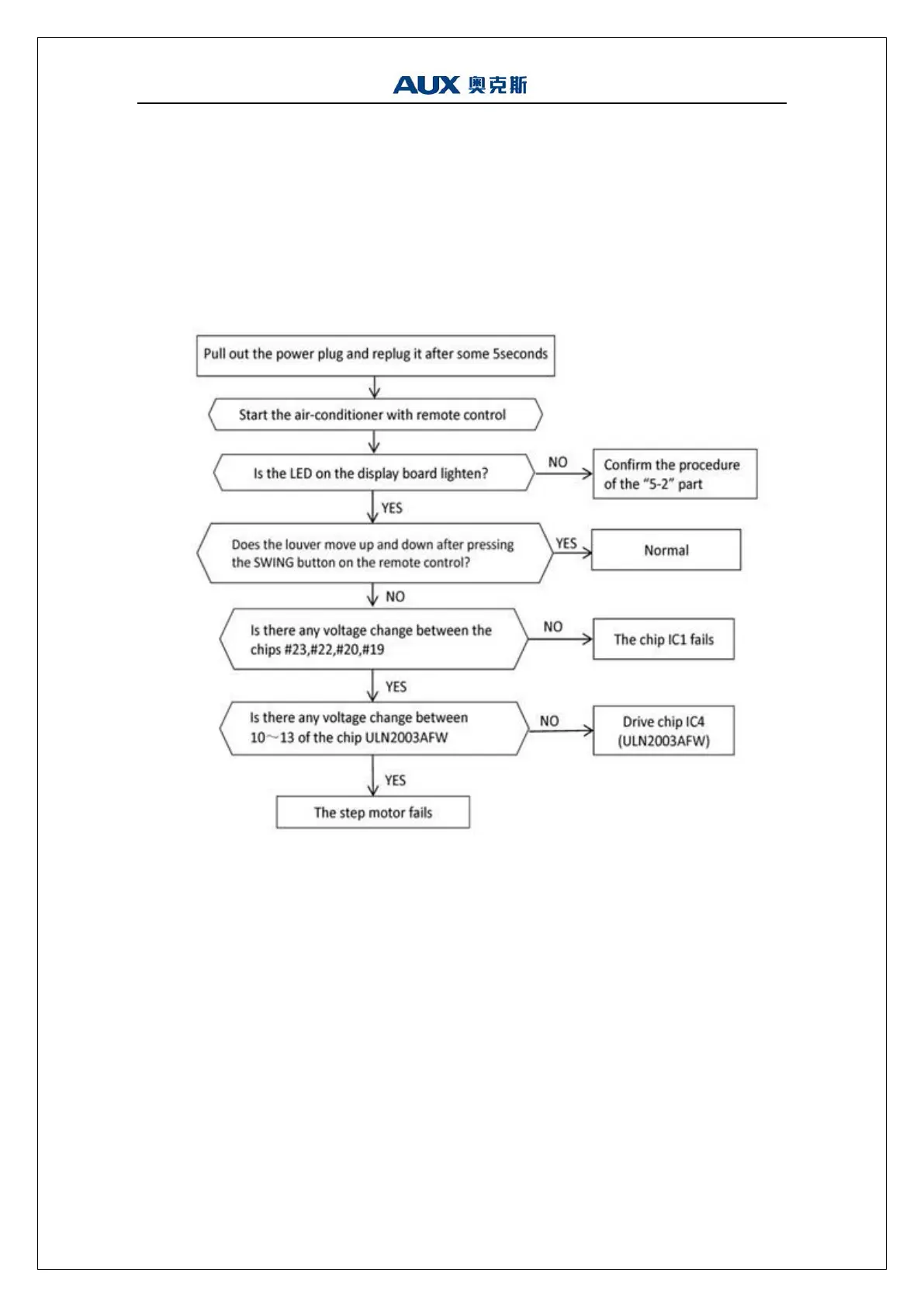

The Step Motor
Does Not W
ork
(1) Items
a) Check if the input voltage is correct?
b) Check if the step motor controlling the up-down movement firmly connected to
Cn2?
(2)
T
rouble shooting procedure
68
70
Table of Contents
Default Chapter
3
Table of Contents
3
1 Summary
4
Appearance
4
Part I : Technical Information
4
Model List
5
2 Outline Dimension Diagram
6
The Following Data Is for Reference Only and the Actual Size May Vary
6
3 Function and Control
8
K-Style
13
4 Refrigerant System Diagram
14
Cooling Only
14
Cooling & Heating
15
5 Electrical Part
17
Part II : Installation and Maintenance
19
6 Main Tools for Installation and Maintenance
20
7 Installation
20
Notes for Installation
20
Installation of Indoor Unit
21
Installation of Outdoor Unit
24
Check after Installation and Test Operation
27
8 Maintenance
29
Troubleshooting Guide
29
Display Error Code of Outdoor Unit's Indicator Lights
63
Troubleshooting for Normal Malfunction
65
9 Exploded Views and Parts List
72
Indoor Unit
72
Outdoor Unit
74
10 Removal Procedure
76
Indoor Unit
76
Outdoor Unit
81
Appendix
91
AUX Common Sensor R-T Analysis Table
91
