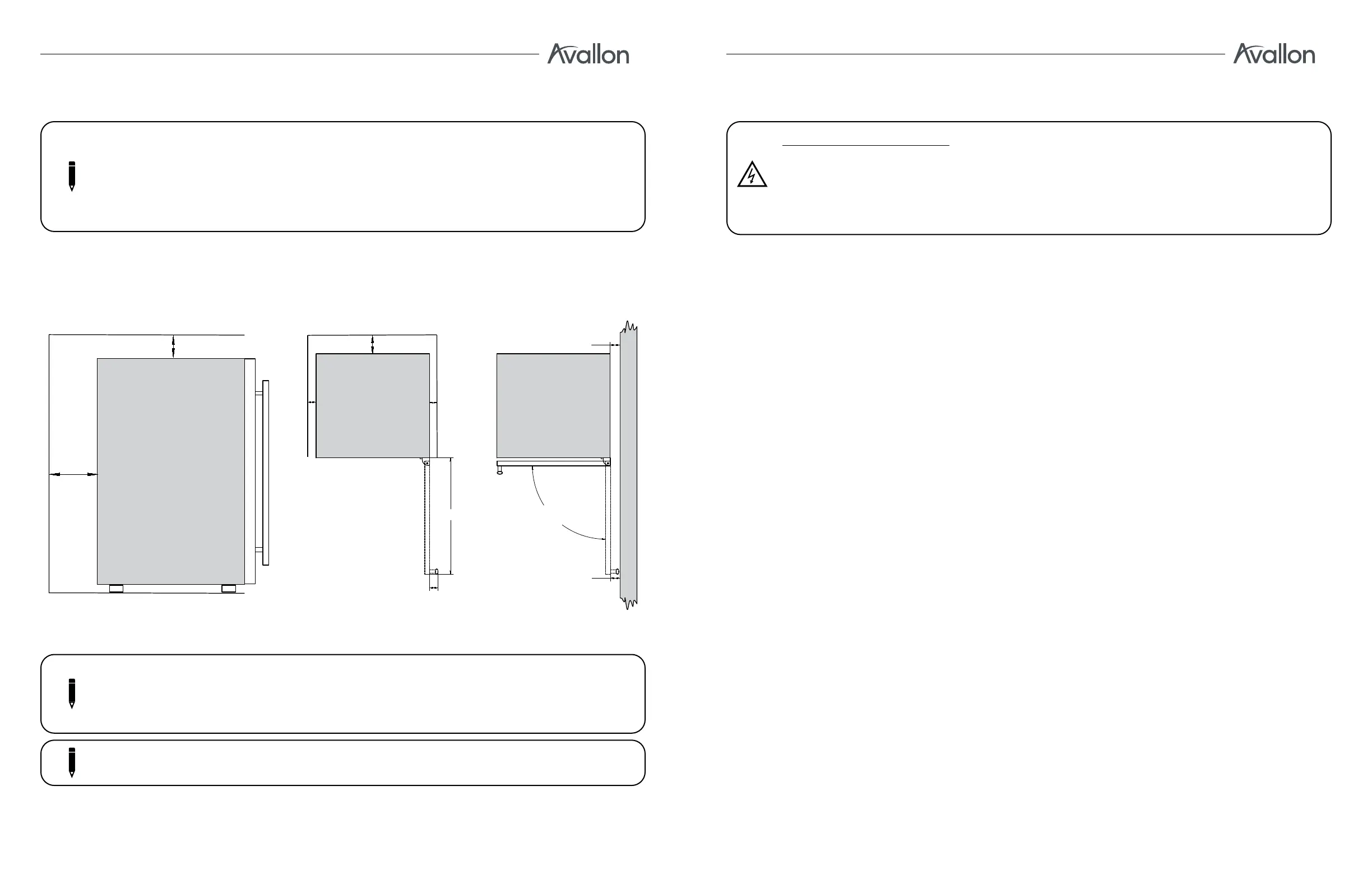

Clearance Requirements
When installing the ice maker under a counter, follow the recommended spacing dimensions shown.
To ensure proper service access and ventilation, allow at least 2” of clearance at the back, 1/4” at the top,
and 1/4” at the sides. The installation should allow the unit to be pulled forward for servicing, if necessary.
Note: The ice maker should be installed on a firm and level surface that will be able to
support the entire weight of the unit. It is important for the ice maker to be level in order to
work properly. If needed, you can adjust the height of the ice maker by rotating the feet. See
the “Leveling the Ice Maker” section.
Note: A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance
with National Electrical Code and local codes and ordinances, is required.
Notes:
• To ensure proper service access and ventilation, at least 2 inches of clearance at the
back as shown in the diagram.
• The installation should allow the unit to be pulled forward for servicing, if necessary.
• A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance
with National Electrical Code and local codes and ordinances, is required.
Top ViewSide View
2”
90�
W
A
L
L
Door Swing
1/4”
1/4”
1/4”
2”
14-3/4”
1-3/4”
1-3/4”
1-3/4”
ELECTRIC SHOCK HAZARD!
• Plug into a grounded 3-prong outlet.
• Never remove the grounding prong from the plug.
• Never use an adapter to bypass the grounding prong.
• DO NOT use an extension cord.
• Failure to follow these instructions can result in fire, electrical shock, or death.
Electrical Requirements
Recommended Grounding Method
Before you move your ice maker into its final location, it is important to make sure you have the proper
electrical connection:
• A standard electrical supply (115 V, 60Hz), properly grounded in accordance with the National
Electrical Code and local codes and ordinances, is required.
• It is recommended that a separate circuit, serving only your ice maker, be provided. Use
receptacles that cannot be turned o by a switch or pull chain.
• The fuse (or circuit breaker) size should be 15 Amps.
For your personal safety, this appliance must be grounded. It is equipped with a power supply cord that
has a 3-pronged grounding plug. To minimize possible shock hazard, the cord must be plugged into a
mating 3-pronged wall socket, and grounded in accordance with the National Electrical Code and local
codes and ordinances. If a mating wall socket is not available, it is the personal responsibility of the
customer to have a properly grounded, 3-prong wall receptacle installed by a qualified electrician.
