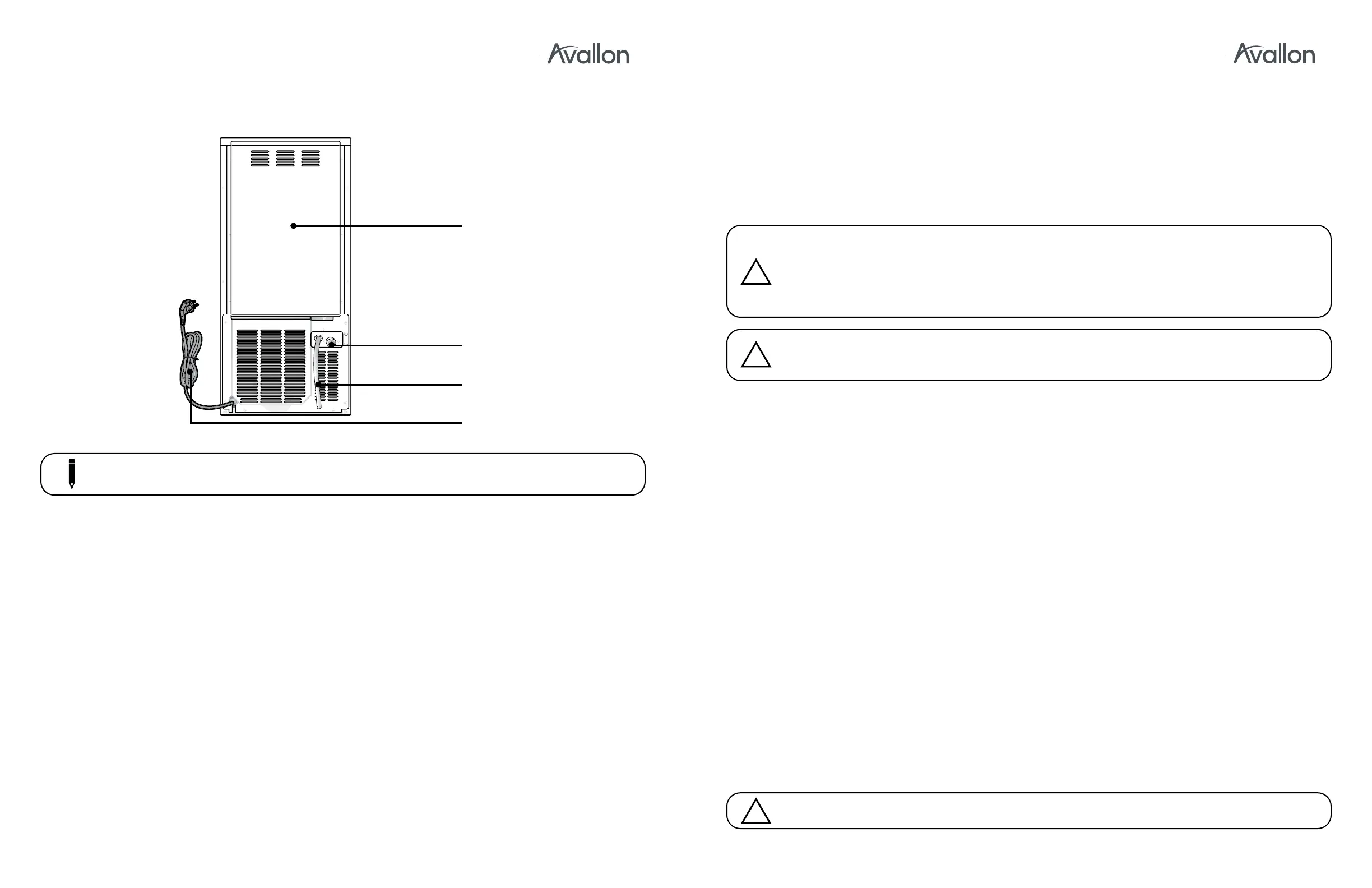

Back View:
Back Panel
Water Inlet
Drain Hose
Note: Drawings are for illustration purposes. Your unit may dier slightly.
!
Warning: Do not remove any safety, warning, or product information labels from your ice
maker.
Installation
The ice maker should be installed by a licensed plumber in accordance with local electrical and
plumbing code requirements. The ice maker should also be placed in a location that is strong enough
to support its total weight. Before you plug the ice maker into a power supply, be sure to let it stand
upright for at least 24 hours to allow the compressor’s oils to settle.
Unpacking the Ice Maker
Warning: Use two or more people to move and install the ice maker. Failure to do so
can result in back or other injury. Carefully remove the packaging materials. Remove any
shipping tape and glue from your ice maker before use. Do not use sharp instruments,
rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your ice maker.
!
Warning: DO NOT install the ice maker behind a closed cabinet door.
!
This ice maker has been designed for freestanding or built-in installation. In each case, there must be
adequate ventilation and access for service. Install the unit in a location where the ambient temperature
is above 50°F and below 100°F.
Freestanding Installation:
A freestanding installation will allow you to install the ice maker in almost any place you desire. You must
follow the stated instructions for electrical requirements and leveling the ice maker.
Built-in Installation:
A built-in installation will allow you to install the ice maker under a counter as long as the required
clearance space around the ice maker is provided. It is necessary to allow adequate ventilation space
around the unit, including at the back of the unit.
The following additional items must be observed:
1. Place the ice maker in front of the installation location. Adjust the feet and level the unit so it sits
properly on the floor or on a platform depending on your installation requirements.
2. The water supply line must be plumbed before connecting it to the ice maker. Install the drain line
into your drain.
3. Turn on the main water supply and tap. Check for water leaks at all connections.
4. If the electrical outlet for the ice maker is behind the cabinet, plug in the ice maker.
5. Push the ice maker into position.
