Avalon Pendleton 745 - Firebox Parts; Floor & Side Firebrick Removal & Replacement

Maintaining Your Appliance 33
Travis Industries 93508133 4060417

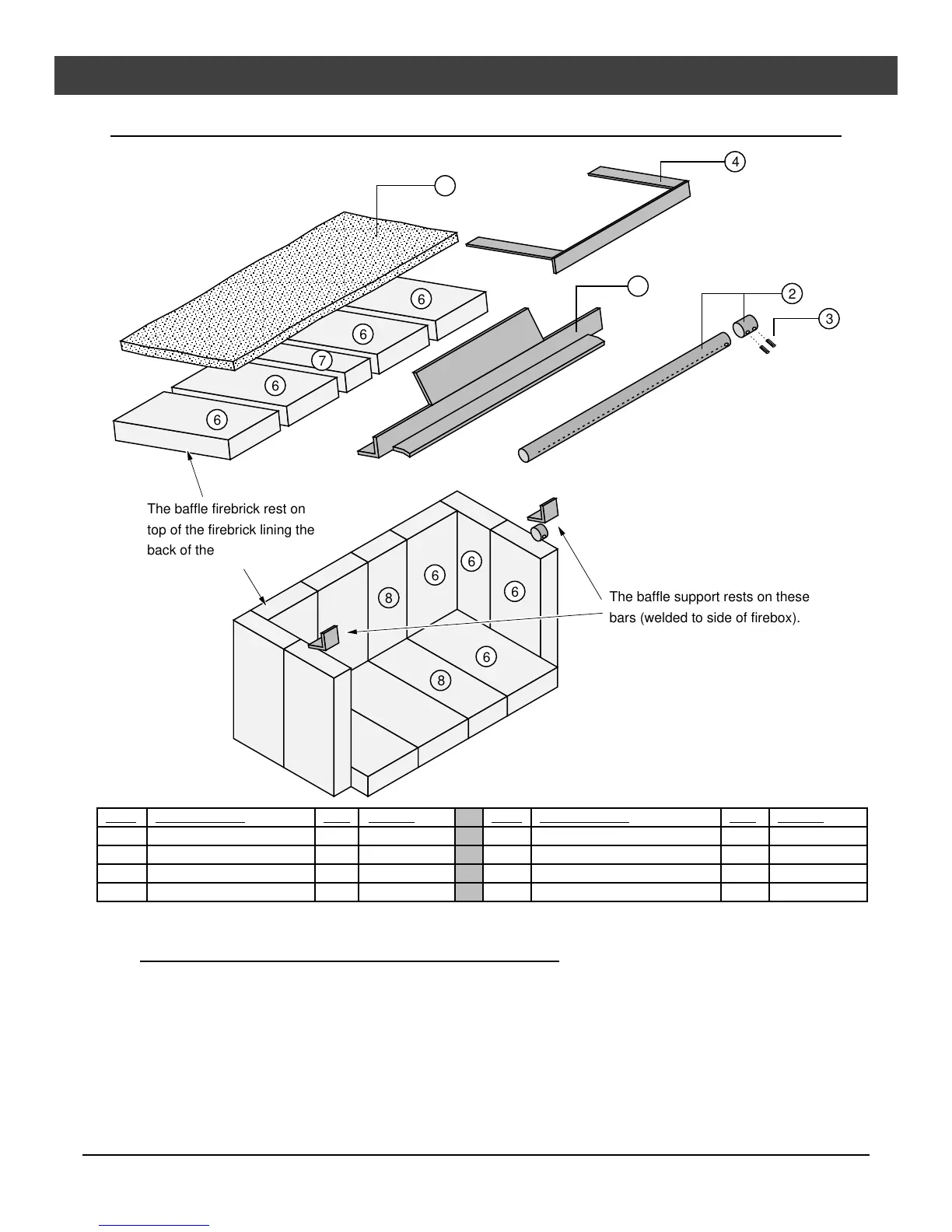

Firebox Parts
1
5
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAA
AAAAA
2
3
4
6
6
6
6
7
8
8
6
6
6
6
The baffle support rests on these
bars (welded to side of firebox).
The baffle firebrick rest on
top of the firebrick lining the
back of the firebox.
ID # Description Qty Part # ID # Description Qty Part #
1 Baffle Support 1 98900305 2 Air Tube with Sleeve 1 98900206
3 Air Tube Pins (6) 2 98900353 4 Blanket Weight 1 98900319
5 Kaowool Baffle Blanket 1 98900318 6 Brick - 9" x 4.5" (box of 9) 14 99900102
7 Brick - 9" x 2.25" 1 251-00001 8 Brick - 9" x 3.875" 2 251-00002
Floor and Side Firebrick Removal & Replacement
Do not pry firebrick - they chip and crack easily. Remove the floor firebricks first. The
side firebrick are removed later because they are pinned in place by the floor firebrick. Clean the
firebox prior to replacing the firebrick.
