Avalon Pendleton 745 - Floor Protection Requirements

8 Stove Installation (for qualified installers only)
Travis Industries 93508133 4020509

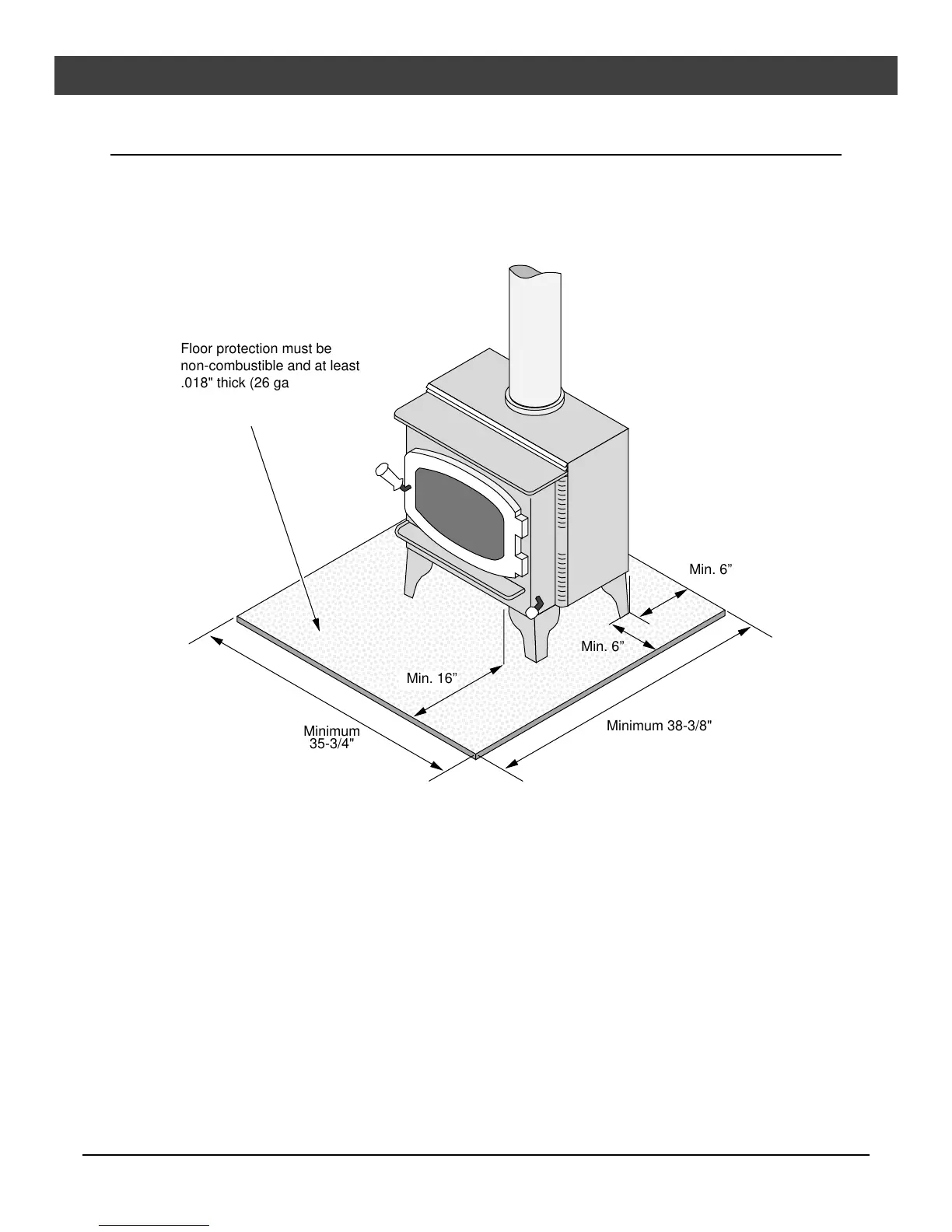

Floor Protection Requirements
• Stove must be placed on the Travis Industries legs or Pedestal.
• Must be non-combustible and at least .018" thick (26 gauge)
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
Minimum
35-3/4"
Minimum 38-3/8"
Min. 16”
Min. 6”
Min. 6”
Floor protection must be
non-combustible and at least
.018" thick (26 gauge).
