Avalon Pendleton 745 - Baffle Removal and Replacement; Air Tube Removal and Replacement

34 Maintaining Your Appliance
Travis Industries 93508133 4020509

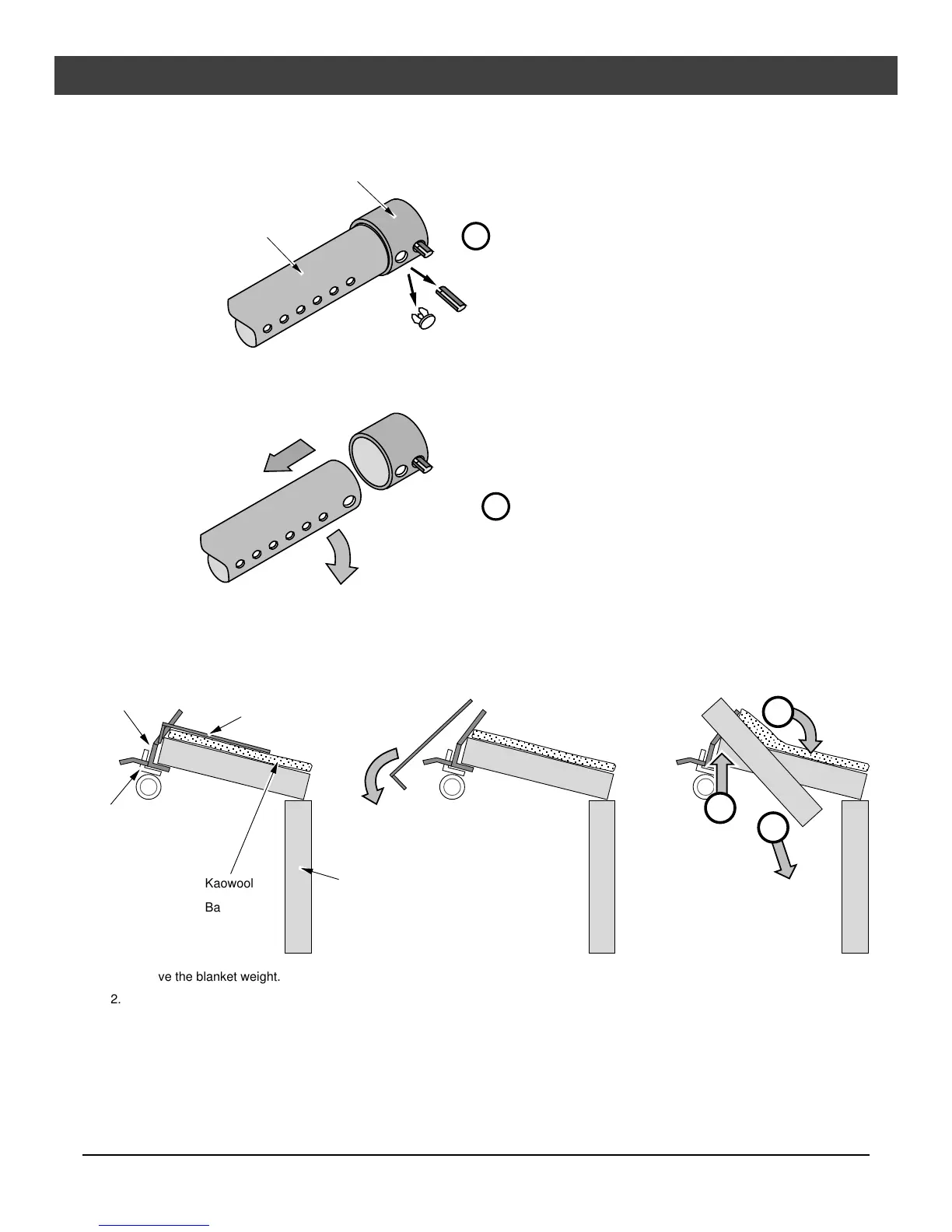

Air Tube Removal & Replacement
a
b
Remove the left pin on the air tube collar
(it may be a roll pin or push pin).
Air Tube Collar
Air Tube
Push Pin
Slide the air tube to the left, swing it
down and remove from the firebox.
Roll Pin
Baffle Removal & Replacement
Baffle Support
AAAAA
AAAAA
Kaowool
Baffle
Blanket
These “L” bar tabs
are welded to the
side of the firebox.
Blanket Weight
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
a
b
c
1. Remove the blanket weight.
2. Remove the side baffle firebrick by lifting from below and rotating out (try not to damage the kaowool blanket).
3. Slide the blanket out to the side.
4. Slide the center firebrick to the side and remove.
5. Remove the baffle support by feeding it through the space between secondary air tube and the door.
REPLACEMENT INSTRUCTIONS: Follow the instructions in reverse order. Make sure the front baffle support is properly aligned
Baffle Firebrick
Firebrick
(lining back of firebox)
