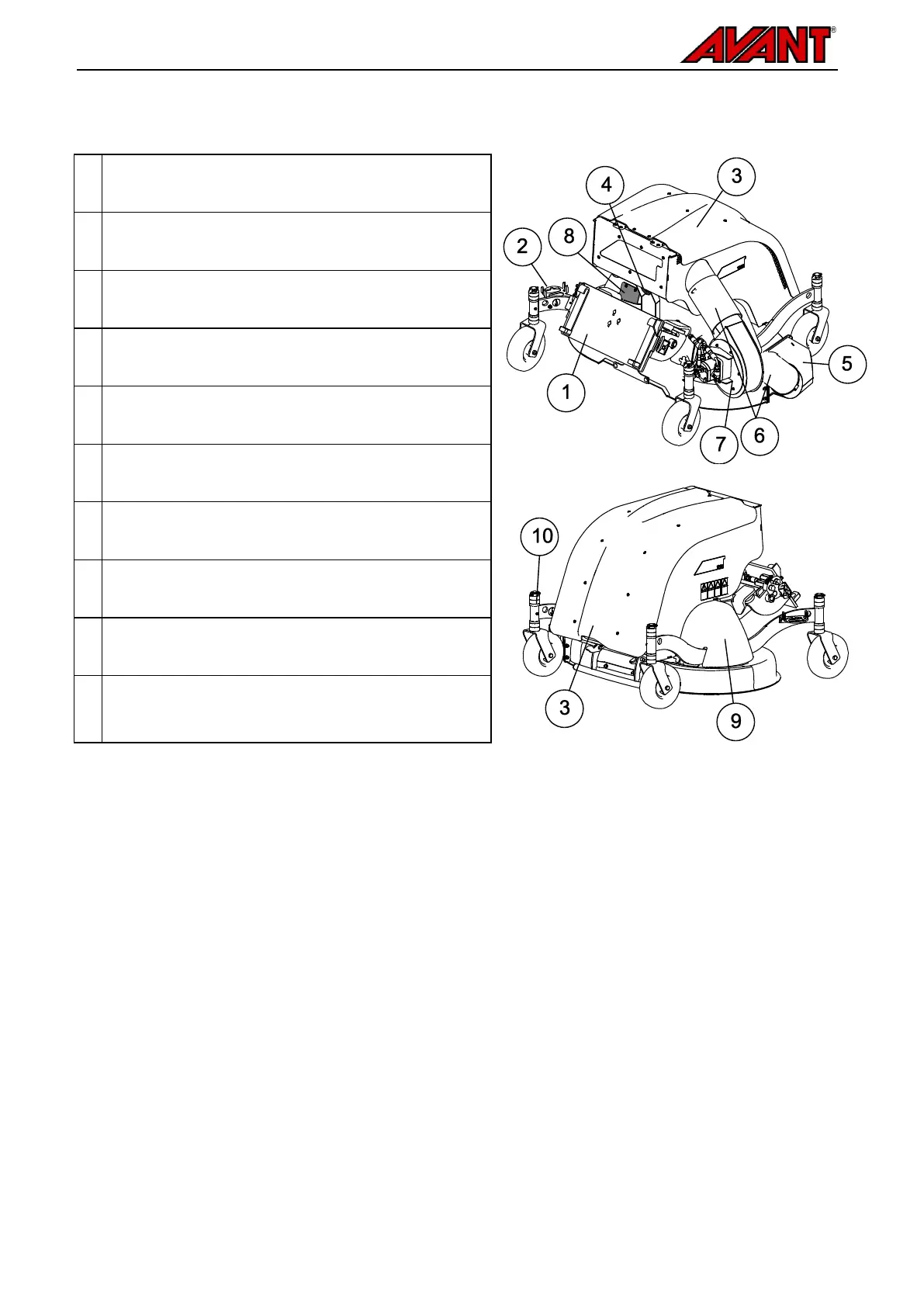

Table 4 - Main components of the Collecting Lawn Mower 1200
1
Frame with quick coupling brackets
2
Multiconnector holder
3
Collector box hatch
4
Collector box locking screw (unlock for maintenance)
5
Collector nozzle
6
Collector tubes
7
Collector fan
8
Collector fan shut off valve
9
Protective cover
10
Support wheels, adjustable (4 pcs)
