7.4 Checking and tightening the drive belt

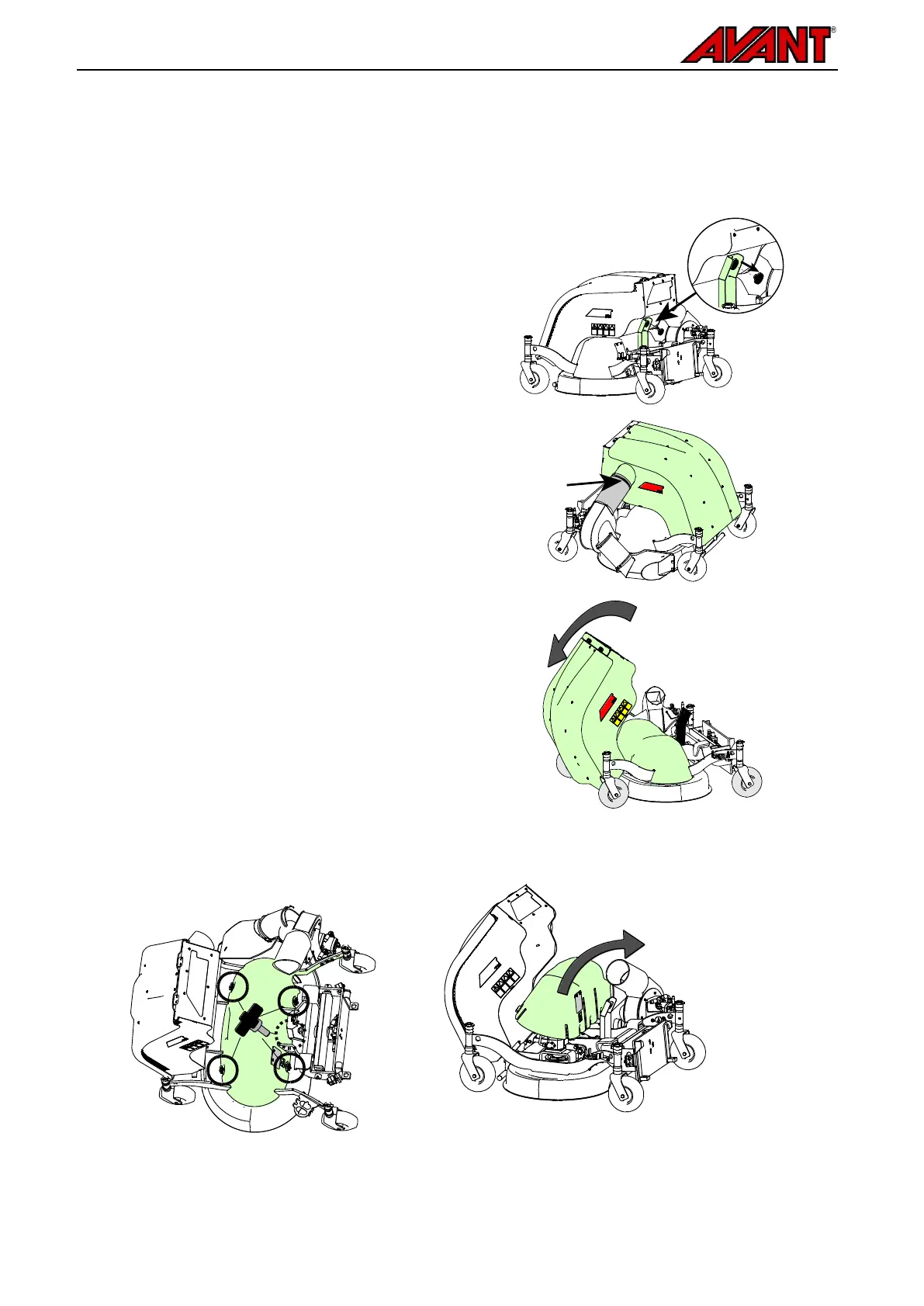

To access the belt drive, tilt the collector box aside and open cover:
1.
Remove the hand operated nut from rear side of
the collector box
Make sure the collector is emptied beforehand
2.
Unfasten the upper collector tube from the
collector box
3.
Tilt the collector box forward in controlled manner
1.
To access the belt, unfasten the 5
screws holding the cover in place.
2.
Lift the cover away.
