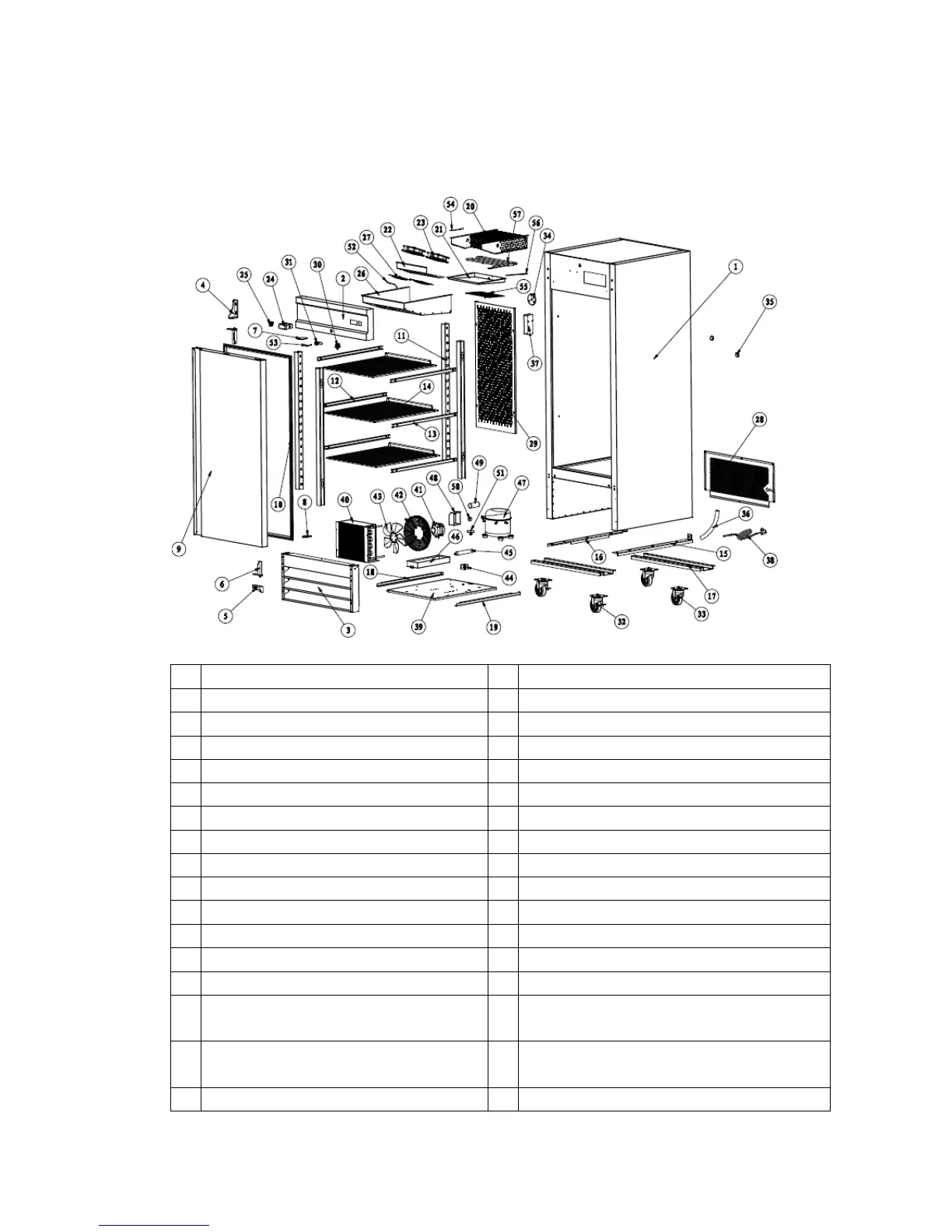

1. EXPLODED VIEW AND PARTS LIST
1.1 CFD1 series
1 CABINET: N/A 30 DOOR SWITCH: 17817409
2
CONTROL PANEL ★★
31 LOCK: 17813009
3 FRONT GRILL 32 4" CASTOR WITH BRAKE: 17816412
4 UPPER RIGHT HINGE: 178HINGCFDTR 33 4" CASTOR: 17819301
5 BOTTOM RIGHT HINGE:178HINGCFDBR 34
DRAIN PLUG ★★
6 SPRING HINGE: 178CARTRIDGE 35 FOAMING HOLE COVER: N/A
7 TOP COVER FOR REVERSIBLE DOOR 36 DRAIN HOSE
8 BOTTOM COVER FOR REVERSIBLE DOOR 37 LIGHT COMPONENTS: 17819014
9 DOOR: 17815080 38 POWER CORD: 17810175
10 GASKET: 178GSKT11571 39 COMPRESSOR UNIT INSTALLATION BOARD: N/A
11 BRACKETS: 17818644 40
CONDENSER: 17815157 or (17818779 ★)
12 LEFT SHELF TRACK: 178SHELFRAIL 41 CONDENSER FAN MOTOR: 17814905
13 RIGHT SHELF TRACK: 178SHELFRAIL 42 CONDENSER FAN COVER: 1785467
14 SHELF: 178SHELFCFD 43 CONDENSER FAN MOTOR BLADE: 17811089
15
RIGHT CONNECTING BOARD FOR CASTER
★★
44
FILTER FIXER: N/A
16
LEFT CONNECTING BOARD FOR CASTER
★★
45
FILTER: 970C032CAPT
17
LEG SUPPORTER ★★
46 OUTER DRAIN PAN: 17816356
