Avdel 07530 - Page 33

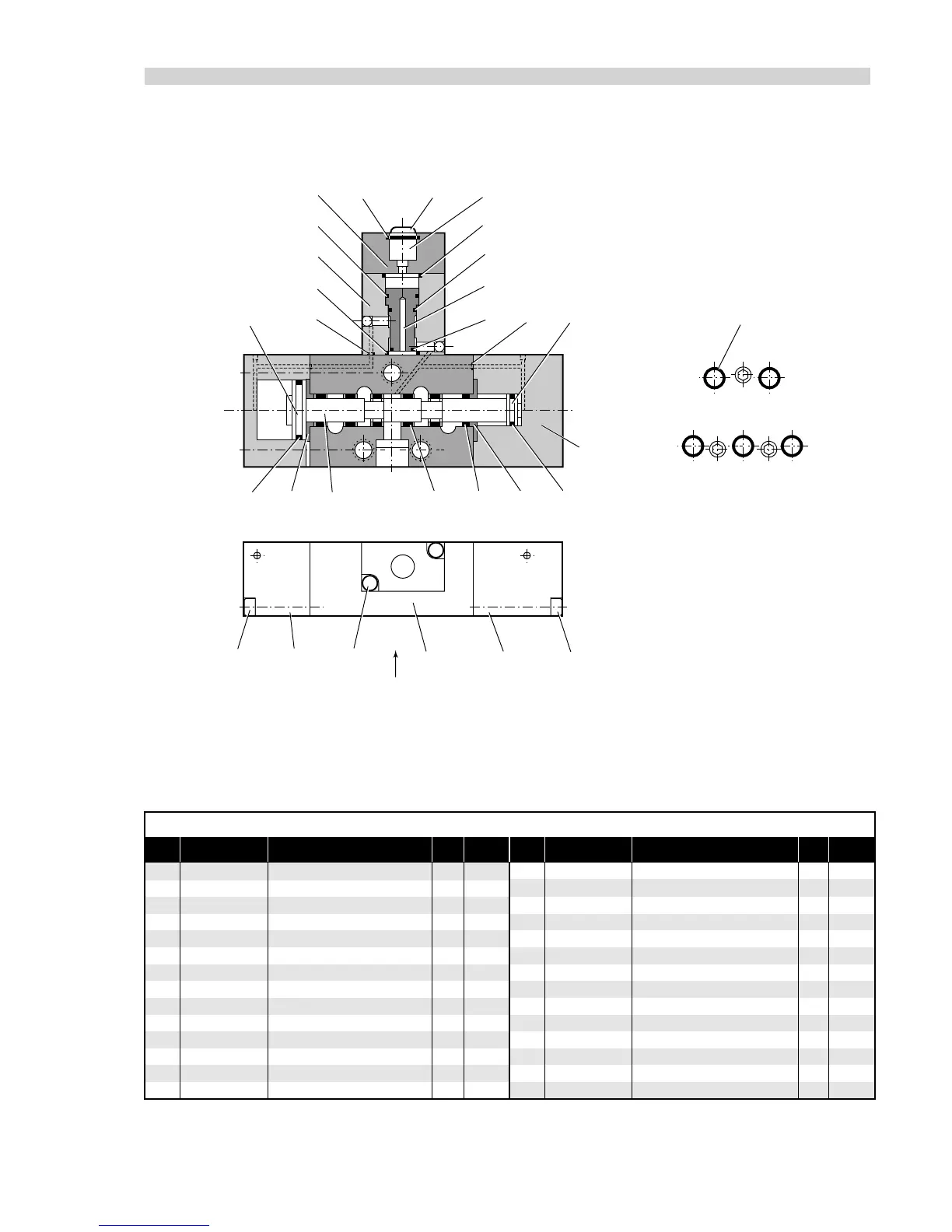

PILOT VALVE 07005-00590
25 24
12
11
10 3
27
4
5612
8141517916
18
7
19
6
10
23 22 2126
VIEW ON ARROW 'A
'
INTERFACE 'O' RING
S
'A'
4
20
13
31
* Together these items make up a Service Kit for the valve with the addition of one CENTOPLEX 2 tube of grease, the kit is available
from Avdel, part number 07005-01538.
1 07005-00599 * 'O' RING - -
2 07005-00598 * PLASTIC COLLET - -
3 07003-00204 * 'O' RING 1 -
4 07003-00103 * 'O' RING 6 -
5 07003-00042 * 'O' RING 1 -
6 07003-00121 * 'O' RING 4 -
7 08005-00127 * 'O' RING 1 -
8 07003-00105 * 'O' RING 6 -
9 07003-00178 * 'O' RING 1 -
10 07003-00017 * 'O' RING 2 -
11 - PISTON 1 -
12 - PISTON 1 -
13 07005-00590 VALVE ASSEMBLY - -
14 - WASHER 1 -
ITEM PART Nº DESCRIPTION QTY SPARES
07005-00590 VALVE PARTS LIST
15 - SPACER 5 -
16 - SPOOL 1 -
17 - WASHER 1 -
18 - PISTON 1 -
19 - BODY 1 -
20 - TOP CAP 1 -
21 - SCREW 2 -
22 - END CAP 1 -
23 - BODY 1 -
24 - SCREW 2 -
25 - END CAP 1 -
26 - SCREW 2 -
27 - CARTRIDGE 1 -
ITEM PART Nº DESCRIPTION QTY SPARE
S
