6
A I R S U P P L Y

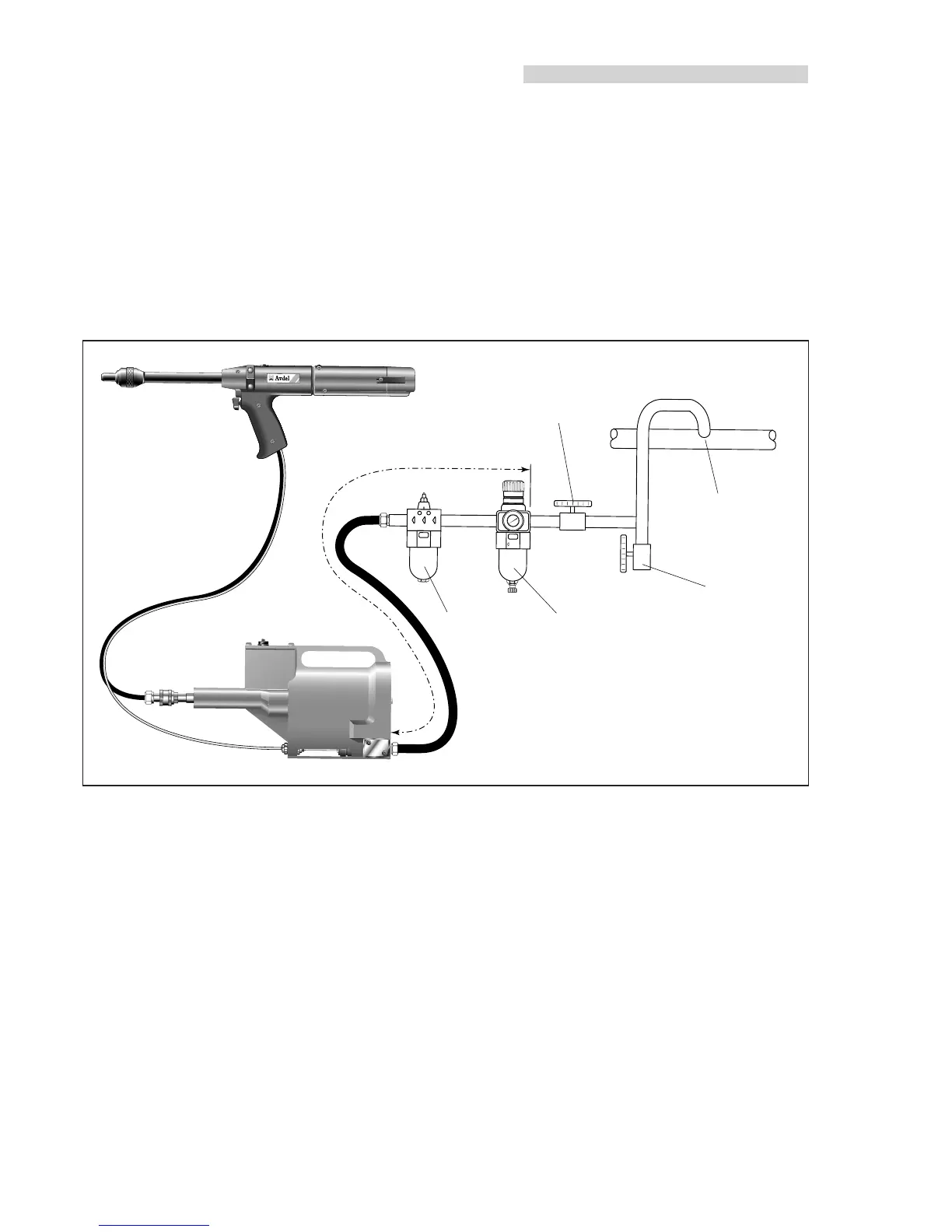

All tools are operated with compressed air at an optimum pressure of 5.5 bar. We recommend the use of pressure regulators and
automatic oiling/filtering systems on the main air supply. To ensure maximum tool life and minimum tool maintenance they should be
fitted within 3 metres of the tool (see diagram below).
Air supply hoses should have a minimum working effective pressure rating of 150% of the maximum pressure produced in the system
or 10 bar, whichever is the highest. Air hoses should be oil resistant, have an abrasion resistant exterior and should be armoured where
operating conditions may result in hoses being damaged. All air supply hoses MUST have a minimum bore diameter of 6.4 millimeters
or
1
/
4
inch.
Read servicing daily details page 20.
P
U T T I N G I N T O S E R V I C E
Follow the steps below when connecting the tool to the intensifier and main air supply:
Push and turn the end of the larger hose from the tool into the quick release connector on the end of the intensifier.
Push the smaller hose from the tool into the plastic collet of the bulkhead connector on the front face of the intensifier.
Fit a hose between the male connector at the rear of the intensifier and the main air supply.
■
■
■
0753
T
Y
P
E
8
6
4
2
0
10
12
14
16
TAKE OFF POINT
FROM MAIN SUPPLY
STOP COCK
(USED DURING MAINTENANCE
OF FILTER/REGULATOR
OR LUBRICATION UNITS)
MAIN SUPPLY
DRAIN POINT
PRESSURE REGULATOR
AND FILTER
(DRAIN DAILY)
LUBRICATOR
3
M
E
T
R
E
S
M
A
X
I
M
U
M
