Avdel HP21 - Combination Valve Assembly and Parts List

16

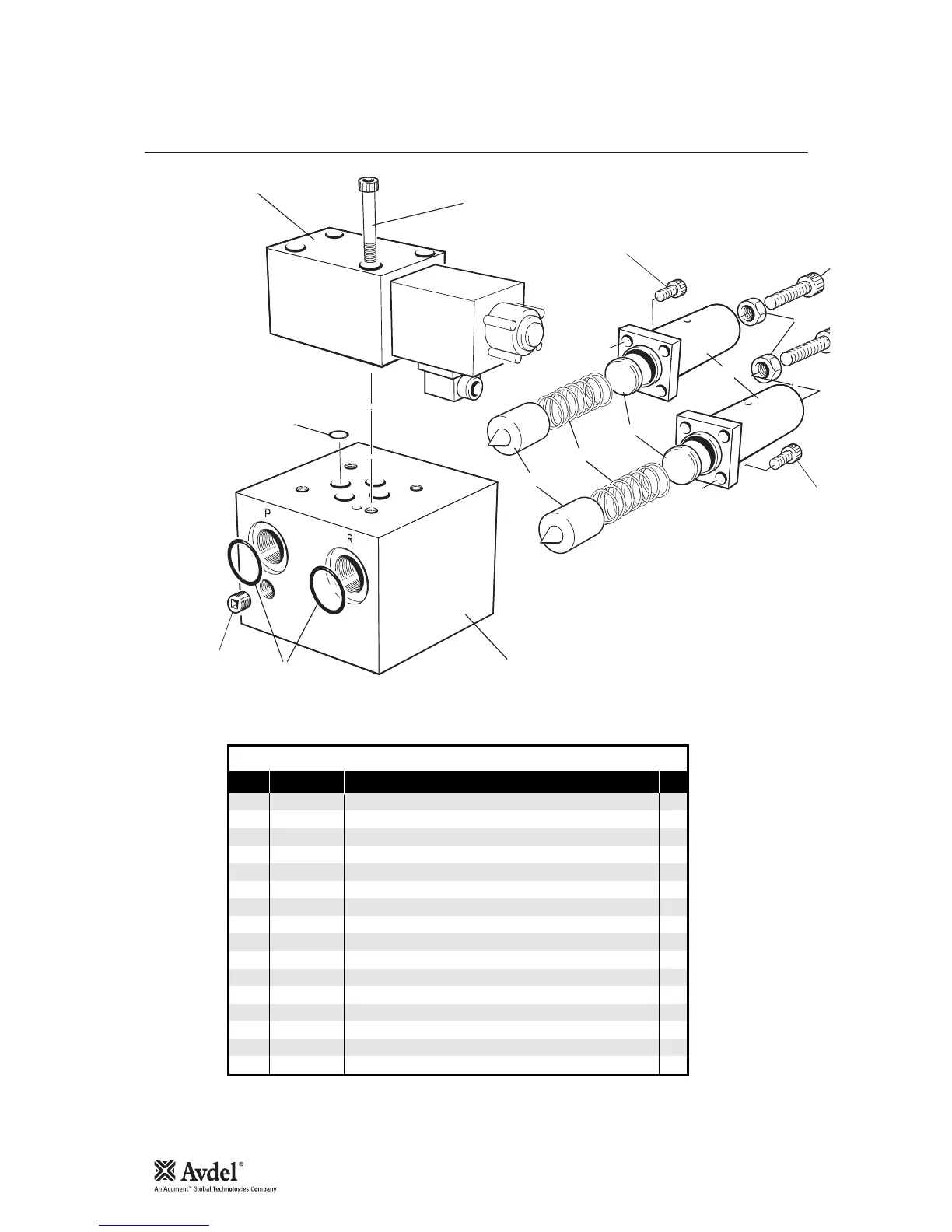

Ge ne ral A sse mb ly
an d Par ts Li st fo r Com bi nat io n Va lv e
COMBINATION VALVE
ASSEMBLY
112
111
113
103
1
0
102
101
105
106
107
109
110
115
108
114A 12Vdc
114B 24Vdc
DIRECTIONAL VALVE
ASSEMBLY
ITEM PART Nº DESCRIPTION QTY
COMBINATION VALVE PARTS LIST
101 C116 DIRECTIONAL VALVE 1
102 CS26 SOCKET HEAD CAP SCREW 4
103 CS12 SOCKET HEAD CAP SCREW 8
104 CS34 SOCKET HEAD CAP SCREW 2
105 XN014 HEXAN NUT 2
106 CO41 SPRING DOME 2
107 CO42 BEARING PAD 2
108 CO40 SPRING 2
109 CO44 PLUNGER 2
110 CO43 VALVE BODY & SEAT 1
111 R210 'O' RING 2
112 MS01 PLUG 1
113 R 'O' RING 4
114A CO26 DIRECTIONAL VALVE ASSEMBLY 12V DC 1
114B CO25 DIRECTIONAL VALVE ASSEMBLY 24V DC 1
115 CO27 VALVE COMBINATION ASSEMBLY 1
