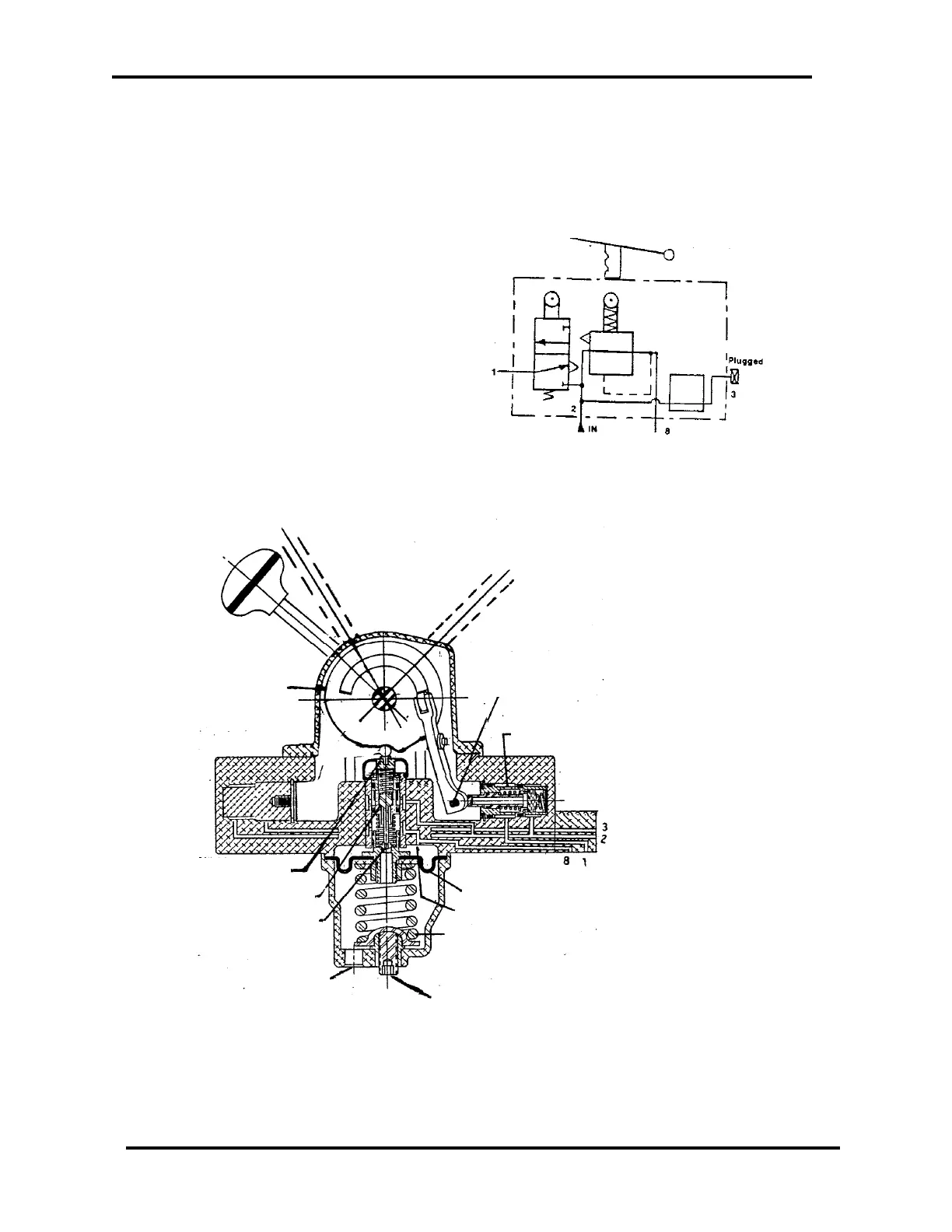

DIAGRAMMATIC VIEW
ME-2 Controlair Valve
Valve Symbol
Exhaust Port
Adjust Screw
Range Control Spring
Exhaust Valve
Supply Valve
Inlet & Exhaust Valve Unit
LEGEND PIPE BRACKET
2 - SUPPLY-IN
8 - GRADUATED-DELIVERY
1 - SIDE VALVE-DELIVERY
3 - PLUGGED
Diaphragm
Sensing Port Orifice
Off
Dual Cam
Clutch
Full Travel
Side Valve (3-Way)
Adjusting Screw
