AVer AVerVision F17-8M User Manual

7
Name
Function
(18)
(14)
(11)
(7)
(8)
(5)
(2)
(1)
(22)
(13)
(4)
(3)
(15)
(12)
(17)
(23)
(20)
(19)
(9)
(6)
(16)
(10)
(21)

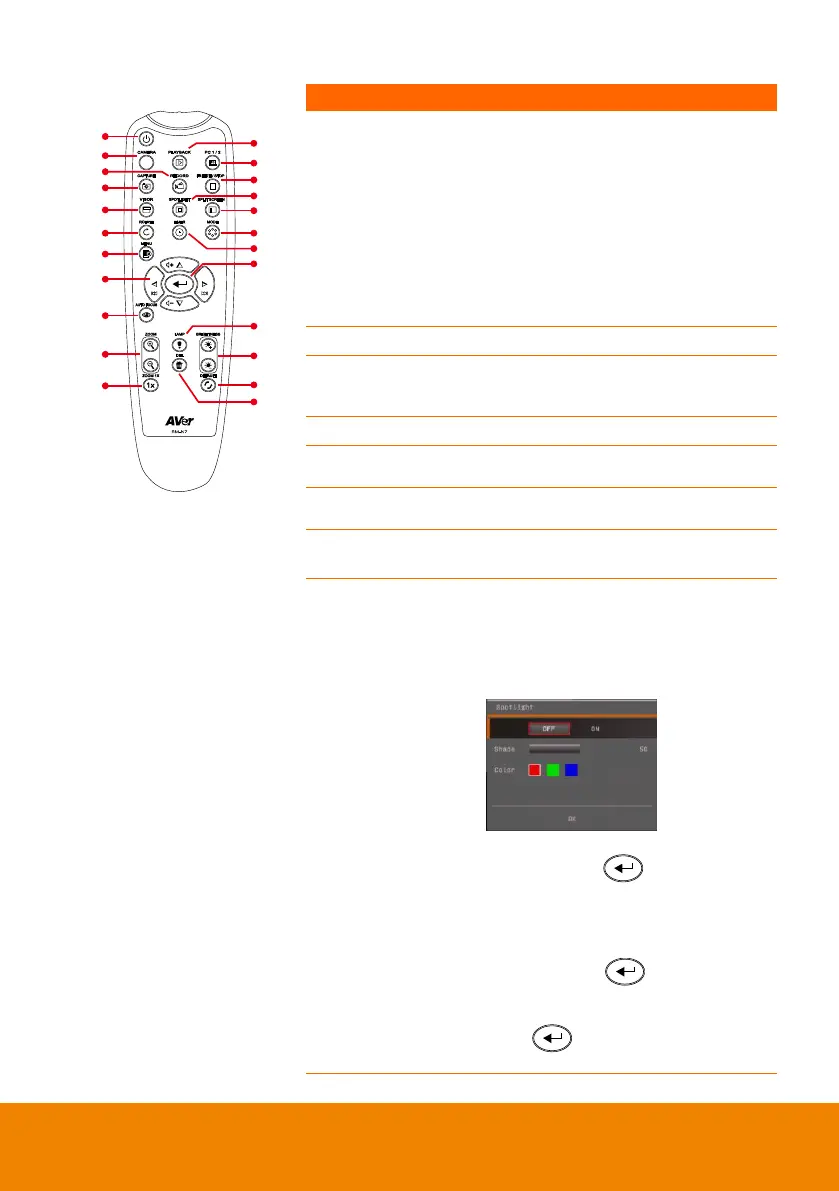

(fig. 1.6)
(8) ▲,▼,◄, & ►
- Pan and zoom-in image (above digital
zoom level) in both live and playback
mode.
- Select options in OSD menu.
- Use ▲&▼ to increase and decrease
the video playback volume.
- Use ◄&► to play the video
backward and forward.
- Move the Spotlight frame and Visor
screen cover.
(9) AUTO FOCUS
Adjust the focus automatically.
(10) ZOOM +/-
Increase/decrease the image
magnification in camera and picture
playback mode.
(11) ZOOM RESET
Reset zoom level to 100%.
(12) PLAYBACK
View the captured picture/video from
the memory in 16-thumbnail images.
(13) PC 1/2
PC mode displays the video signal
from the RGB INPUT port of F17-8M.
(14) FREEZE /
STOP
- Freeze live images.
- Stop video playback.
(15) SPOTLIGHT
Call the Spotlight submenu. Spotlight
overlays a box frame on the
presentation screen. You can adjust the
box size and move it around.
In the Spotlight submenu, the following
options are available.
ON/OFF
– select to run/cancel the
Spotlight. Press to move to the
next selection.
Shade
– set the opacity level of the area
outside the box. The shaded area will
completely turns black when it is set to
level 100. Press to move to the
next selection.
Color
– select the Spotlight frame color.
Press to move to the next
selection.

AVer AVerVision F17-8M Specifications

General

Sensor type	CMOS
Image freeze	Yes
White balance	Auto, Manual
Maximum frame rate	30 fps
Optical sensor size	1/3.2 \
Maximum video resolution	1920 x 1080 pixels
Effective sensor resolution	8 MP
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1920 x 1080 (HD 1080)
Digital zoom	16 x
Shooting area (WxD)	580 x 326 mm
AC input voltage	100-240 V
Operating voltage	12 V
Power supply type	DC
AC input frequency	50 - 60 Hz
Power consumption (typical)	12.8 W
Interface	USB 2.0
USB connector type	Mini-USB, USB Type-A
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64
Lamp type	LED
Control type	Buttons
Photo effects	Black&White, Mirror, Negative film, Split screen
Product color	Black
Camera movement	Manual
Cables included	Composite, Mini-USB, VGA
Compatible memory cards	SDHC
Maximum memory card size	32 GB
Memory capacity (images)	80
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	380 mm
Width	200 mm
Height	525 mm
Weight	2500 g
Dimensions folded (WxDxH)	230 x 305 x 73 mm
